551 M (1692320) - Simplicity 20" Snow Thrower, 5hp (SN: 10000 & Below) Auger Housing & Chute (S/N 10,000/20,000 and Below) Parts Diagram

20" Snow Thrower, 5hp

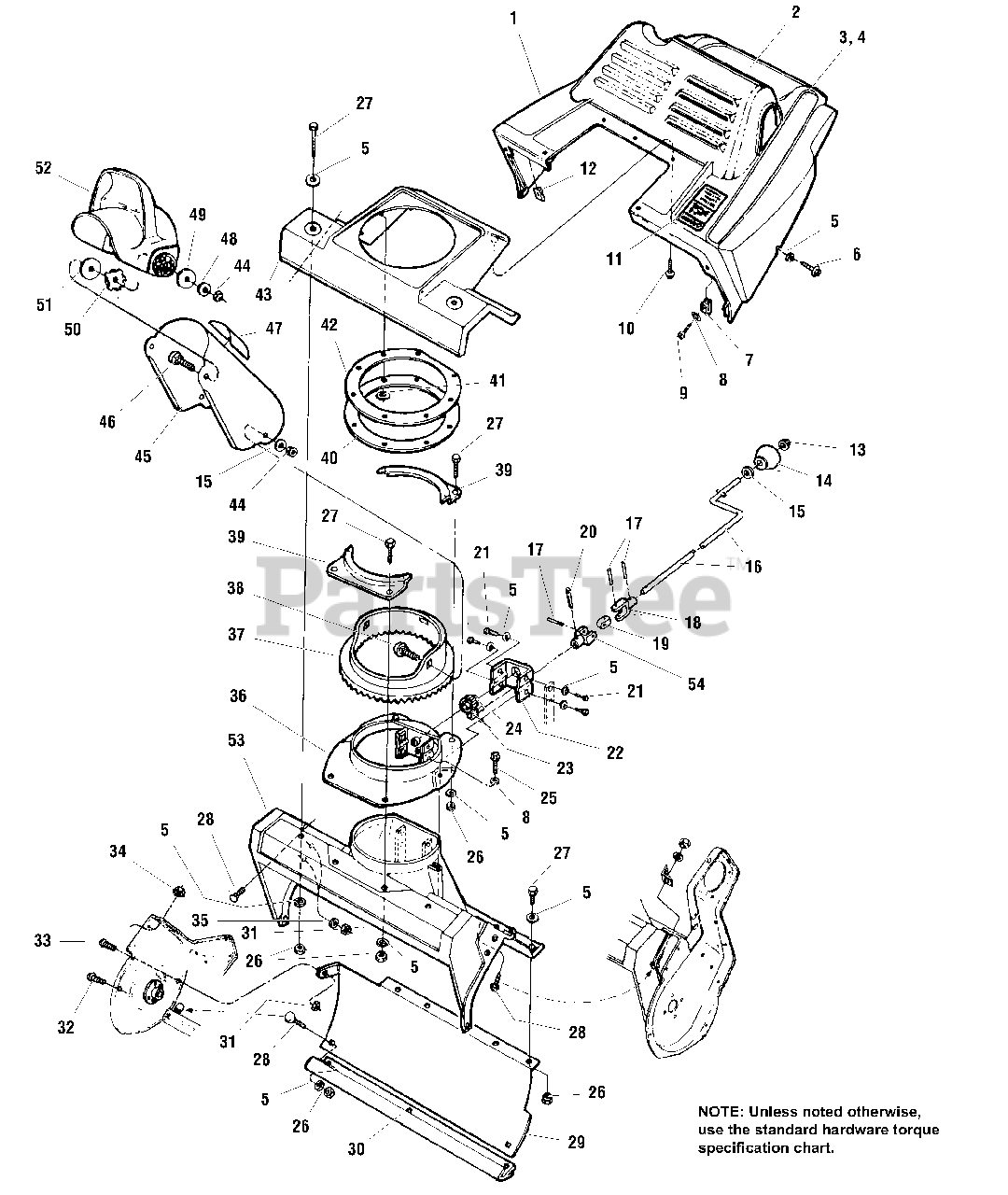

Auger Housing & Chute (S/N 10,000/20,000 and Below) Parts Diagram

  • Title

1

Simplicity 1714580

COVER, Engine

$

$

Not available

2

Simplicity 1714616

DECAL, Console (Electric Start)

$

$

Not available

3

Simplicity 1714979

DECAL, Logo RH

$

$

Not available

4

Simplicity 1714980

DECAL, Logo LH

$

$

Not available

5

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1960001SM

SCREW, Thread Forming, #10 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 1714619

CLIP, #10

$

$

Not available

8

Simplicity 1910531SM

WASHER, Flat #10

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1714617SM

SCREW, Hex, #10-16 x 1-1/2

$

$

Not available

10

Simplicity 1960001SM

SCREW, Thread Forming, #10 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 1716532SM

DECAL, Danger, Auger

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1675072

CLIP

$

$

Not available

13

Simplicity 1932718SM

PAL NUT, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

14

Simplicity 1714581

KNOB, Chute Rotate Handle

$

$

Not available

15

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 5

0

16

Simplicity 1714588SM

HANDLE, Chute Rotate

$

$

Not available

17

Simplicity 1926228SM

PIN, Spiral, 5/32 x 1

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1686726SM

CLEVIS, U-joint

$25.99

$

Usually ships in 2-12 days

0

19

Simplicity 1686726SM

CONNECTOR, U-joint

$25.99

$

Usually ships in 2-12 days

0

20

Simplicity 1918452SM

PIN, Cotter, 1/8 Dia.
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

21

Simplicity 1927429SM

SCREW, Hex, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1714595

BRACKET, Gear

$

$

Not available

23

Simplicity 1716635SM

DRIVE, Gear

Note: For 551M (Serial No. 1 to 1750), and 551E (Serial No. 1 to 1761), order replacement kit Part No. 1686664 (includes Ref. Nos. 20, 23 & 54).

$11.99

$

In Stock, only 1 left!

0

24

Simplicity 1716636SM

GEAR, Idler

$9.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960001SM

SCREW, Plastite, #12-14 x 1
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1920397SM

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1923341SM

SCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

28

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

29

Simplicity 1714520

SCOOP

$

$

Not available

30

Simplicity 1716606SM

SCRAPER, Bar

$28.99

$

In Stock, Qty 8

0

31

Simplicity 1933896SM

NUT, Flange, 1/4-20
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 1933737SM

SCREW, Phillips, 10-24 x 5/8

$3.49

$

In Stock, only 2 left!

0

33

Simplicity 1926025SM

SCREW, Phillips, #10-24 x 7/16

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 2828372SM

NUT, Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

35

Simplicity 1910531SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1714596

PLATE, Chute Base

$

$

Not available

37

Simplicity 1716611SM

BASE, Chute

$20.99

$

Usually ships in 2-12 days

0

38

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1716625SM

RETAINER

$2.99

$

Usually ships in 2-12 days

0

40

Simplicity 1716625SM

RETAINER, Gasket

$2.99

$

Usually ships in 2-12 days

0

41

Simplicity 1934953SM

NUT, Push On

$3.49

$

In Stock, only 1 left!

0

42

Simplicity 1714518

GASKET, Chute

$

$

Not available

43

Simplicity 1714517

COWLING, Transition

$

$

Not available

44

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 1716612SM

CHUTE, Discharge

Note: (Includes DANGER Decal)

$86.99

$

Usually ships in 2-12 days

0

46

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

47

Simplicity 1722674SM

DECAL, Danger

$14.99

$

Usually ships in 2-12 days

0

48

Simplicity 1714522

WASHER, Belleville

$

$

Not available

49

Simplicity 1919326SM

WASHER, Flat 5/16

$4.49

$

In Stock, Qty 5

0

50

Simplicity 1716642SM

WASHER, Octagon

$4.99

$

In Stock, Qty 12

0

51

Simplicity 1716624SM

WASHER, Flat Rubber

$4.49

$

In Stock, Qty 6

0

52

Simplicity 1716631SM

DEFLECTOR, Chute

$

$

Not available

53

Simplicity 1714572SM

HOUSING, Auger

$119.99

$

Usually ships in 2-12 days

0

54

Simplicity 1686726SM

CLEVIS, U-Joint

$25.99

$

Usually ships in 2-12 days

0
