551 E (1692321) - Simplicity 20" Snow Thrower, 5hp (SN: 20001 & Above) Auger & Drive (S/N 10,001/20,001 and Above) Parts Diagram

20" Snow Thrower, 5hp

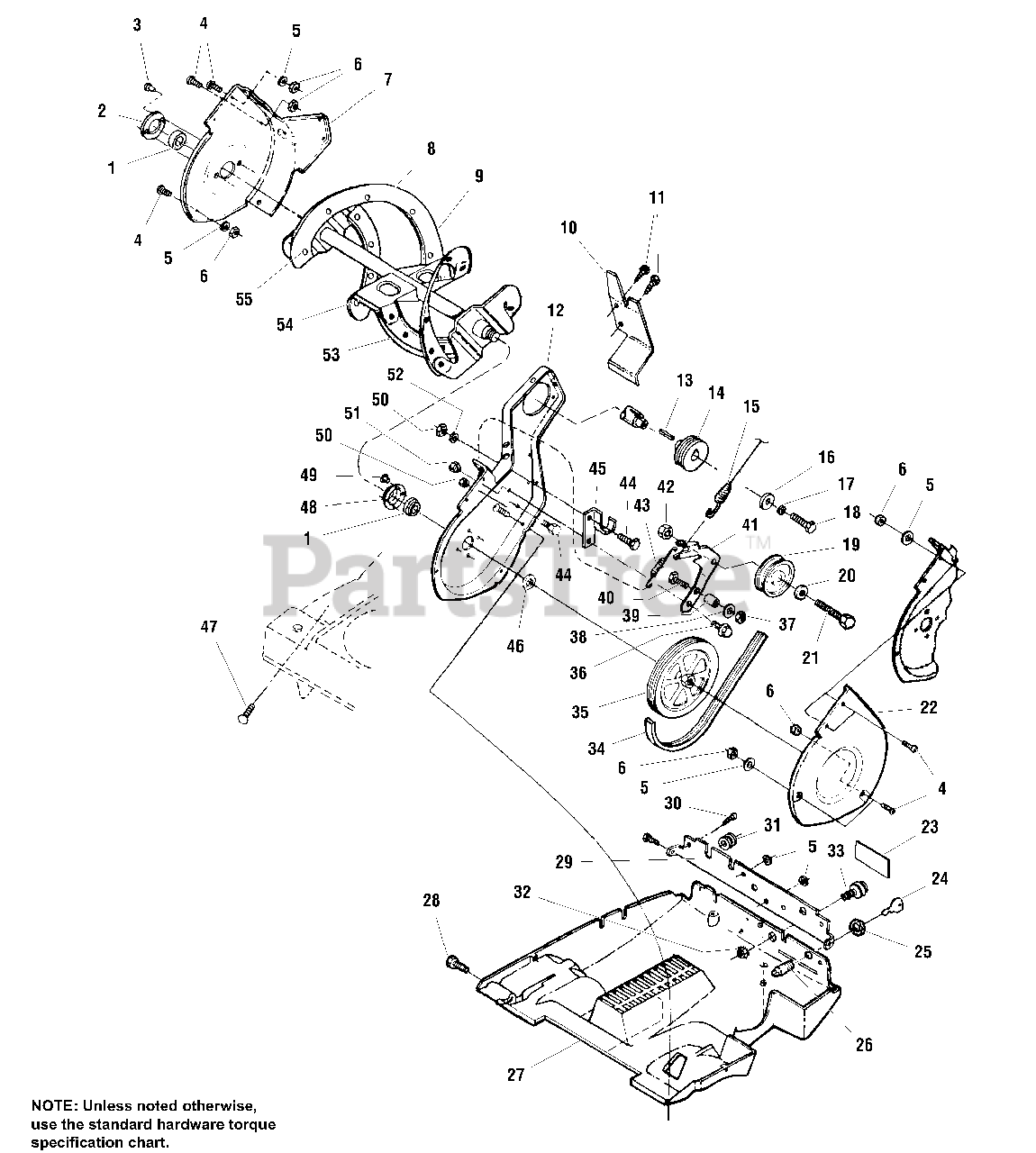

Auger & Drive (S/N 10,001/20,001 and Above) Parts Diagram

  • Title

1

Simplicity 1665521SM

BALL BEARING, Auger Axle

$16.99

$

In Stock, only 2 left!

0

2

Simplicity 1716649SM

RETAINER, Ball Bearing

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716691SM

RIVET

$

$

Not available

4

Simplicity 1928732SM

SCREW, Phillips, #10-24 x 5/8
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 1910531SM

WASHER, Retaining

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1933896SM

NUT, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1716584SM

FRAME, Right Side

$341.99

$

Usually ships in 2-12 days

0

8

Simplicity 1686705SM

KIT, Auger Flighting

$

$

Not available

9

Simplicity 1716662SM

AUGER, Complete Assembly

$261.99

$

Usually ships in 2-12 days

0

10

Simplicity 1714598

SHIELD, Belt

$

$

Not available

11

Simplicity 1929477SM

SCREW, Tap, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1715257

FRAME, Left Side

$

$

Not available

13

Simplicity 2805850SM

KEY, 3/16 Sq. x 1

$

$

Not available

14

Simplicity 1716616SM

PULLEY, Drive

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 1720323SM

CABLE, Auger Control

$33.99

$

In Stock, only 1 left!

0

16

Simplicity 1960141SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1917356SM

WASHER, Split Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1714502

BOLT, Hex, 5/16-24 x 7/8, Gr. 5

$

$

Not available

19

Simplicity 1716615SM

PULLEY, Idler

$22.99

$

Usually ships in 2-12 days

0

20

Simplicity 1918266SM

WASHER, Flat 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

21

Simplicity 1921969SM

BOLT, Hex, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

22

Simplicity 1716589SM

GUARD, Belt

$101.99

$

Usually ships in 2-12 days

0

23

Simplicity 1714591

DECAL, Choke

$

$

Not available

24

Simplicity 1717163SM

KEY, Ignition

$8.99

$

In Stock, Qty 20+

0

25

Simplicity 2122234SM

NUT, Hex, Ignition Switch, 5/8-32
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

26

Simplicity 1664804SM

SWITCH, Ignition
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

27

Simplicity 1714615SM

COWLING, Lower

$116.99

$

Usually ships in 2-12 days

0

28

Simplicity 1927429SM

SCREW, Hex, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

29

Simplicity 1714597

BRACKET, Control Panel

$

$

Not available

30

Simplicity 1927429SM

SCREW, Hex, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

31

Simplicity 1714563SM

GROMMET, Metal

$

$

Not available

32

Simplicity 2828372SM

NUT, Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

33

Simplicity 1714603

PRIMER, Bulb

$

$

Not available

34

Simplicity 1716645SM

BELT, Drive

$28.99

$

In Stock, only 1 left!

0

35

Simplicity 1686706SM

PULLEY- Drive
(Superseded to 1686706YP)

$51.99

$

Usually ships in 2-12 days

0

36

Simplicity 1716654SM

BOLT, Idler Pivot

$5.49

$

In Stock, only 1 left!

0

37

Simplicity 1923358SM

NUT, Center Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

38

Simplicity 1917373SM

WASHER, Internal Tooth, 5/8

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 1716656SM

ROLLER, Belt Stop

$2.99

$

Usually ships in 2-12 days

0

40

Simplicity 1921960SM

BOLT, Hex, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

41

Simplicity 1716618SM

ARM, Idler

$6.99

$

In Stock, only 2 left!

0

42

Simplicity 1931211SM

NUT, Serrated, Flange Lock, 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

43

Simplicity 1716653SM

SPRING, Extension

$35.99

$

In Stock, only 1 left!

0

44

Simplicity 1923341SM

BOLT, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

45

Simplicity 1714585SM

BRACKET, Belt

$

$

Not available

46

Simplicity 1714507

SPACER

$

$

Not available

47

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

48

Simplicity 1716649SM

RETAINER, Bearing

$6.99

$

Usually ships in 2-12 days

0

49

Simplicity 2860241

RIVET, 1/4

$

$

Not available

50

Simplicity 1920397SM

NUT, 1/4-20, Nylock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

51

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

52

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

53

Simplicity 1716684SM

PEDAL, Auger

$30.99

$

In Stock, only 4 left!

0

54

Simplicity 1716683SM

BLADE, Auger

$

$

Not available

55

Simplicity 1716588SM

RIVET, Truss

$4.49

$

Usually ships in 2-12 days

0
