551 (190-551-100) - Cub Cadet 45" Snow Thrower Attachment att Mounting And Lift Frame Parts Diagram

45" Snow Thrower Attachment

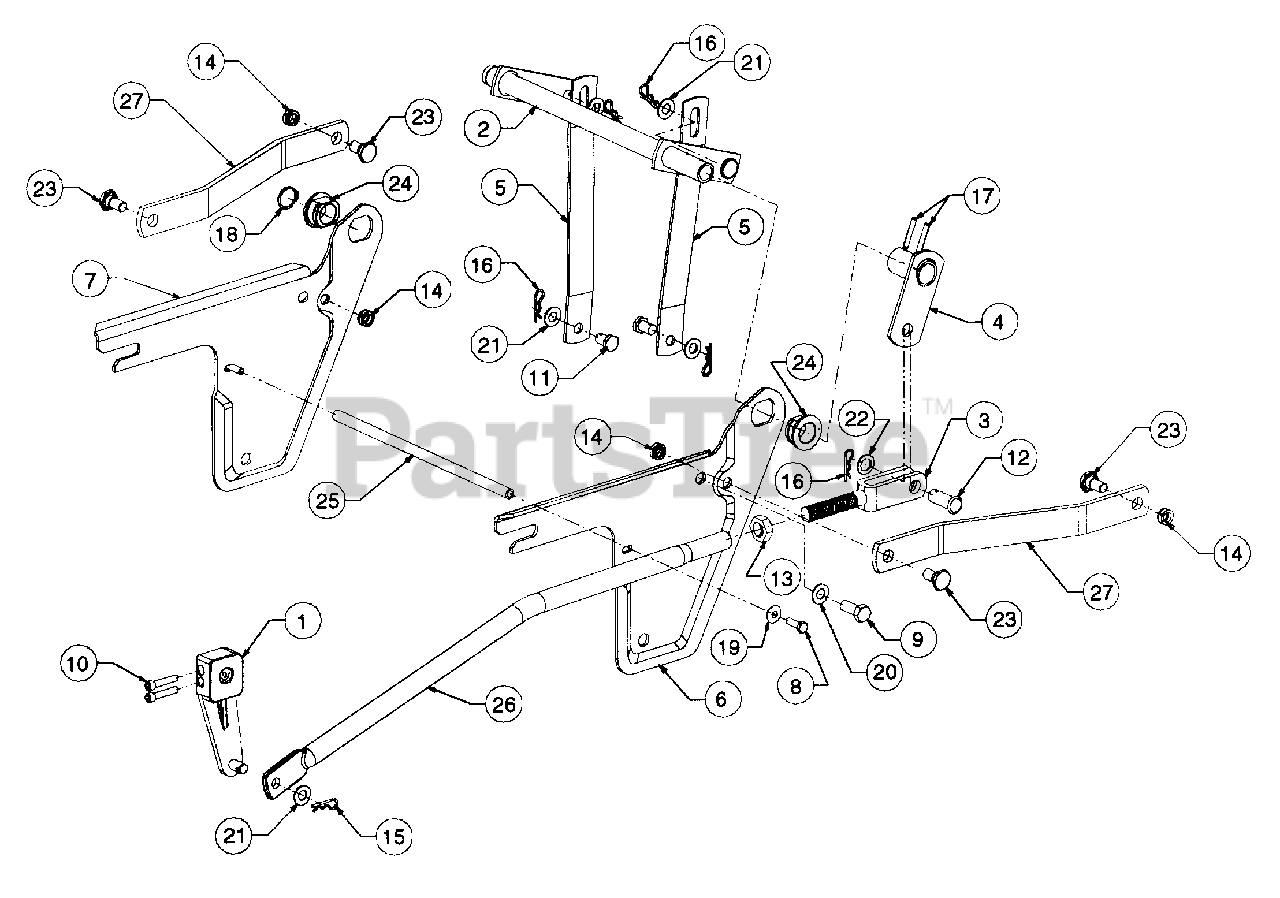

Mounting And Lift Frame Parts Diagram

  • Title

1

Cub Cadet 603-0027

Bracket Ass'y, Hydro Lift

$

$

Not available

2

Cub Cadet 603-0366

Rockshaft Lift Arm Ass'y

Variations

Cub Cadet 603-0366-0498

LIFT ARM ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 603-0372

Clevis Ass'y
(Superseded to 603-0372-0498)

Variations

Cub Cadet 603-0372-0498

CLEVIS - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 603-0405

Bracket Ass'y, Lift Arm

$

$

Not available

5

Cub Cadet 703-2892

Link, Lift

Variations

Cub Cadet 703-2892-0498

LINK-LIFT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 703-2894

Bracket, Mounting RH

Variations

Cub Cadet 703-2894-0498

MOUNTING BRACKET (RH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

7

Cub Cadet 703-2895

Bracket, Mounting LH

Variations

Cub Cadet 703-2895-0498

MOUNTING BRACKET (LH) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

8

Cub Cadet 710-0117

Screw, Hex Cap, 5/16-24 X 1.0 GR5
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3250

Screw, Socket Hd

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-0332

Pin, Lift Bracket
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

12

Cub Cadet 711-0654

Pin, Clevis

$16.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0301

Nut, Hex Jam, 3/4-10

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-0346

Nut, Hex Insert Lock Jam, 1/2-20

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

17

Cub Cadet 715-0114

Pin, Spiral Spring, .25 Dia X 1.5 Lg

$9.49

$

In Stock, Qty 20+

0

18

Cub Cadet 716-0102

Ring, Snap

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .06

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0253

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .06

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0290

Washer, Flat, 5/8 X 1.0 X .063

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-0816

Bolt, Shoulder, .62 Dia X .30 Lg
(Superseded to 938-0816)

$

$

Not available

24

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

25

Cub Cadet 747-0543

Rod, Carriage Bracket Support

$

$

Not available

26

Cub Cadet 749-3065

Lift Tube

Variations

Cub Cadet 749-3065-0498

TUBE-THROWER LIFT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

27

Cub Cadet 784-5706

Link, Upper

Variations

Cub Cadet 784-5706-0498

LINK, UPPER - OLD CUB YELLOW (0498)

$

$

Not available

$

$
