551 (190-551-100) - Cub Cadet 45" Snow Thrower Attachment att Lift Assist Kit Parts Diagram

45" Snow Thrower Attachment

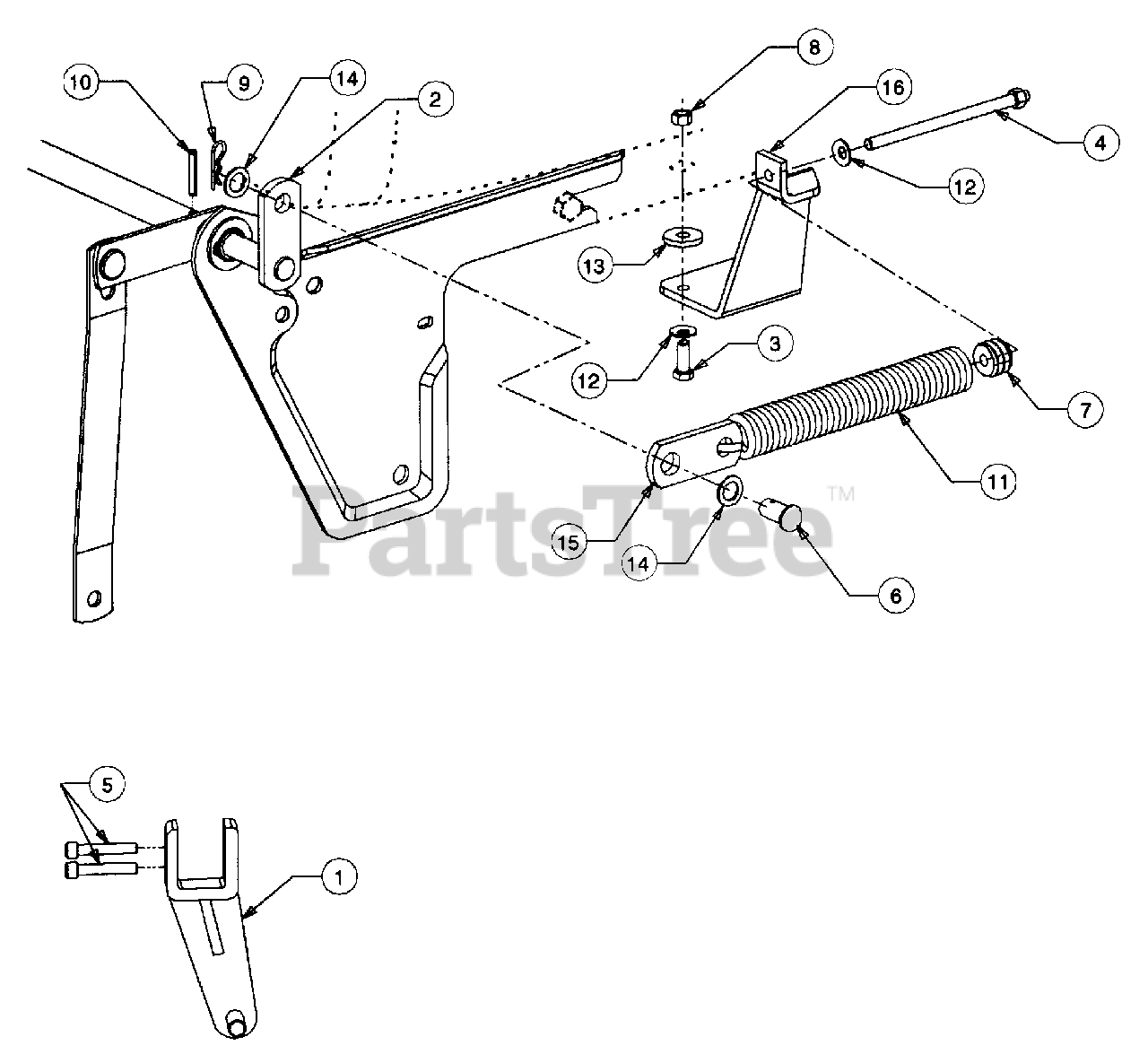

Lift Assist Kit Parts Diagram

  • Title

Cub Cadet 759-3855

Kit, Lift Assist

$

$

Not available

1

Cub Cadet 603-0026

Bracket Ass'y, Manual Lift

$

$

Not available

2

Cub Cadet 603-0420

Arm, Lift Assist

Variations

Cub Cadet 603-0420-0498

LIFT ARM HELPER SPRING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0420-0637

LIFT ARM HELPER SPRING (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0253

Screw, Hex Cap, 3/8-16 X 1.0
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0677

Screw, Hex Special

$

$

Not available

5

Cub Cadet 710-3251

Screw, Socket Head

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet 711-0309

Pin, Clevis, .62 Dia X 1.20 Lg
(Superseded to 711-0309A)

$12.99

$

In Stock, Qty 6

0

7

Cub Cadet 711-0635

Insert, Spring

$44.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 6

0

9

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 715-0114

Pin, Spiral Spring, .250 Dia X 1.5 Lg

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet 732-0557

Spring, Extension

$

$

Not available

12

Cub Cadet 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0235

Washer, Flat, .406 X 1.25 X .172
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

14

Cub Cadet 736-0290

Washer, Flat, .635 X 1.00 X .063

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 784-5248

Link, Lift

Variations

Cub Cadet 784-5248-0637

LIFT LINK - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 784-5400

Bracket, Helper Spring

$

$

Currently unavailable
