551 (190-551-100) - Cub Cadet 45" Snow Thrower Attachment att Impeller Gear Box Parts Diagram

45" Snow Thrower Attachment

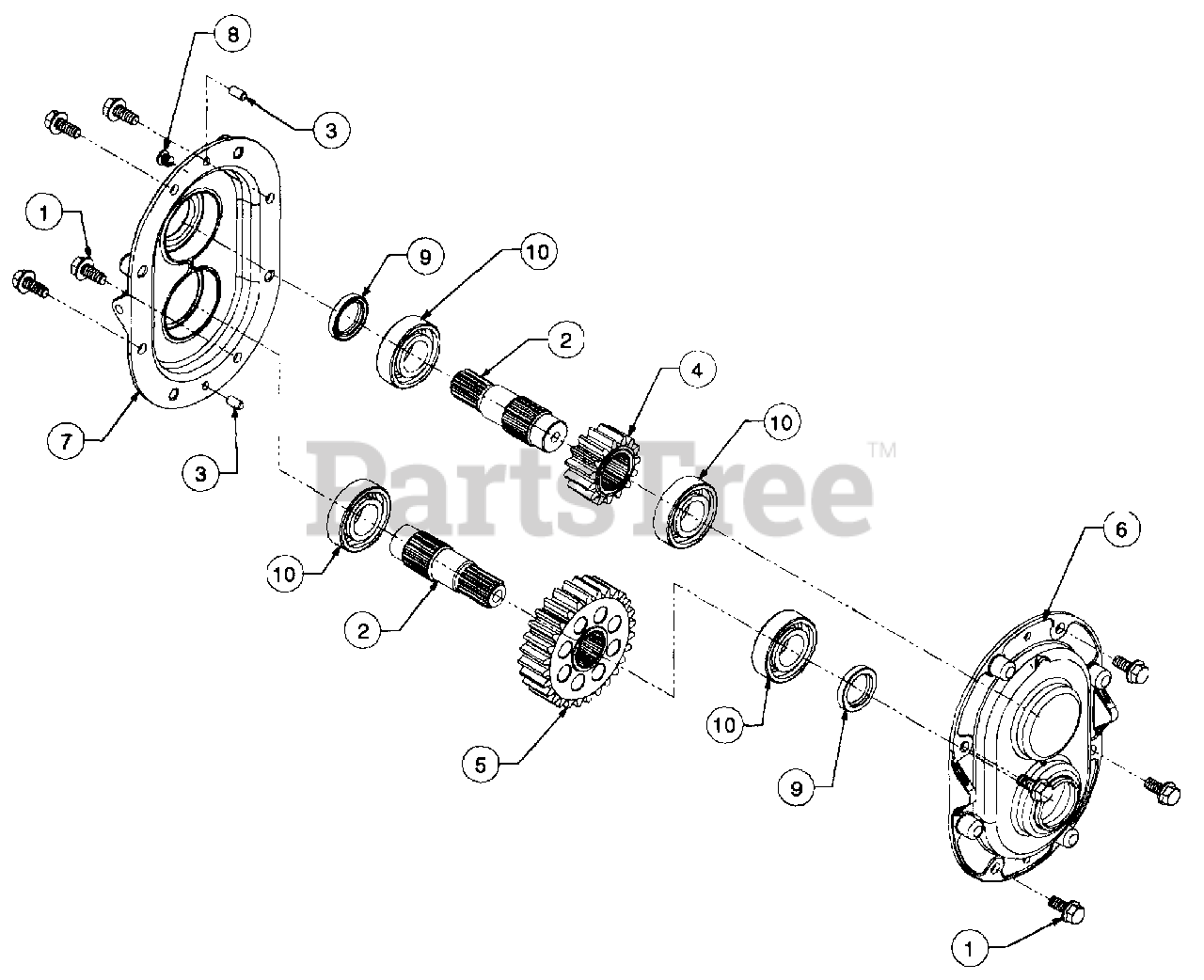

Impeller Gear Box Parts Diagram

  • Title

Cub Cadet 618-0242

Gear Box Ass'y.

$

$

Not available

1

Cub Cadet 710-1260

Screw, Hex Wash. Hd. Tapp 5/16-18 X .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1078

Shaft, Input/Output

$154.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 715-0154

Pin, Dowel, 1/4 X 1/2

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 717-1452

Spur Gear, 28T

$63.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 717-1453

Spur Gear, 15T

$

$

Not available

6

Cub Cadet 719-0346

Housing Half - Front

$

$

Not available

7

Cub Cadet 719-0347

Housing Half - Rear w/mtng. & plug holes

$

$

Not available

8

Cub Cadet 721-0325

Plug, 1/4 X .437

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 721-0391

Seal, Oil, 25mm X 32mm X 6mm
(Superseded to 921-0391)

$10.99

$

In Stock, Qty 11

0

10

Cub Cadet 741-0301

Bearing, Ball
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

Cub Cadet 737-0300

Grease, Benalene
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

$

$

Not available
