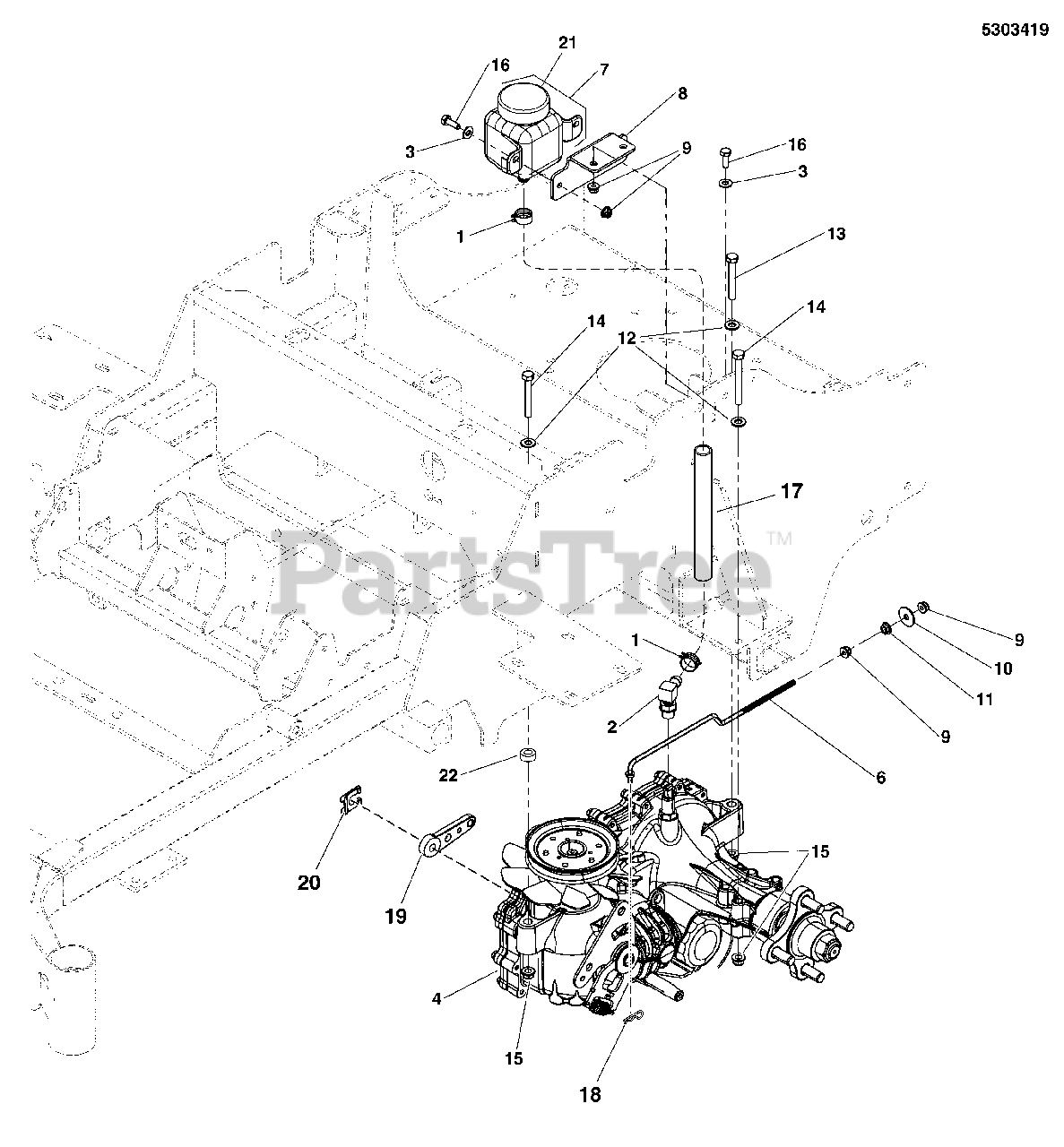

550Z (KAV 2461) (5901251) - Snapper 61" Zero-Turn Mower, 24hp Hydraulic Group Parts Diagram

61" Zero-Turn Mower, 24hp

Hydraulic Group Parts Diagram

  • Title
1

Snapper 5025474SM

CLAMP, HOSE, .75 FREE DIA.

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 5100370YP

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG

$18.99

$

Usually ships in 2-12 days

0

3

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

4

Snapper 5103972YP

TRANSAXLE, ZT3100, LH, ZL-KMEF-3C7C-1PXX

$2439.99

$

Usually ships in 2-12 days

0

5

Snapper 5103973YP

TRANSAXLE, ZT3100, RH ZL-GMEF-3C7B-1PXX

$1768.99

$

Usually ships in 2-12 days

0

6

Snapper 5103631YP

ROD, DUMP VALVE, IS600, CZ

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 5100473SM

HYDRO RES. #71328, 350 ml

$40.99

$

Usually ships in 2-12 days

0

8

Snapper 5410909AYP

PLATE, HYDRO BOTTLE MOUNT - BLACK

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Snapper 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, only 4 left!

0

11

Snapper 703233

NUT, 1/4-20 HEX SERR. FLANGE

$4.49

$

In Stock, Qty 9

0

12

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

13

Snapper 5025011X18SM

BOLT, 5/16-18 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 1 left!

0

14

Snapper 5025011X22YP

BOLT, 5/16-18 X 2-3/4, GD 5, YZ

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

16

Snapper 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

17

Snapper 5050857X7YP

HOSE, 1/2" PUSH-ON, 7.00"

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 5025211SM

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ

$3.99

$

In Stock, only 1 left!

0

19

Snapper 5103750YP

ARM, Brake

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 5103751YP

CLIP, RETAINER, BRAKE ARM
(Superseded to 5104055YP)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 5100778X1YP

RESERVIOR CAP (SV)

$21.99

$

In Stock, only 1 left!

0

22

Snapper 504146YP

SPACER, .390 X .75 X .580, CZ

Note: (S/N: 2016603083 & Above)

$

$

Not available
