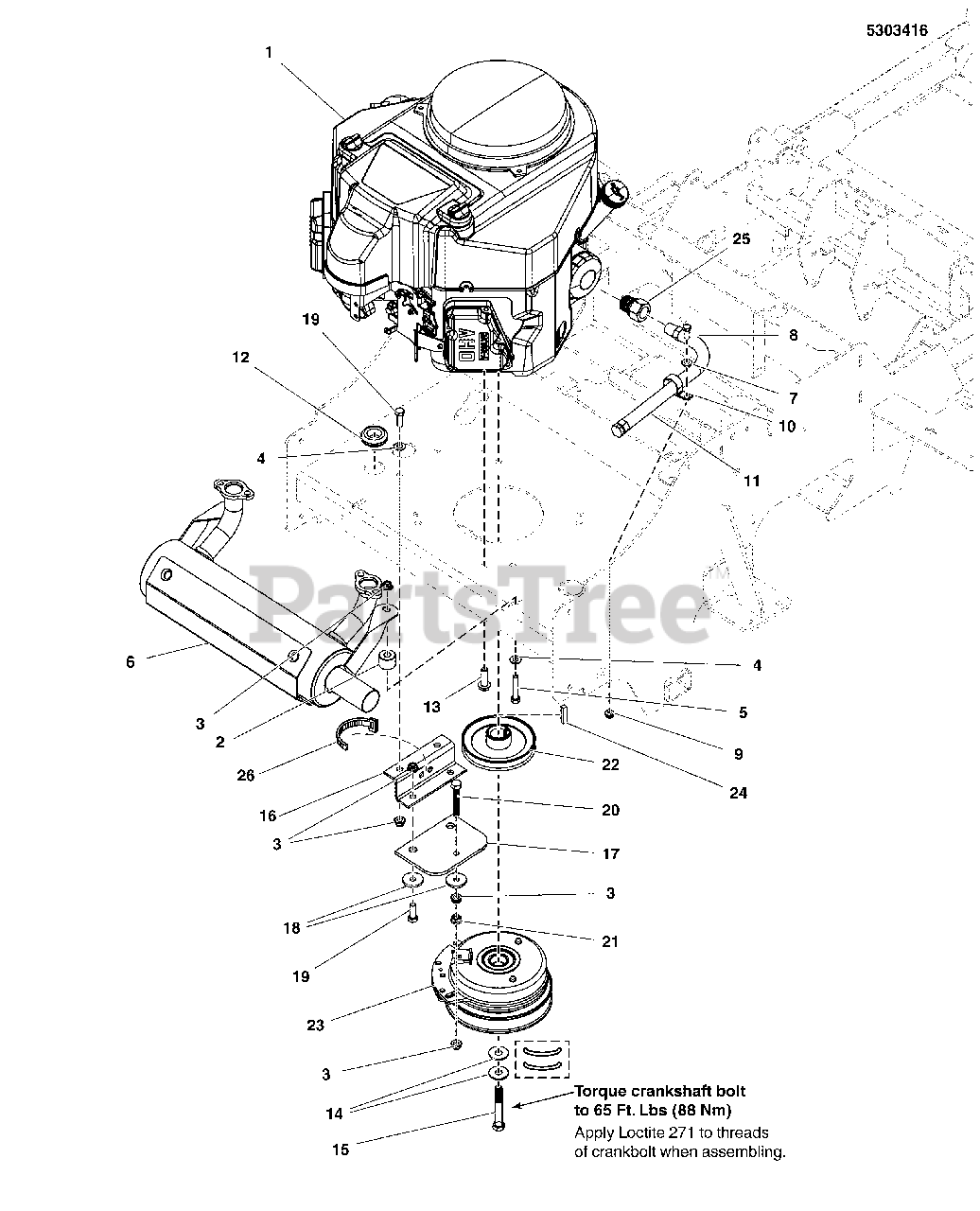

550Z (KAV 2461) (5901251) - Snapper 61" Zero-Turn Mower, 24hp Engine & PTO Group - Kawasaki FR Parts Diagram

61" Zero-Turn Mower, 24hp

Engine & PTO Group - Kawasaki FR Parts Diagram

  • Title

1

Snapper FR730V-AS19R

ENGINE, 24HP KAWI, FR, 1" CRANK

$

$

Currently unavailable

2

Snapper 5046446SM

SPACER, .39 X 1.00 X .80, CZ

$7.49

$

In Stock, only 1 left!

0

3

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

4

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

6

Snapper 5102127YP

MUFFLER, 26HP KAWI, FX730V, HORIZONTAL

$295.99

$

Usually ships in 2-12 days

0

7

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

8

Snapper 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

9

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Snapper 5021500SM

CLAMP, VINYL INSULATED

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

12

Snapper 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 5025532YP

BOLT, 3/8-16 X 1-1/4, SF, PLT W/PATCH
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

14

Snapper 5025585YP

BELLEVILLE WASHER 1.1875 X .442 X .089

$4.49

$

In Stock, only 4 left!

0

15

Snapper 5103300YP

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD8

$5.99

$

In Stock, only 1 left!

0

16

Snapper 5046416AYP

ANCHOR, CLUTCH - BLK

$16.99

$

Usually ships in 2-12 days

0

17

Snapper 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

18

Snapper 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

19

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

20

Snapper 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

21

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 4 left!

0

22

Snapper 5101337YP

PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE

$37.99

$

In Stock, only 1 left!

0

23

Snapper 5100915SM

CLUTCH, # 5219-34A, ELECTRIC, IS500Z

$330.99

$

Usually ships in 2-12 days

0

24

Snapper 5050407X8SM

KEY, 1/4 SQ X 1

$3.99

$

In Stock, only 1 left!

0

25

Snapper 5022234SM

ADAPTER-OIL DRAIN

$15.99

$

Usually ships in 2-12 days

0

26

Snapper 5021030SM

TIE,SELF-LOCKING, 6"

$2.99

$

In Stock, only 3 left!

0
