550Z (KAV 2461) (5901251) - Snapper 61" Zero-Turn Mower, 24hp Deck Lift Group Parts Diagram

61" Zero-Turn Mower, 24hp

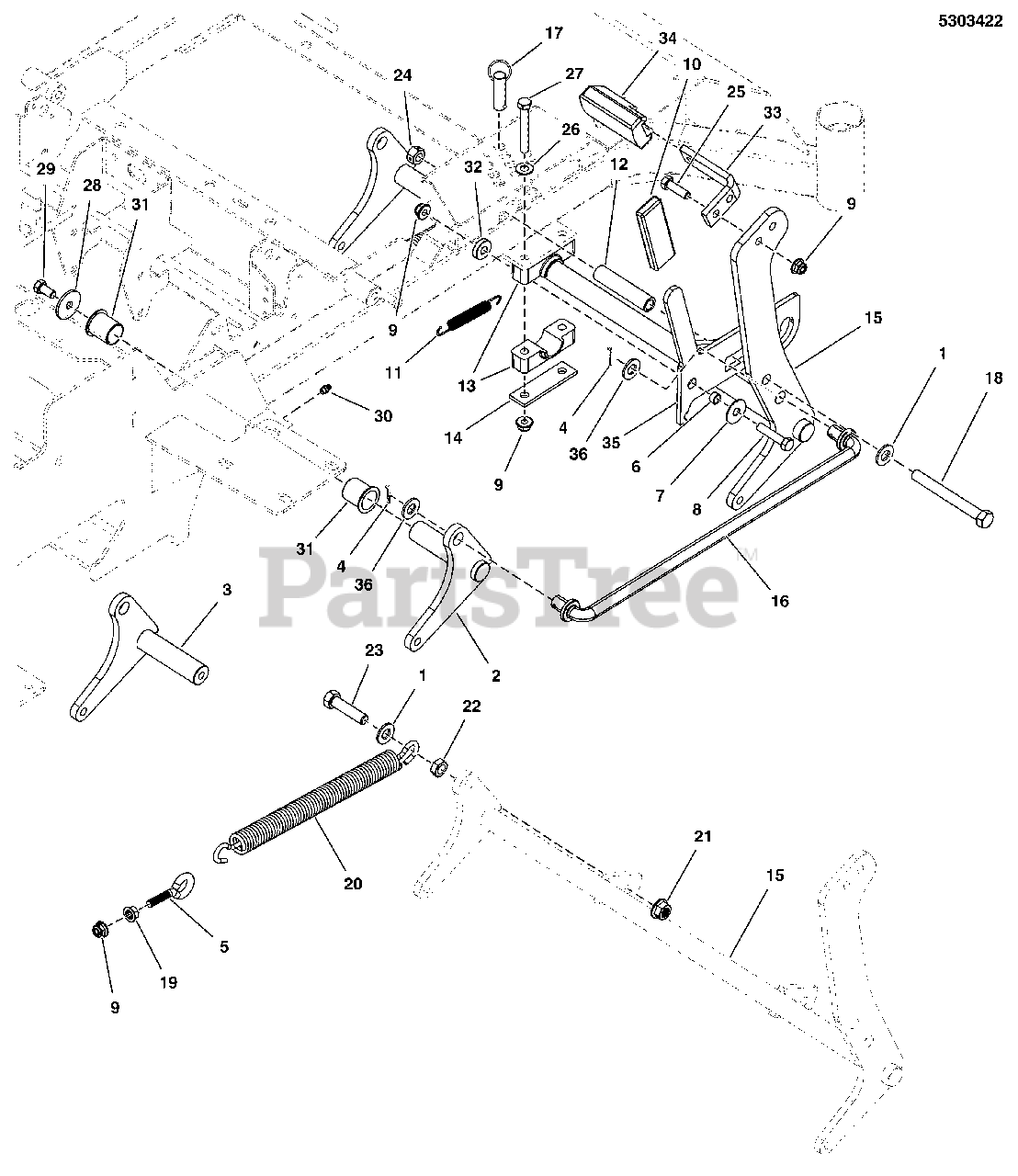

Deck Lift Group Parts Diagram

  • Title

1

Snapper 5025158SM

WASHER, 1/2" SAE

Note: (Qty: 2 on 52" Models)

$3.99

$

In Stock, Qty 14

0

2

Snapper 5411453AYP

WELD, DECK LIFT PIVOT, RH

$42.99

$

Usually ships in 2-12 days

0

3

Snapper 5411454AYP

WELD, DECK LIFT PIVOT, LH

$42.99

$

Usually ships in 2-12 days

0

4

Snapper 5025203X10SM

PIN, COTTER, 1/8 X 1-1/4

$3.99

$

In Stock, only 1 left!

0

5

Snapper 5025429SM

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C

Note: (Qty: 1 on 52" Models)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 5041930SM

SPACER, .38 X .50 X .27, CZ

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 5025165SM

WASHER, 3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

8

Snapper 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, only 2 left!

0

9

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

Note: (Qty: 8 on 52" Models)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 5025510SM

GRIP, FOAM, 1/4 X 1

$6.49

$

In Stock, Qty 12

0

11

Snapper 5102692YP

SPRING, EXTENTION, .50 OD X 4.12 FL

$19.99

$

Usually ships in 2-12 days

0

12

Snapper 5102545YP

SPACER, .53 X .73 X 3.38, CZ

$24.99

$

Usually ships in 2-12 days

0

13

Snapper 5100634SM

PIVOT BLOCK, PLASTIC

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 5411399DYP

WELD, DECK LIFT SHAFT - RED

$317.99

$

Usually ships in 2-12 days

0

16

Snapper 5103965YP

ROD, DECK LIFT, S550

$39.99

$

Usually ships in 2-12 days

0

17

Snapper 5022045SM

PIN, COTTERLESS

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 5025017X36SM

BOLT, 1/2-13 X 4-1/2 GD5 YZ

$6.49

$

In Stock, only 2 left!

0

19

Snapper 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

Note: (Qty: 1 on 52" Models)

$3.49

$

In Stock, only 2 left!

0

20

Snapper 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

Note: (Qty: 1 on 52" Models)(Older 52" Models used 2 deck lift assist springs)

$49.99

$

In Stock, only 1 left!

0

21

Snapper 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

Note: (Qty: 1 on 52" Models)

$3.49

$

In Stock, only 2 left!

0

22

Snapper 5025301SM

NUT, 1/2-13 HEX JAM

Note: (Qty: 1 on 52" Models)

$3.49

$

In Stock, only 1 left!

0

23

Snapper 5025017X16YP

BOLT, 1/2-13 X 2 GD5 YZ

Note: (Qty: 1 on 52" Models)

$4.49

$

In Stock, only 1 left!

0

24

Snapper 5025332SM

NUT, 1/2-13 HEX SIDE LOCK

$3.49

$

In Stock, Qty 12

0

25

Snapper 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0

26

Snapper 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

27

Snapper 5025013X22SM

BOLT, 3/8-16 X 2-3/4 GD5 YZ

$4.49

$

In Stock, only 3 left!

0

28

Snapper 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 5025443SM

BOLT, 3/8-16 X 3/4, PLT W/PATCH

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

31

Snapper 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.49

$

Usually ships in 2-12 days

0

32

Snapper 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, Qty 7

0

33

Snapper 5061569AYP

PEDAL, FOOT - BLK

$40.99

$

Usually ships in 2-12 days

0

34

Snapper 5104262YP

PEDAL, Rubber

$10.99

$

Usually ships in 2-12 days

0

35

Snapper 5411310AYP

PLATE, DECK TRANSPORT LEVER - BLK

$28.99

$

Usually ships in 2-12 days

0

36

Snapper 5025281SM

WASHER, 5/8 SAE

$3.99

$

In Stock, Qty 8

0
