550Z (B 2561) (5901402) - Snapper 61" Zero-Turn Mower, 25hp Engine & PTO Group - Briggs & Stratton Commercial Turf Parts Diagram

61" Zero-Turn Mower, 25hp

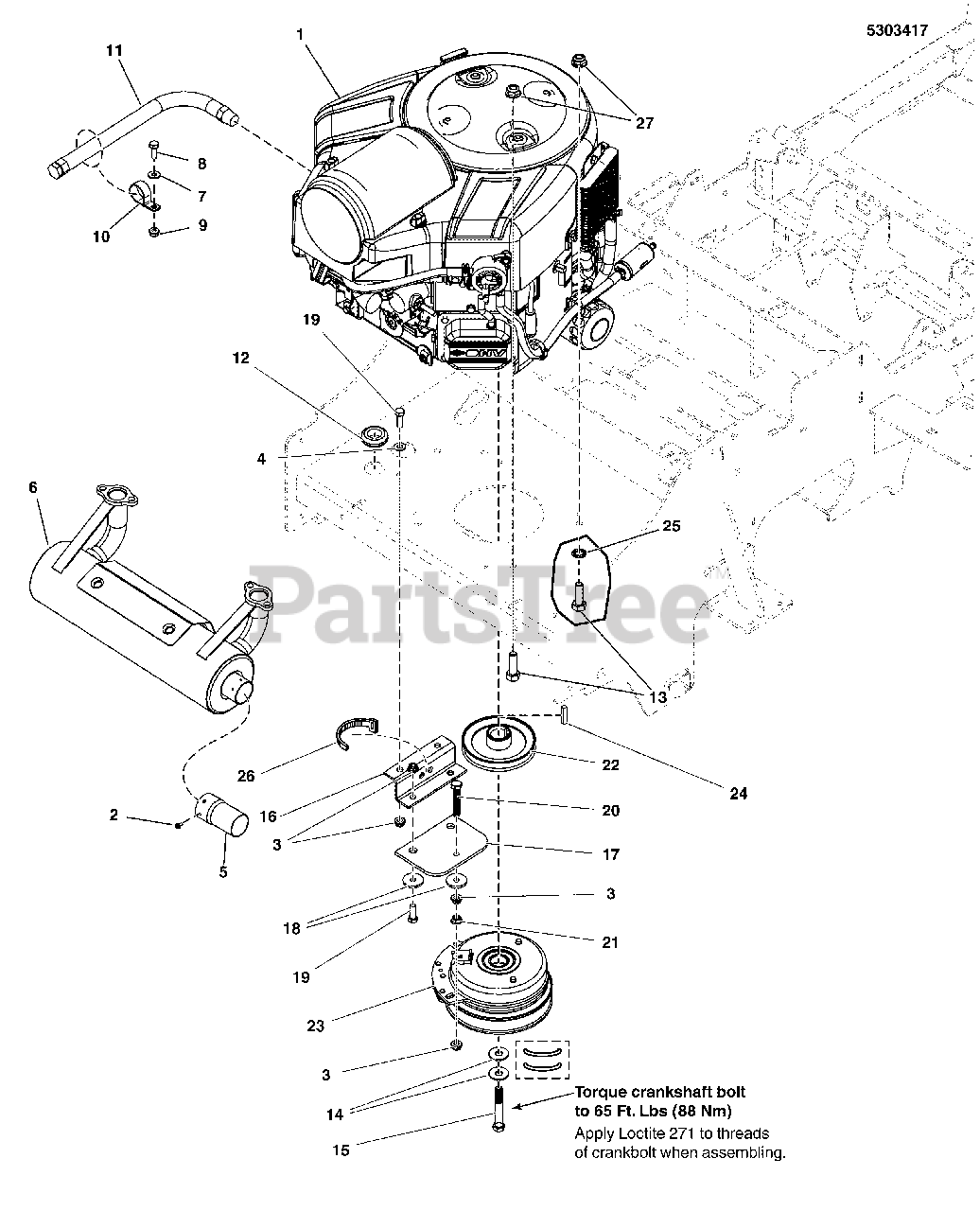

Engine & PTO Group - Briggs & Stratton Commercial Turf Parts Diagram

  • Title

1

Snapper 44T877-9322-60

ENGINE, 25HP B&S COMM TURF 1 X 3.16, Mod. 44T877-9322-60

$

$

Currently unavailable

2

Snapper 5025470YP

SCREW, SELF-TAP,#8-32 X 3/8,WASH HEX, CZ

$3.49

$

In Stock, only 2 left!

0

3

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

4

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5104348YP

EXTENSION, TAILPIPE, 3" - BLACK

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

Usually ships in 2-12 days

0

7

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

8

Snapper 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

9

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Snapper 5021500SM

CLAMP, VINYL INSULATED

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 5025025X14YP

BOLT, 5/16-24 X 1-3/4, GD8, PHOS

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 5025585YP

BELLEVILLE WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 4 left!

0

15

Snapper 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

$5.49

$

In Stock, only 1 left!

0

16

Snapper 5046416AYP

ANCHOR, CLUTCH - BLK

$16.99

$

Usually ships in 2-12 days

0

17

Snapper 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

19

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

20

Snapper 5025055X16SM

BOLT, 5/16-18 X 2 GD5 TFL

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 4 left!

0

22

Snapper 5101337YP

PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE

$37.99

$

In Stock, only 1 left!

0

23

Snapper 5100915SM

CLUTCH, # 5219-34A, ELECTRIC, IS500Z

$330.99

$

Usually ships in 2-12 days

0

24

Snapper 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

25

Snapper 5025188SM

WASHER, 5/16 INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

26

Snapper 5021030SM

TIE,SELF-LOCKING, 6"

$2.99

$

In Stock, only 3 left!

0

27

Snapper 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

In Stock, only 2 left!

0
