550Z (B 2561) (5901252) - Snapper 61" Zero-Turn Mower, 25hp Transaxle Drive Group Parts Diagram

61" Zero-Turn Mower, 25hp

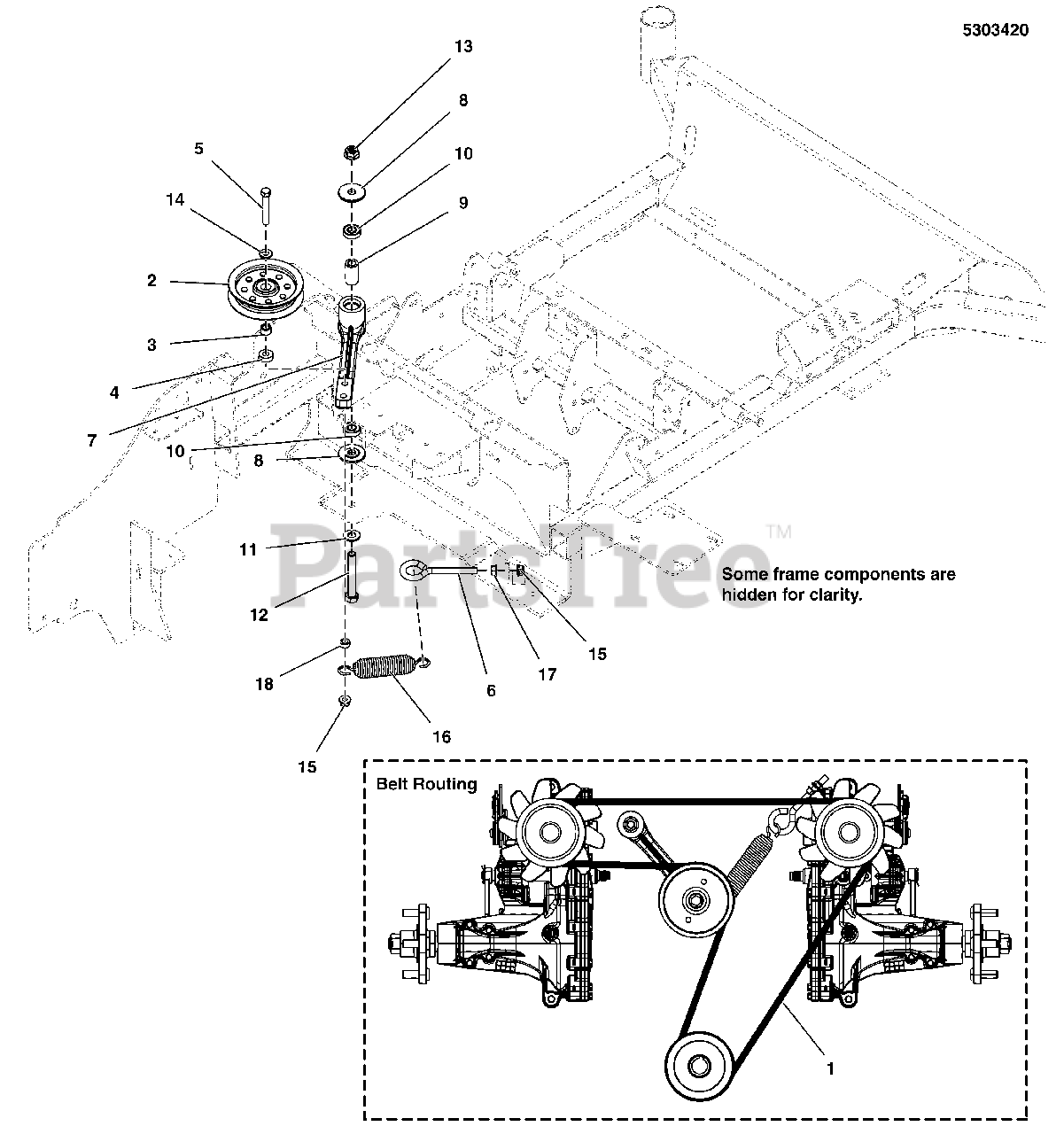

Transaxle Drive Group Parts Diagram

  • Title

1

Snapper 5103951YP

BELT, A-SEC, 79.3"EL, ARAMID, WRPD

$49.99

$

In Stock, only 1 left!

0

2

Snapper 5021002SM

PULLEY, IDLER, 4.06OD, .669ID, .75W STL

$40.99

$

In Stock, only 3 left!

0

3

Snapper 5020880SM

INSERT, BEARING, 17MM X 12MM L

$12.99

$

Usually ships in 2-12 days

0

4

Snapper 1667811SM

SPACER-0.390ID 0.90 OD 0.34 LG P'MTL YEL

$3.49

$

In Stock, Qty 20+

0

5

Snapper 5025013X20SM

BOLT, 3/8-16 X 2-1/2 GD5 YZ
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 5023497SM

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ

Note: (S/N: 2016603082 & Below)

$9.49

$

In Stock, only 1 left!

0

6

Snapper 5021811SM

EYEBOLT, 3/8-16 X 8, 3 THRD, 1 EYE, CZ

Note: (S/N: 2016603083 & Above)

$8.49

$

In Stock, Qty 12

0

7

Snapper 5101178AYP

IDLER ARM, CAST, MACHINED

$47.99

$

Usually ships in 2-12 days

0

8

Snapper 5103262YP

SPACER, Idler Arm

$7.99

$

In Stock, Qty 15

0

9

Snapper 5103812YP

SPACER

$7.99

$

In Stock, Qty 7

0

10

Snapper 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 18

0

11

Snapper 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 12

0

12

Snapper 5025017X28SM

BOLT, 1/2-13 X 3-1/2 GD5 YZ

$5.99

$

In Stock, only 3 left!

0

13

Snapper 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

14

Snapper 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 5

0

15

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

16

Snapper 5100633YP

SPRING, Extension

$34.99

$

Usually ships in 2-12 days

0

17

Snapper 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

18

Snapper 1611705SM

SPACER, 0.385ID 0.623OD 0.290LG P'MTL

$4.49

$

In Stock, Qty 19

0
