550Z (B 2561) (5901252) - Snapper 61" Zero-Turn Mower, 25hp Fuel Supply Hose, Tank Replacement, & Evap Group Parts Diagram

61" Zero-Turn Mower, 25hp

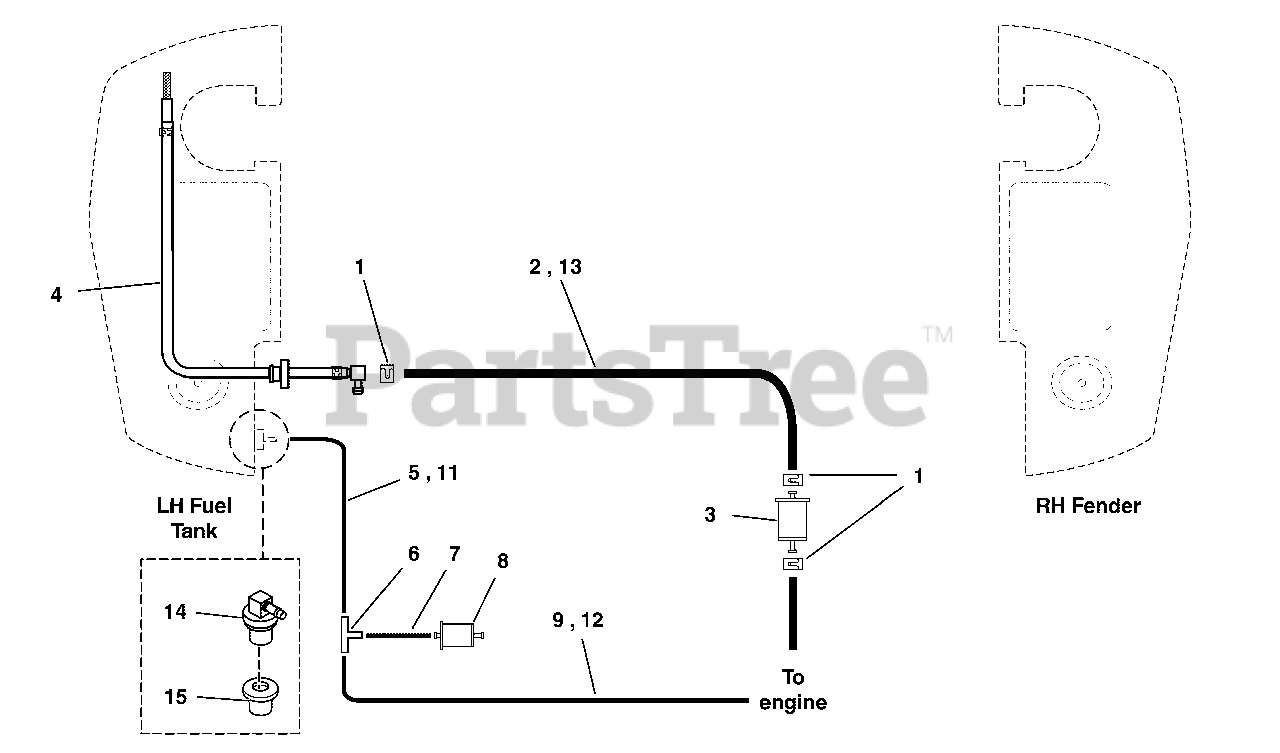

Fuel Supply Hose, Tank Replacement, & Evap Group Parts Diagram

  • Title

1

Snapper 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

2

Snapper 5050831X14YP

HOSE, 1/4" FUEL, 14.00"

Note: (Models equipped with Kawasaki engines)

$9.49

$

Usually ships in 2-12 days

0

3

Snapper 5021178X3SM

FUEL FILTER (SV)

$

$

Not available

4

Snapper 5300047SM

ASSM, FUEL HOSE, 26

$53.99

$

Usually ships in 2-12 days

0

5

Snapper 7700552X34YP

HOSE, VAPOR, 5MM ID, 34.00 LG

Note: (Models equipped with Briggs & Stratton engines)

$

$

Not available

6

Snapper 5103062YP

FITTING, 3/16" TEE, BARB TYPE, HDPE

$10.99

$

In Stock, only 2 left!

0

7

Snapper 7700552X2YP

HOSE, VAPOR, 5MM ID, 2.00 LG

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

9

Snapper 7700552X9YP

HOSE, VAPOR, 5MM ID, 9.00 LG

Note: (Models equipped with Briggs & Stratton engines)

$6.49

$

Usually ships in 2-12 days

0

10

DECAL, EPA CERT, 49 ST ZTR-DIRECT, 2013

$

$

Not available

11

Snapper 7700552X21P5YP

HOSE, VAPOR, 5MM ID 21.50 LG
(Superseded to 7700552X22YP)

Note: (Models equipped with Kawasaki engines)

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 7700552X21P5YP

HOSE, VAPOR, 5MM ID 21.50 LG
(Superseded to 7700552X22YP)

Note: (Models equipped with Kawasaki engines)

$8.99

$

Usually ships in 2-12 days

0

13

Snapper 5050831X24YP

HOSE, 1/4" FUEL, 24.00"

Note: (Models equipped with Briggs & Stratton engines)

$8.99

$

Usually ships in 2-12 days

0

14

Snapper 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

15

Snapper 799624

GROMMET

$8.99

$

In Stock, Qty 18

0
