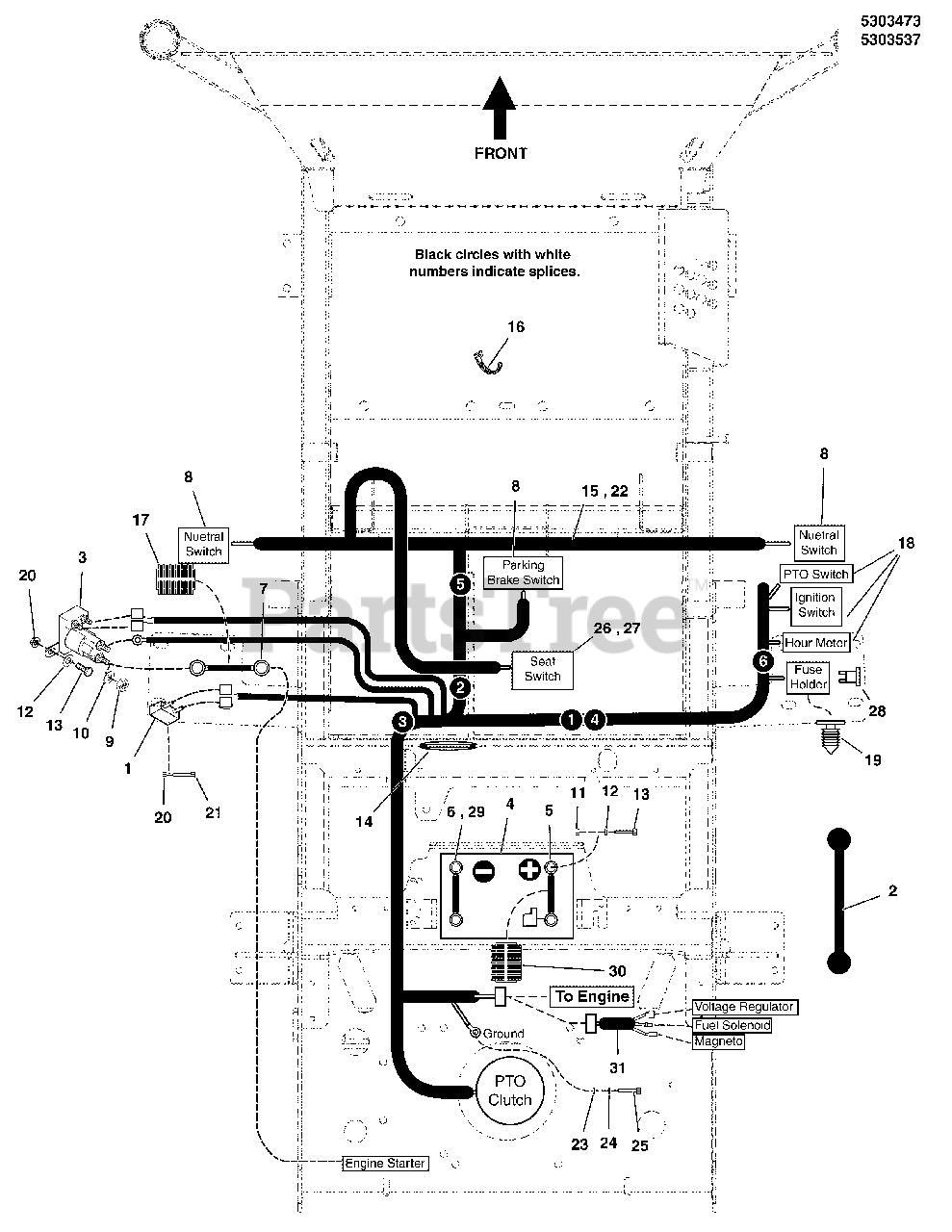

550Z (B 2561) (5901252) - Snapper 61" Zero-Turn Mower, 25hp Electrical Group Parts Diagram

61" Zero-Turn Mower, 25hp

Electrical Group Parts Diagram

  • Title

1

Snapper 1665238SM

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB

$14.99

$

In Stock, Qty 20+

0

2

Snapper 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

3

Snapper 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

4

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

5

Snapper 5047136SM

BATTERY CABLE, POS, 15, 1/4-5/16

$22.99

$

In Stock, only 1 left!

0

6

Snapper 5047690SM

BATTERY CABLE, NEG, 14, 5/16-5/16

Note: (Models w/ Kawasaki Engines)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper 5023488SM

BATTERY CABLE, POS, 22, 1/4-5/16

$27.99

$

Usually ships in 2-12 days

0

8

Snapper 7022886YP

SWITCH, PLUNGER, NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

9

Snapper 5023216SM

NUT, 5/16-24 JAM

$2.99

$

Usually ships in 2-12 days

0

10

Snapper 5023217SM

WASHER, 5/16 LIGHT LOCK

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 703233

NUT, 1/4-20 HEX SERR. FLANGE

$4.49

$

In Stock, Qty 5

0

12

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

13

Snapper 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

14

Snapper 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

15

USE 5410289YP & 5104811YP

Note: (Kawasaki Engines S/N: 2017301892 & Below)

$

$

Not available

16

Snapper 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

17

Snapper 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.49

$

Usually ships in 2-12 days

0

18

SEE INSTRUMENT CONTROL PANEL GROUP

$

$

Not available

19

Snapper 5103761YP

FIR TREE MOUNT, PACKARD

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

Snapper 5025299X6SM

SCREW,1/4-20X3/4, ZINC PHOS & OIL

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 5410289YP

WIRE HARNESS, C TURF, WARNER

Note: (B&S Commercial Turf Engines S/N: All; Kawasaki Engines S/N: 2017301893 & Above)

$433.99

$

Usually ships in 2-12 days

0

23

Snapper 5025188SM

WASHER, 5/16 INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

24

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

25

Snapper 5025249YP

BOLT, M8-1.25 X 20MM GD8.8

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 5100540YP

SWITCH, NC, W/ BOLT-IN BASE

$32.99

$

In Stock, only 1 left!

0

27

Snapper 5100541YP

SWITCH, NC, W/ TWIST-IN BASE

$20.99

$

In Stock, only 1 left!

0

28

Snapper 5101935YP

FUSE, ATO 15 AMP (SV)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 5044014SM

BATTERY CABLE, NEGATIVE, 10"

Note: (Models w/ Briggs & Stratton Engines)

$14.99

$

Usually ships in 2-12 days

0

30

Snapper 5050927X12YP

WIRE LOOM, 3/8 ID X 12"

$

$

Not available

31

Snapper 5104811YP

WIRE HARNESS, JUMPER, KAWI

Note: (Kawasaki Engines S/N: 2017301893 & Above)

$18.99

$

Usually ships in 2-12 days

0
