550Z (B 2552) (5901401) - Snapper 52" Zero-Turn Mower, 25hp 52" Mower Deck Group - Housing, Covers, Spindles, & Blades Parts Diagram

52" Zero-Turn Mower, 25hp

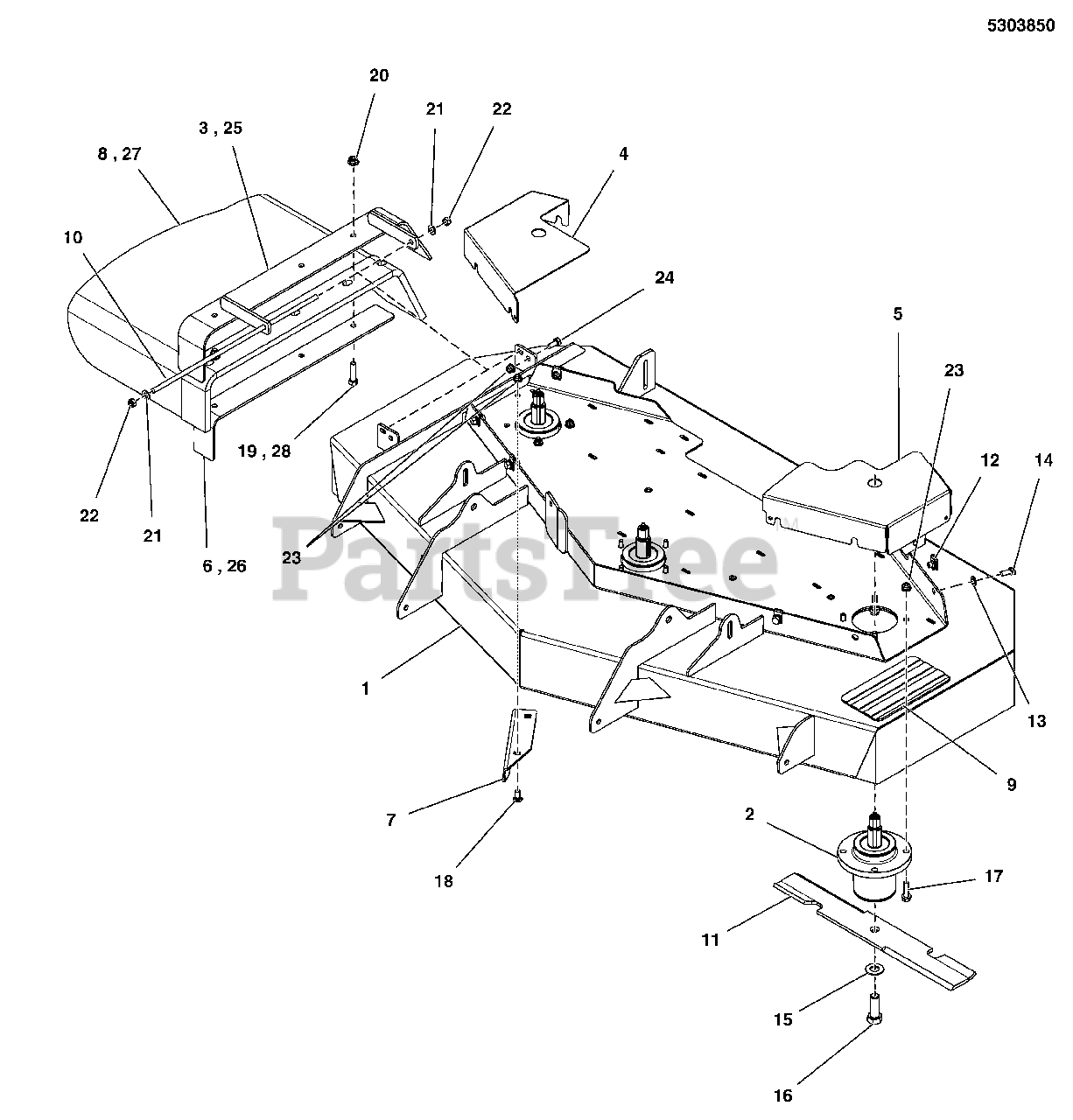

52" Mower Deck Group - Housing, Covers, Spindles, & Blades Parts Diagram

  • Title

1

Snapper 5600816YP

DECK SHELL W/ DECALS, 550-52, DOM
(Superseded to 5600947YP)

Note: (5412827D)

$1985.99

$

Usually ships in 2-12 days

0

2

Snapper 5061095SM

ASSM, SPINDLE, LOW PROFILE

$178.99

$

In Stock, Qty 12

0

3

Snapper 5410498AYP

WELD, FRAME, CHUTE, 52 - BLK

Note: (S/N: 2017100600 & Below)

$69.99

$

Usually ships in 2-12 days

0

4

Snapper 5412986DYP

GUARD, 52 DECK, RH - RED

$

$

Currently unavailable

5

Snapper 5410492DYP

GUARD, 52 DECK, LH - RED

$43.99

$

In Stock, only 1 left!

0

6

Snapper 5410404AYP

SUPPORT, DISCHARGE CHUTE, 52 - BLK

Note: (S/N: 2017100600 & Below)

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 540557YP

PLATE

$

$

Not available

8

Snapper 5410575YP

CHUTE,DISCHARGE,RUBBER 29.00-4 HOLE,BENT
(Superseded to 5402403SM)

Note: (S/N: 2017100600 & Below)

$186.99

$

Usually ships in 2-12 days

0

9

Snapper 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

In Stock, only 1 left!

0

10

Snapper 5061300SM

MOUNT, Chute

$13.99

$

In Stock, only 1 left!

0

11

Snapper 1756152SYP

BLADE, 18", SET OF THREE (3)(SV)

$

$

Not available

12

Snapper 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, Qty 12

0

13

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

14

Snapper 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 20+

0

15

Snapper 5025477SM

WASHER, Blade Bolt, 9/16"

$3.99

$

In Stock, Qty 20+

0

16

Snapper 770136

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, Qty 20+

0

18

Snapper 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

In Stock, only 4 left!

0

19

Snapper 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 CZ
(Superseded to 703406)

Note: (S/N: 2017100600 & Below)

$4.99

$

In Stock, only 1 left!

0

20

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

22

Snapper 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

23

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

24

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

Note: (80003531)

$5.49

$

In Stock, Qty 6

0

25

Snapper 5413400AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017100601 & Above)

$66.99

$

Usually ships in 2-12 days

0

26

Snapper 5413398AYP

SUPPORT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017100601 & Above)

$32.99

$

Usually ships in 2-12 days

0

27

Snapper 5413500YP

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017100601 & Above)

$231.99

$

Usually ships in 2-12 days

0

28

Snapper 5025146X12YP

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ

Note: (S/N: 2017100601 & Above)

$3.99

$

Usually ships in 2-12 days

0
