55055 (800) - Toro Lawn Tractor, Electric (SN: 001000001 - 001999999) (1971) REAR TIRE AND FENDER ASSEMBLY Parts Diagram

Lawn Tractor, Electric

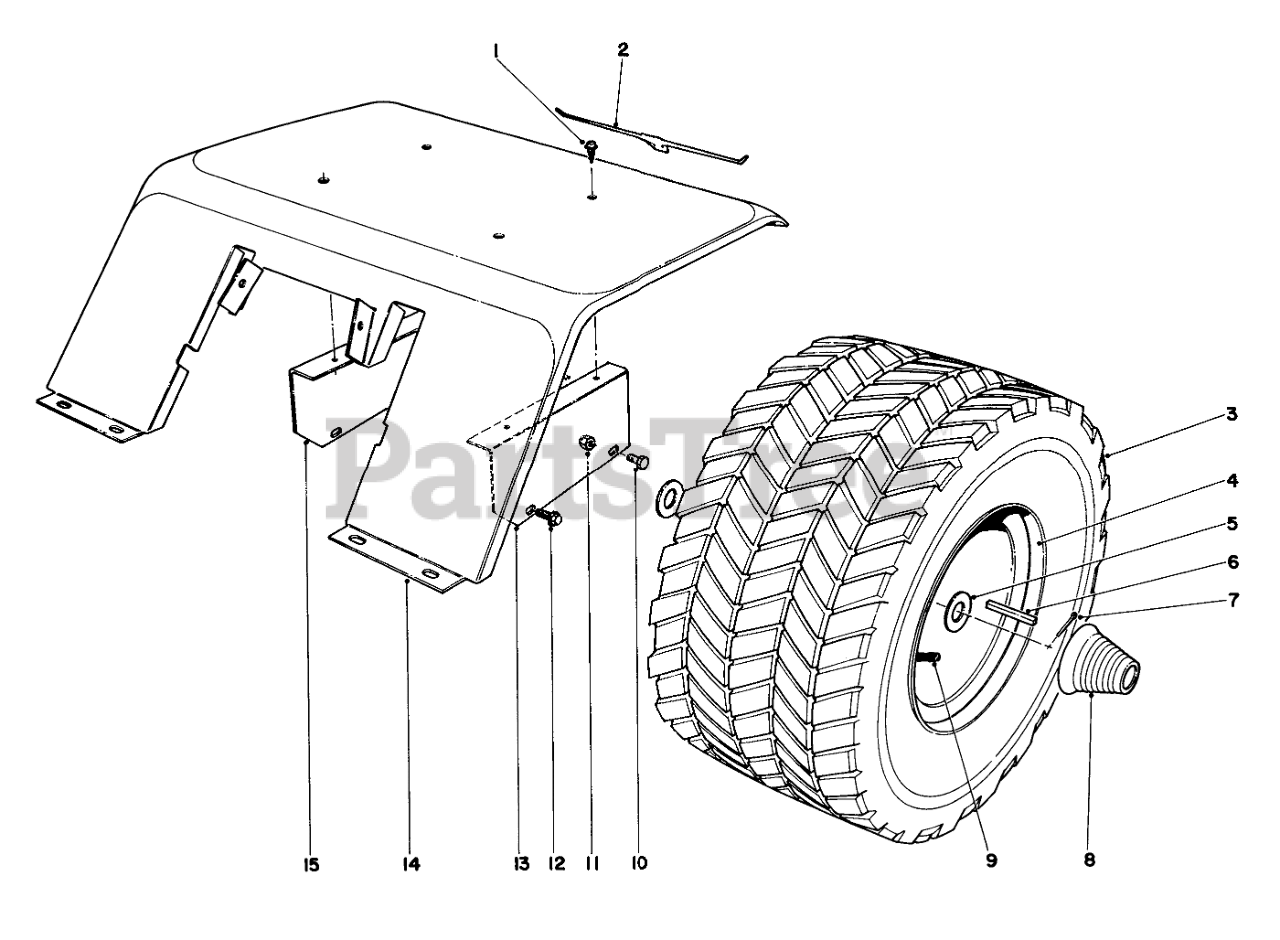

REAR TIRE AND FENDER ASSEMBLY Parts Diagram

  • Title

1

Toro 3210477

Hex Head Capscrew

$

$

Currently unavailable

2

Toro 7-8050

Decal

$

$

Currently unavailable

3

Toro 231-60

Tire

$

$

Currently unavailable

4

Toro 217-97

Rim

$

$

Currently unavailable

5

Toro 74115

Washer

$

$

Currently unavailable

6

Toro 5-1865

KEY

$

$

Not available

7

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

8

Toro 74116

Hub Cap Rear

$

$

Currently unavailable

9

Toro 232-21

VALVE -STEM
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

13

Toro 74120

Fender Support L.H.

$

$

Currently unavailable

14

Toro 7-5120

Fender

$

$

Currently unavailable

15

Toro 7-4118

Fender Support R.H.

$

$

Currently unavailable
