55055 (800) - Toro Lawn Tractor, Electric (SN: 001000001 - 001999999) (1971) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor, Electric

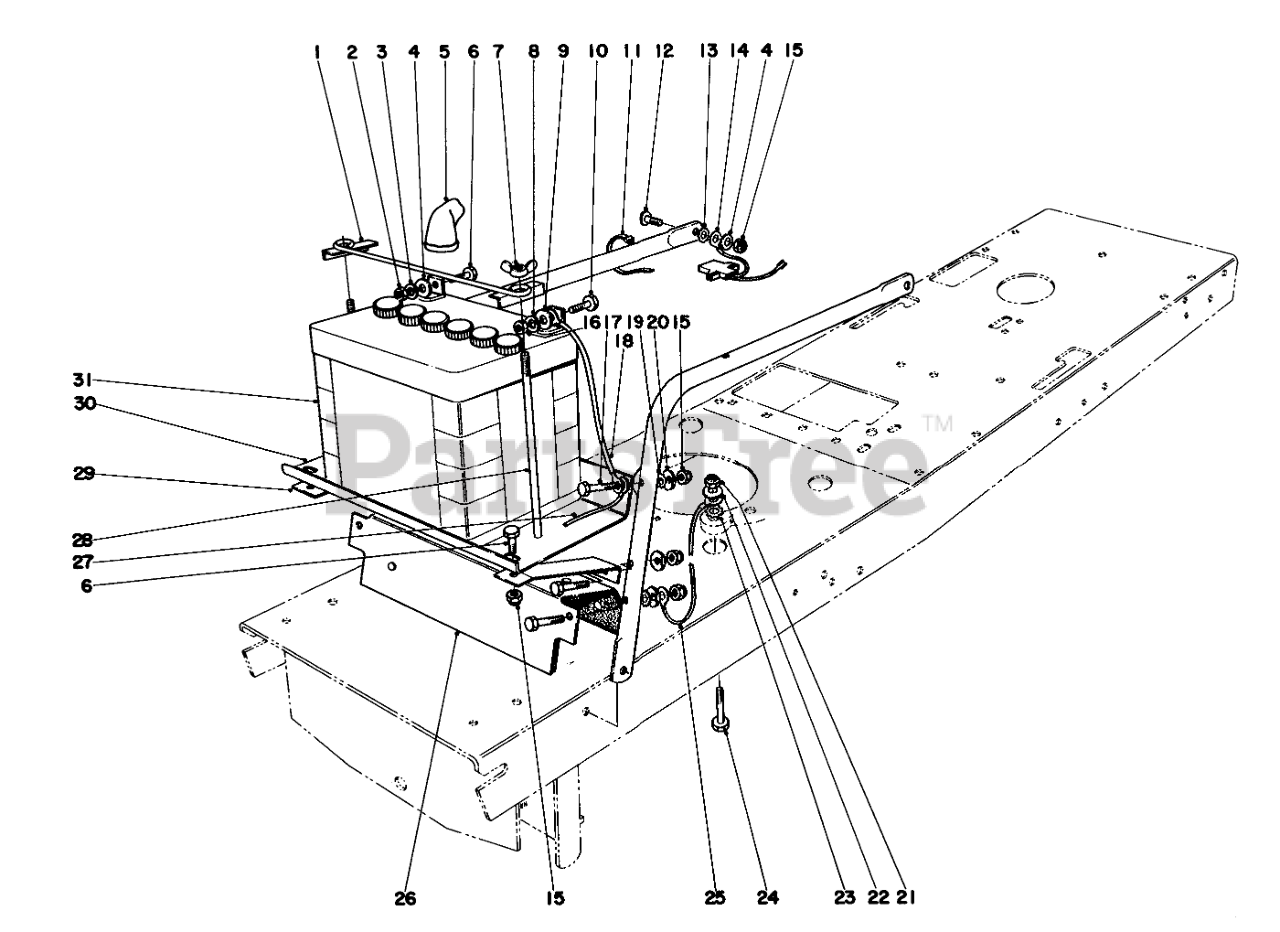

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 74534

Clamp Battery

$

$

Currently unavailable

2

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

3

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 218-331

BATTERY BOOT

$

$

Currently unavailable

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 7-3123

Cable Tie

$

$

Not available

12

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

14

Wire Assy. Trimmer Receptacle

$

$

Not available

15

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

17

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Wire Assembly Battery to Ground

Note: Use on opposite side only.

$

$

Not available

19

Toro 3255-7

WASHER-LOCK/EXT

Note: Use on opposite side only.

$1.99

$

Usually ships in 3-6 days

0

20

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

24

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Wire Assembly Engine to Ground

$

$

Not available

26

Toro 7-8040

Heat Shield

$

$

Currently unavailable

27

Wire Assembly Headlight to Ground

Note: Use on opposite side only.

$

$

Not available

28

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

29

Toro 7-7980

Brace Battery Shelf

$

$

Currently unavailable

30

Toro 7-7690

Battery Shelf

$

$

Currently unavailable

31

Toro 8-9490

Battery
(Superseded to 104-8162)

$

$

Not available
