55055 (800) - Toro Lawn Tractor, Electric (SN: 001000001 - 001999999) (1971) DASH AND TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor, Electric

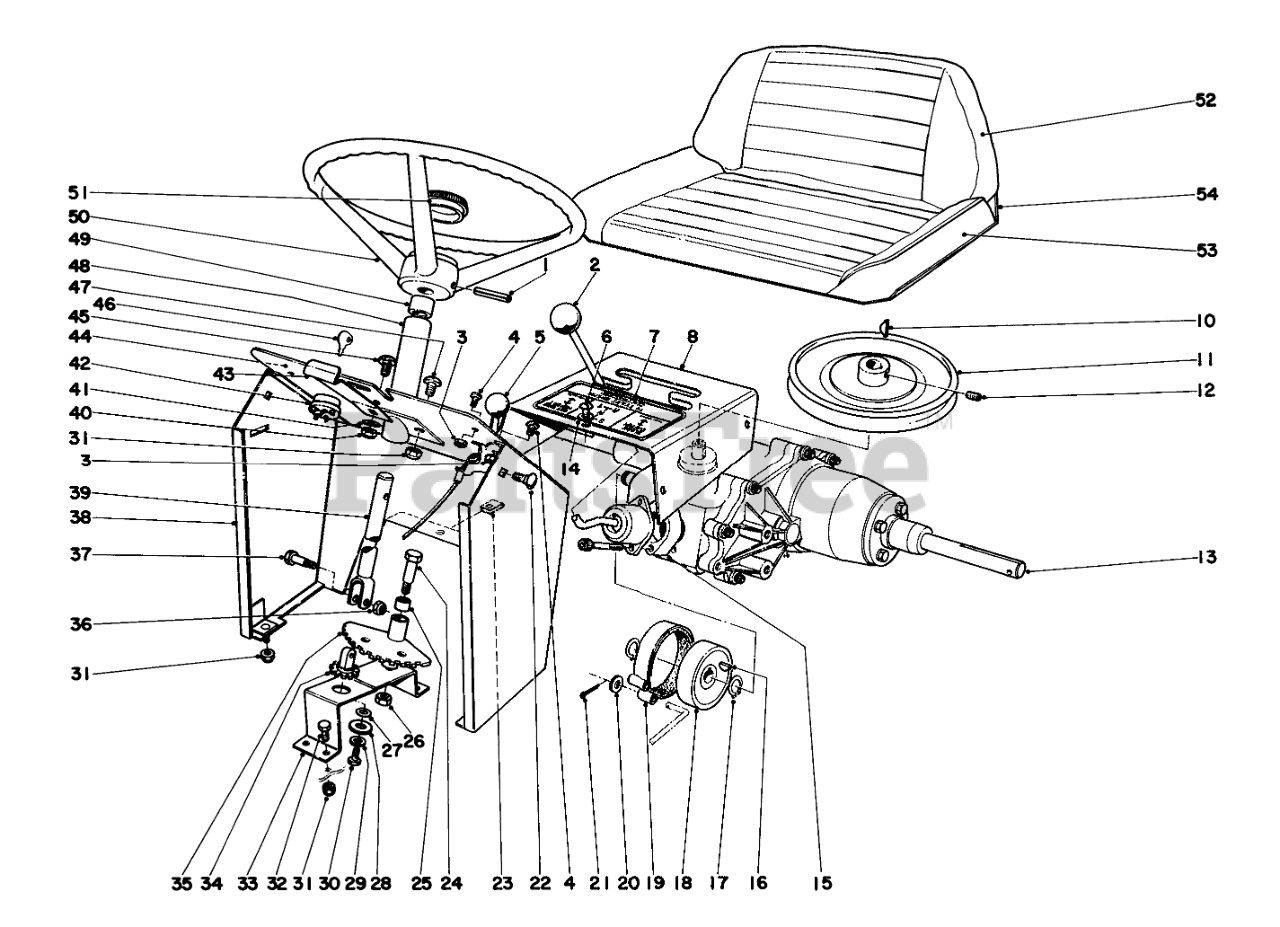

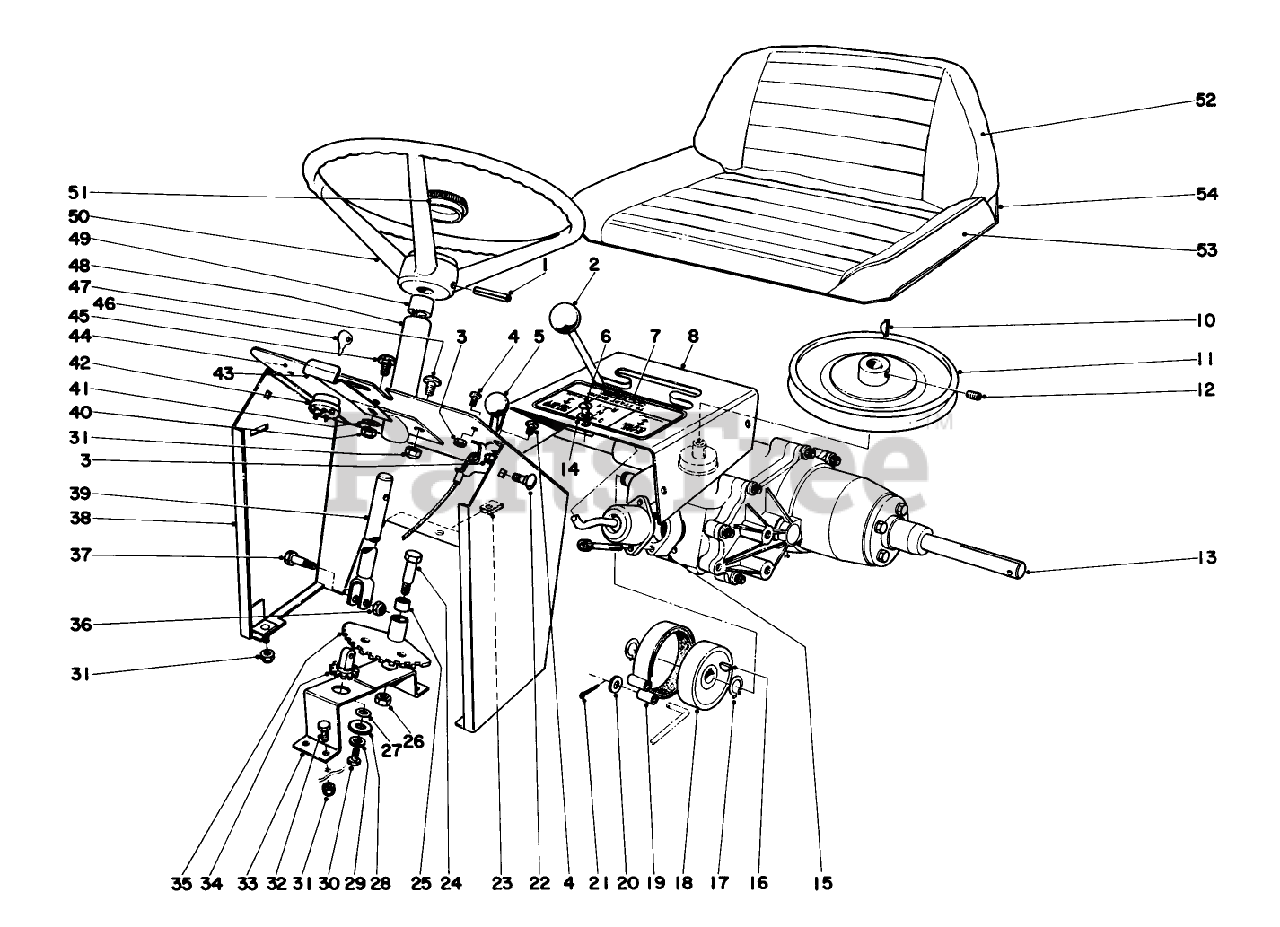

DASH AND TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

2

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

3

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

4

Toro 3290-305

Screw

$

$

Currently unavailable

5

Toro 7-5370

Throttle Control

$

$

Not available

6

Toro 3258-2

SCREW

$

$

Not available

7

Toro 7-8120

Decal-Shift Pattern

$

$

Currently unavailable

8

Toro 7-5360

Tunnel

$

$

Currently unavailable

10

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

11

Toro 7-4051

Pulley

$

$

Currently unavailable

12

Toro 3242-13

Set Screw
(Superseded to 3242-1)

$4.49

$

Usually ships in 3-6 days

0

13

Toro 7-4001

Transaxle

$

$

Not available

14

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-4264

Extension Shift Housing

$

$

Not available

16

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

17

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

18

Toro 7-4218

Brake Drum

$

$

Currently unavailable

19

Toro 7-4220

Brake Band

$

$

Not available

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 3290-192

SPEED NUT

$

$

Not available

24

Toro 7-5500

Shoulder Bolt

$

$

Currently unavailable

25

Toro 256-100

BUSHING

$

$

Not available

26

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

27

Toro 7-5990

Spacer

$

$

Not available

28

Toro 7-6640

Washer

$

$

Not available

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

Toro 7-4148

Bracket

$

$

Not available

34

Toro 7-6000

Pinion Steering

$

$

Not available

35

Toro 7-5920

Gear Steering

$

$

Not available

36

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

37

Toro 7-6010

Screw Shoulder

$

$

Currently unavailable

38

Toro 7-5590

Dash

$

$

Currently unavailable

39

Toro 7-5960

Steering Shaft

$

$

Currently unavailable

40

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

41

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 7-5240

STARTER SWITCH

$

$

Not available

43

Toro 7-5080

Hood Latch

$

$

Currently unavailable

44

Toro 7-8400

Decal Dash

$

$

Currently unavailable

45

Toro 3229-23

Carriage Bolt
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

46

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

47

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

48

Toro 7-4002

Steering Tube

$

$

Currently unavailable

49

Toro 256-167

BUSHING

$

$

Not available

50

Toro 238-5

Steering Wheel

$

$

Not available

51

Toro 7-4323

Steering Wheel Cap

$

$

Not available

52

Toro 351-49

Seat Back

$

$

Currently unavailable

53

Toro 351-50

Seat Cushion

$

$

Currently unavailable

54

Toro 351-51

Frame-Seat

$

$

Currently unavailable
