55055 (800) - Toro Lawn Tractor, Electric (SN: 001000001 - 001999999) (1971) CHASSIS ASSEMBLY Parts Diagram

Lawn Tractor, Electric

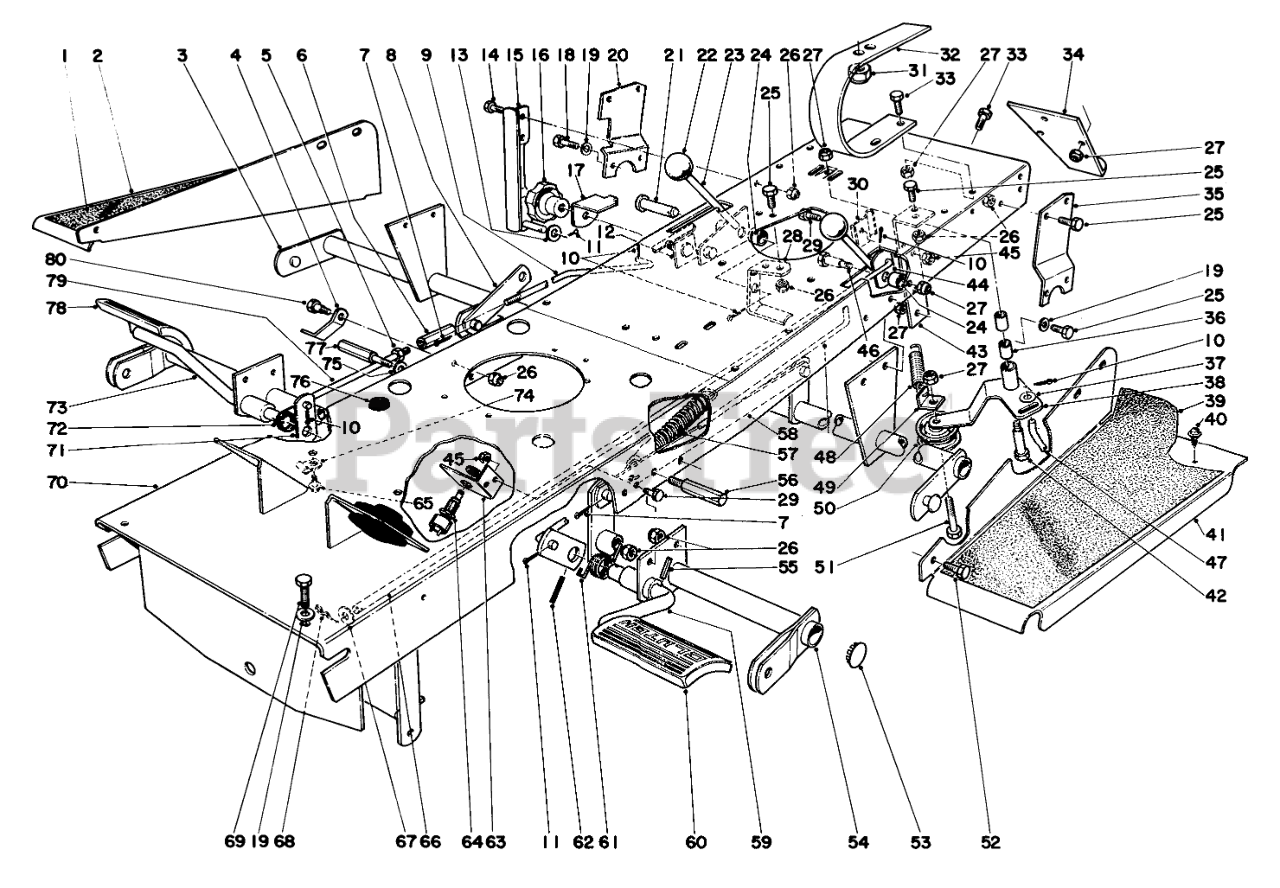

CHASSIS ASSEMBLY Parts Diagram

  • Title
1

Toro 7-4128

Pad R. H.

$

$

Not available

2

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

3

Toro 7-5770

Cross Tube

$

$

Currently unavailable

4

Toro 7-5470

Pedal Latch

$

$

Currently unavailable

5

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Toro 7-4193

Screw Brake Adjusting

$

$

Not available

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 7-4195

Lift Link

$

$

Currently unavailable

9

Toro 7-5510

Brake Rod Rear

$

$

Not available

10

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

12

Toro 7-3667

Knob Plate

$

$

Currently unavailable

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-6790

Support Hanger Brake

$

$

Currently unavailable

16

$

$

Not available

17

Toro 7-4098

Slide

$

$

Not available

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 7-5280

Support R.H.

$

$

Currently unavailable

21

Toro 283-24

Clevis Pin

$

$

Currently unavailable

22

Toro 233-24

Knob
(Superseded to 233-48)

$12.99

$

Usually ships in 3-6 days

0

23

Toro 7-4076

Lever

$

$

Currently unavailable

24

Toro 7-4070

Spacer

$

$

Currently unavailable

25

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

27

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

28

Toro 7-6020

Support Guide

$

$

Currently unavailable

29

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

30

Toro 7-6720

Belt Guide

$

$

Currently unavailable

31

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

32

Toro 7-7620

Seat Spring

$

$

Not available

33

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

34

Toro 7-4032

Hitch

$

$

Currently unavailable

35

Toro 7-5250

Support Left

$

$

Currently unavailable

36

Toro 256-172

BUSHING

$5.99

$

Usually ships in 3-6 days

0

37

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 7-4043

Idler Arm Incl. Ref. #36

$

$

Currently unavailable

39

Toro 7-4130

Pad Left

$

$

Not available

40

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

41

Toro 7-4034

Footrest

$

$

Currently unavailable

42

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

43

Toro 7-5290

Support Transaxle

$

$

Currently unavailable

44

Toro 7-4073

Lever

$

$

Currently unavailable

45

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

46

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

47

Toro 7-4035

Clutch Rod

$

$

Currently unavailable

48

Toro 7-4373

Tension Spring

$

$

Not available

49

$

$

Not available

50

Toro 7-0448

Idler Pulley
(Superseded to 12-6700)

$30.99

$

In Stock, only 1 left!

0

51

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

53

Toro 2410-26

Plug Button

$

$

Currently unavailable

54

Toro 7-4005

Cross Tube Front

$

$

Currently unavailable

55

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

56

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

57

Toro 7-4292

Spring Counterbalance

$

$

Not available

58

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

59

Toro 7-4055

Pedal L.H.

$

$

Currently unavailable

60

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

61

Toro 7-4238

Pedal Return Spring

$

$

Not available

62

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

63

Toro 7-8150

Mounting Bracket

$

$

Currently unavailable

64

Toro 7-5540

Switch Spno

$

$

Currently unavailable

65

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

66

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

67

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

68

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

69

Toro 32104-28

He Ha. Screw

$

$

Not available

70

Toro 7-7420

Frame

$

$

Currently unavailable

71

Toro 7-4191

Lever Pedal Shaft

$

$

Currently unavailable

72

Toro 7-4240

Pedal Return Spring

$

$

Not available

73

Toro 7-5660

Pedal R.H.

$

$

Currently unavailable

74

Toro 2412-26

Clamp-Cable

$

$

Currently unavailable

75

Toro 7-0532

Washer

$

$

Currently unavailable

76

Toro 237-62

GROMMET

$

$

Currently unavailable

77

Toro 7-4590

Brake Stop

$

$

Currently unavailable

78

Toro 7-3900

PAD-BRAKE

$31.99

$

In Stock, only 3 left!

0

79

Toro 7-5560

Brake Rod Front

$

$

Not available

80

Toro 7-0163

Shoulder Bolt
(Superseded to 37-8770)

$1.49

$

In Stock, only 2 left!

0
