55055 (800) - Toro Lawn Tractor, Electric (SN: 001000001 - 001999999) (1971) 36" MOWER ASSEMBLY Parts Diagram

Lawn Tractor, Electric

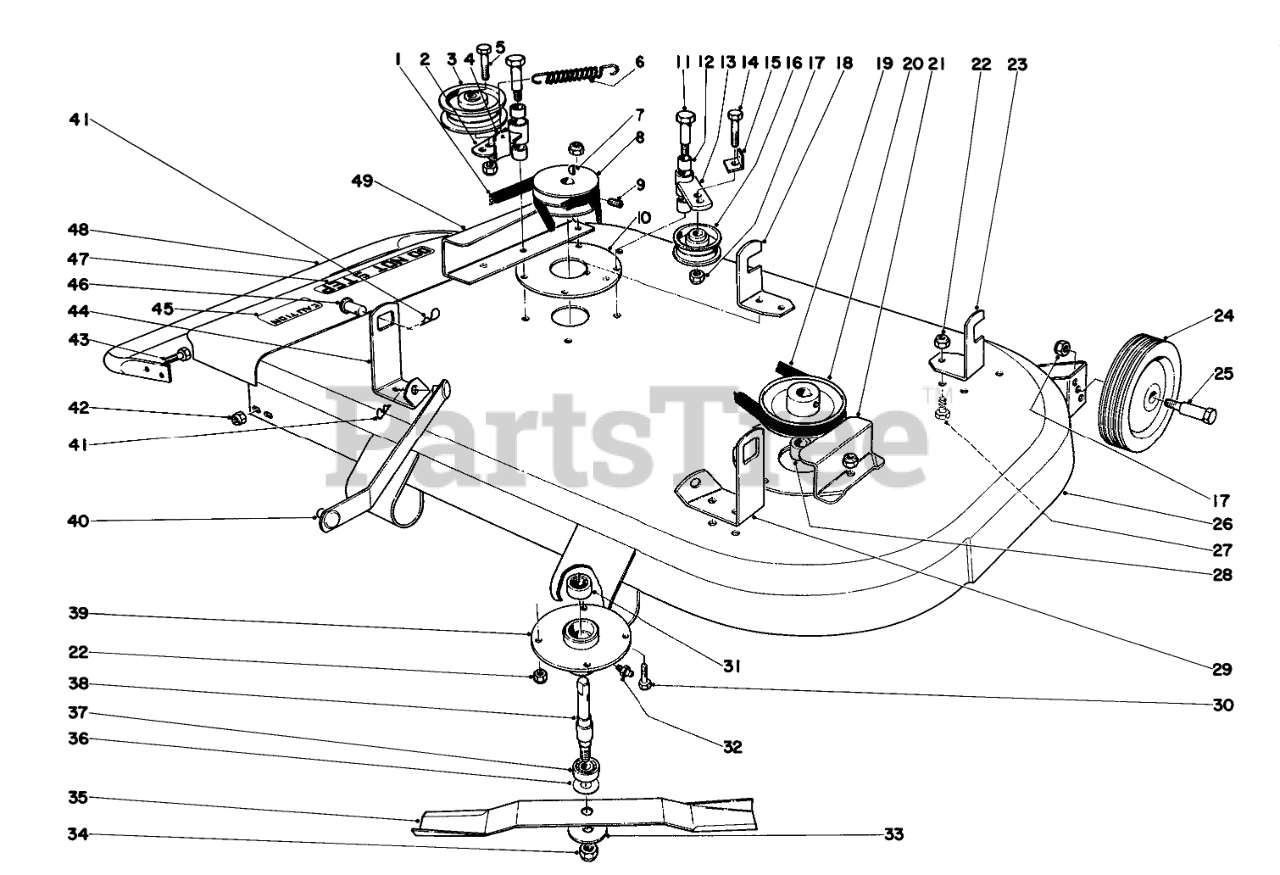

36" MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4230

Belt
(Superseded to 7-9160)

$

$

Not available

2

Toro 7-3780

Idler Plate Incl. Ref. #11

$

$

Currently unavailable

3

Toro 7-8680

Idler Pulley

$

$

Currently unavailable

4

Toro 7-8670

belt Retainer

$

$

Not available

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 7-3977

Spring Tension

$

$

Not available

7

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

8

Toro 7-3788

BLD SPDLE PULLEY (MACH)

$

$

Not available

9

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 7-0252

Washer

$

$

Not available

11

Toro 7-3878

SHOULDER BOLT

$

$

Not available

12

Toro 256-172

BUSHING

$6.49

$

Usually ships in 3-6 days

0

13

Toro 7-3781

Idler Plate

$

$

Not available

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 7-3976

Clip

$

$

Not available

16

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

17

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

18

Toro 7-4210

Bracket

$

$

Currently unavailable

19

Toro 7-4228

BELT

$

$

Not available

20

Toro 7-3796

Pulley

$

$

Not available

21

Toro 7-4212

Belt Guard

$

$

Currently unavailable

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 7-4208

Bracket Mower

$

$

Currently unavailable

24

Toro 241-87

Wheel

$

$

Not available

25

Toro 7-0262

Axle

$

$

Currently unavailable

26

Toro 7-7610

Housing

$

$

Not available

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 7-3747

Spacer

$

$

Not available

29

Toro 7-4206

Bracket-Mower

$

$

Not available

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

32

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

33

Toro 7-0253

WASHER

$

$

Not available

34

Toro 32152-6

NUT-LOCK, CONE

$9.49

$

Usually ships in 3-6 days

0

35

Toro 7-2464

Blade

$

$

Currently unavailable

36

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

37

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

38

Toro 7-3744

Blade Spindle

$

$

Not available

39

Toro 7-0287

MOWER SPINDLE HOUSING

$

$

Not available

40

Toro 7-4111

Tow Bar

$

$

Not available

41

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

42

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

43

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

44

Toro 7-4207

Bracket-Mower

$

$

Not available

45

Toro 7-6630

Decal

$

$

Currently unavailable

46

Toro 7-4110

Pin

$

$

Not available

47

Toro 7-8200

Decal

$

$

Currently unavailable

48

Toro 7-4211

Mower Guard

$

$

Not available

49

Toro 7-4317

Guard Mower

$

$

Not available
