55051 (800) - Toro Lawn Tractor, Electric (SN: 000000001 - 000999999) (1970) TRANSAXLE MODEL NO. 615 PARTS LIST Parts Diagram

Lawn Tractor, Electric

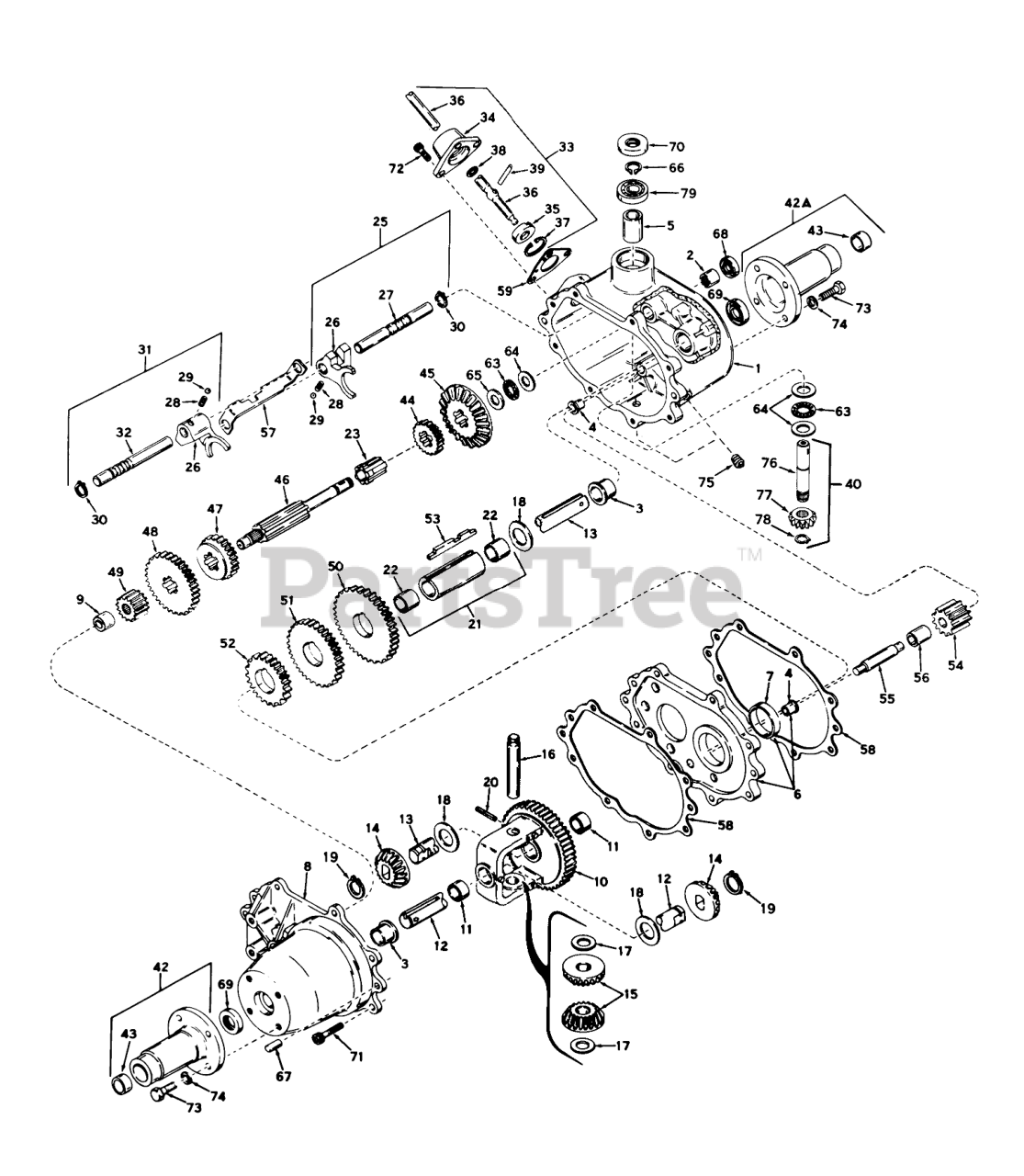

TRANSAXLE MODEL NO. 615 PARTS LIST Parts Diagram

  • Title

1

Toro 770051

Case Assy., Transaxle (Incl. Nos. 2 thru 5)

$

$

Currently unavailable

2

Toro 780086

Bearing-Needle

$

$

Currently unavailable

3

Toro 780059

Bronze Bearing

$

$

Currently unavailable

4

Toro 780060

Bronze Bearing

$

$

Currently unavailable

5

Toro 780061

Bronze Bearing

$

$

Currently unavailable

6

Toro 786033

Plate Assy., Center (Incl. Nos. 4 & 7)

$

$

Currently unavailable

7

Toro 780062

Bronze Bearing

$

$

Currently unavailable

8

Toro 772042

Cover Assy., Transaxle (Incl. Nos. 3 & 9)

$

$

Currently unavailable

9

Toro 780063

Needle Bearing

$

$

Currently unavailable

10

Toro 778053

Gear Assy., Differential (Incl. No. 11)

$

$

Currently unavailable

11

Toro 780064

Bushing

$

$

Currently unavailable

12

Toro 774152

Axle, Left Hand

$

$

Currently unavailable

13

Toro 774152

Axle, Left Hand

$

$

Currently unavailable

14

Toro 778067

Bevel Gear

$

$

Currently unavailable

15

Toro 778068

Gear Pinion

$

$

Currently unavailable

16

Toro 786034

Drive Pin

$

$

Currently unavailable

17

Toro 780065

Thrust Washer

$

$

Currently unavailable

18

Toro 780001

Washer

$

$

Currently unavailable

19

Toro 788038

Snap Ring

$

$

Currently unavailable

20

Toro 792040

Pin-Roll

$

$

Currently unavailable

21

Toro 786035

Sleeve Assy., Countershaft (Incl. No. 22)

$

$

Currently unavailable

22

Toro 780066

Bronze Bearing

$

$

Currently unavailable

23

Toro 776090

Shaft, Idler

$

$

Currently unavailable

25

Toro 784079

Rod Assy., Shift (1st & Rev.) (Incl. Nos. 26 thru 30)

$

$

Currently unavailable

26

Toro 784004

Shift Fork

$

$

Currently unavailable

27

Toro 784083

Shift Rod

$

$

Currently unavailable

28

Toro 792004

Piston ASM

$

$

Currently unavailable

29

Toro 792004

Piston ASM

$

$

Currently unavailable

30

Toro 792017

Ring-Snap

$

$

Currently unavailable

31

Toro 784084

Rod Assy., Shift (2nd & 3rd) (Incl. Nos. 26, 28, 29, 30 & 32)

$

$

Currently unavailable

32

Toro 784085

Shift Rod

$

$

Currently unavailable

33

Toro 784161

Lever & Housing Assy., Shift (Incl. Nos. 34 thru 39)

$

$

Currently unavailable

34

Toro 784088

Shift Lever Housing

$

$

Currently unavailable

35

Toro 784094

Keeper-Shift Lever

$

$

Currently unavailable

36

Toro 784162

Lever, Shift

$

$

Currently unavailable

37

Toro 792016

Ring-Snap

$

$

Currently unavailable

38

Toro 792001

O Ring

$

$

Currently unavailable

39

Toro 792002

Roll Pin

$

$

Currently unavailable

40

Toro 776102

Shaft & Gear Assy., Input (Incl. Nos. 76, 77 & 78)

$

$

Currently unavailable

42

Toro 782036

Housing Assy., Axle (Incl. No. 43)

$

$

Currently unavailable

42A

Toro 782038

Housing Assy., Axle (Incl. No. 43)

$

$

Currently unavailable

43

Toro 780091

O Ring

$

$

Currently unavailable

44

Toro 778024

Gear (10 teeth)

$

$

Currently unavailable

45

Toro 778057

Bevel Gear (33 teeth)

$

$

Currently unavailable

46

Toro 776089

Shaft, Shifter & Brake

$

$

Currently unavailable

47

Toro 778058

Gear, Shifting (2nd & 3rd)

$

$

Currently unavailable

48

Toro 778059

Gear, Shifting (1st & Rev.)

$

$

Currently unavailable

49

Toro 778060

Spur Gear (12 teeth)

$

$

Currently unavailable

50

Toro 778061

Countershaft Drive Gear (39 teeth)

$

$

Currently unavailable

51

Toro 778062

Gear (34 teeth)

$

$

Currently unavailable

52

Toro 778063

Countershaft Gear (25 teeth)

$

$

Currently unavailable

53

Toro 792034A

Key, Countershaft

$

$

Currently unavailable

54

Toro 778064

Reverse Idler

$

$

Currently unavailable

55

Toro 776057

Reverse Idler Shaft

$

$

Currently unavailable

56

Toro 786036

Reverse Idler Spacer

$

$

Currently unavailable

57

Toro 784087

Shifter Stop

$

$

Currently unavailable

58

Toro 788033

Gasket, Case & Cover

$

$

Currently unavailable

59

Toro 788003

Shift Lever Housing Gasket

$

$

Currently unavailable

63

Toro 780071

Bearing-Thrust

$

$

Currently unavailable

64

Toro 780072

Washer

$

$

Currently unavailable

65

Toro 780073

Washer, Thrust

$

$

Currently unavailable

66

Toro 792035

Ring-Snap

$

$

Currently unavailable

67

Toro 786026

Dowel Pin

$

$

Currently unavailable

68

Toro 788043

Seal, Oil

$

$

Currently unavailable

69

Toro 788009

Oil Seal

$

$

Currently unavailable

70

Toro 788035

Oil Seal

$

$

Currently unavailable

71

Toro 792036

Ring-Retaining

$

$

Currently unavailable

72

Toro 792051

Screw, Socket Hd. Cap

$

$

Currently unavailable

73

Toro 792037

Screw-Hex Hd.

$

$

Currently unavailable

74

Toro 792029

Lockwasher

$

$

Currently unavailable

75

Toro 792039

Plug-Pipe

$

$

Currently unavailable

76

Toro 776103

Shaft, Input

$

$

Currently unavailable

77

Toro 778077

Pinion, Input

$

$

Currently unavailable

78

Toro 788040

Ring-Retainer

$

$

Currently unavailable

79

Toro 780093

Bearing, Ball

$

$

Currently unavailable
