55051 (800) - Toro Lawn Tractor, Electric (SN: 000000001 - 000999999) (1970) ENGINE MODEL 190702 (RECOIL) Parts Diagram

Lawn Tractor, Electric

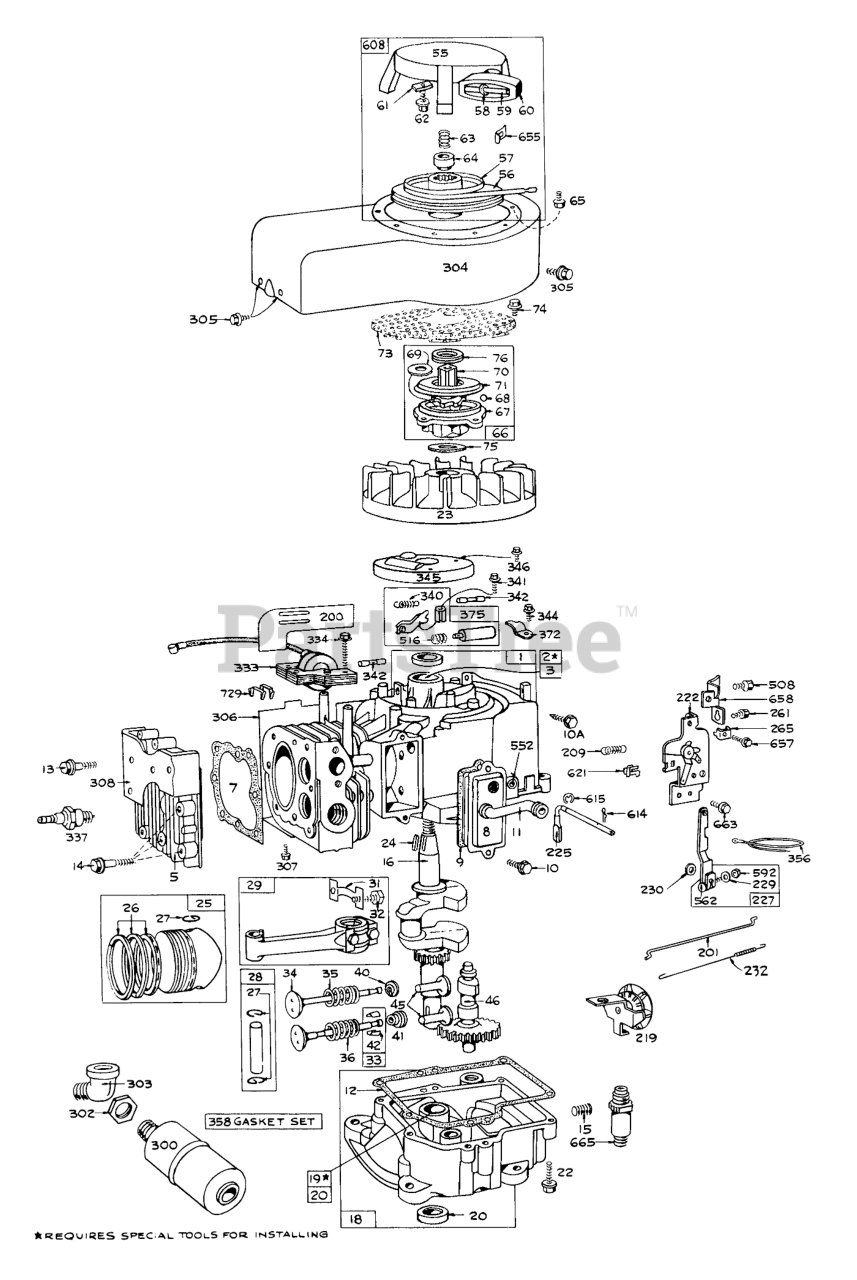

ENGINE MODEL 190702 (RECOIL) Parts Diagram

  • Title

1

Toro 390380

Cylinder Assembly

$

$

Currently unavailable

2

Briggs & Stratton 295962

Bushing-Cylinder

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

5

Briggs & Stratton 211778

Head-Cylinder

$

$

Not available

7

Briggs & Stratton 270430

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 299848

Breather Assembly
(Superseded to 495737)

$

$

Not available

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

10A

Briggs & Stratton 93536

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280005

Grommet
(Superseded to 692293)

$10.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27750

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577

$8.99

$

In Stock, Qty 9

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93210

Screw-Cylinder Head
(Superseded to 93210GS)

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93211

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 93418

Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 261083

Crankshaft
(Superseded to 492451)

$217.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 298616

Sump-Oil
(Superseded to 392548)

$110.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing

$

$

Not available

20

Briggs & Stratton 298423

Seal-OiI
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93205

Screw-Sump Mtg. Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 298260

Flywheel

$

$

Not available

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Toro 390347

Piston Assembly-Std.

$

$

Currently unavailable

Toro 390348

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 390349

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 390350

Piston Assy., .030" O.S.

$

$

Currently unavailable

26

Toro 299569

Ring Set-Piston-Std. Consists of:

$

$

Currently unavailable

Toro 211637

Ring,Piston,Comp.,Top Std.

$

$

Currently unavailable

Toro 211636

Ring, Piston, Comp., Center, Std.

$

$

Currently unavailable

Toro 211635

Ring,Piston,Oil,Std.

$

$

Currently unavailable

Toro 299570

Yoke Bushing

$

$

Currently unavailable

Toro 211649

Ring,Piston,Comp.,Top,.010" O.S.

$

$

Not available

Toro 211650

Ring,Piston,Comp.,Center,.010" O.S.
(Superseded to 705730)

$

$

Not available

Toro 211651

Ring Piston, Oil, .010" O.S.

$

$

Currently unavailable

Toro 299571

Ring Set-Piston-.020" O.S. Consists of:

$

$

Currently unavailable

Toro 211653

Ring,Piston,Comp.,Top,.020" O.S.

$

$

Currently unavailable

Toro 211654

Ring-Piston, Comp., Center, .020" O.S.
(Superseded to 743078)

$

$

Not available

Toro 211655

Ring-Piston, Oil, .020" O.S.

$

$

Currently unavailable

Toro 299572

Ring Set-Piston-.030" O.S. Consists of:

$

$

Currently unavailable

Toro 211657

Ring, Piston, Comp.

$

$

Not available

Toro 211658

Ring-Piston, Comp., Center, .030" O.S.

$

$

Not available

Toro 211659

Ring-Piston, Oil, .030" O.S.

$

$

Currently unavailable

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Assembly-Piston-Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295841

Pin-Piston (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390402

Rod-Connecting

$84.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Conn. Rod Screw

$

$

Not available

32

Briggs & Stratton 92659

Screw Conn. Rod
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

VaIve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, Qty 5

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210728

Gear-Cam
(Superseded to 691167)

$36.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 295272

Housing-Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, Qty 11

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Rewind Starter

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mtg.

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93106

Screw-Rewind Starter Housing Mounting
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 211383

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66718

Washer-Thrust
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260971

Link-Govemor

$8.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260723

Spring-Governor

$4.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 298614

Oil Slinger, Gov. Gear and Bracket Assembly

$18.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 298998

Plate-Gov. Control

$37.99

$

Usually ships in 2-12 days

0

225

Briggs & Stratton 230759

Shaft-Gov Lever
(Superseded to 231071)

$7.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 298303

Lever Assy.-Governor

$7.49

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 260584

Spring-Governor Link
(Superseded to 692207)

$6.99

$

In Stock, only 3 left!

0

261

Briggs & Stratton 93105

Screw-Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

300

Briggs & Stratton 390249

Muffler-Exhaust
(Superseded to 393010S)

$22.99

$

In Stock, Qty 5

0

302

Briggs & Stratton 91242

Locknut-Muffler
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

303

Briggs & Stratton 91219

Elbow-Muffler 45deg. Street
(Superseded to 94089)

$13.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299853

Housing-Blower
(Superseded to 491596)

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 221898

Screw-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 221901

Cover-Cylinder Head

$9.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 222117

Cover-Breaker Point

$5.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 299500

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

Briggs & Stratton 294628

Set

$

$

Not available

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

508

Briggs & Stratton 93294

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230927

Bushing-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 295001

Starter Assy, Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

655

Briggs & Stratton 221014

Anchor Spring

$5.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

658

Briggs & Stratton 221827

Strap-Control Plate

$

$

Not available

665

Briggs & Stratton 296768

Oil Minder
(Superseded to 592239)

$35.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

CIip-Wire

$3.49

$

Usually ships in 2-12 days

0
