55051 (800) - Toro Lawn Tractor, Electric (SN: 000000001 - 000999999) (1970) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor, Electric

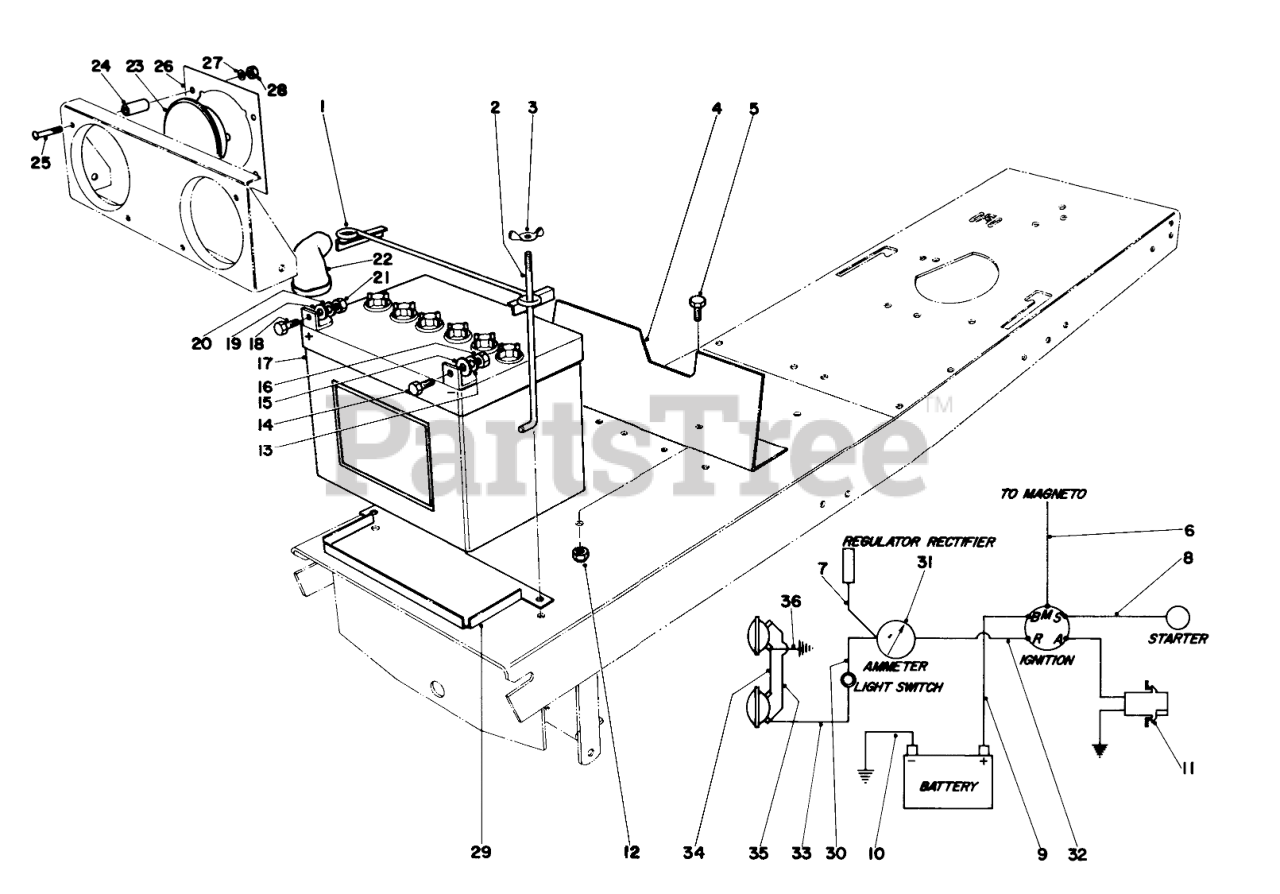

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 7-0534

Battery Clamp

$

$

Currently unavailable

2

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

3

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

4

Toro 7-4328

Heat Shield

$

$

Currently unavailable

5

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

6

Toro 7-6220

Wire Switch to Battery

$

$

Currently unavailable

8

Toro 7-6140

Wire Assy. Switch to Starter

$

$

Currently unavailable

9

Toro 7-6150

Wire Assy. Switch to Battery

$

$

Currently unavailable

10

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

11

Toro 7-5230

Wire Assembly

$

$

Not available

12

32152-1S

Nut

$

$

Not available

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

239-13S

Battery

$

$

Not available

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 7-0024

Washer

$

$

Currently unavailable

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

22

218-331S

Battery Boot

$

$

Not available

23

Toro 7-1646

HEAD LAMP

$

$

Currently unavailable

24

Toro 7-4254

Spacer

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Toro 7-4320

Headlight Holder

$

$

Currently unavailable

27

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

28

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

29

Toro 7-5390

Retainer Battery

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Toro 7-6130

Ammeter
(Superseded to 33-0990)

$

$

Not available

32

Toro 7-6180

Wire Assy. Ammeter to Switch

$

$

Currently unavailable

33

Toro 7-6190

Wire Assy.

$

$

Currently unavailable

34

Toro 7-3538

Wire 960

$

$

Currently unavailable

35

Toro 7-3543

Wire 960

$

$

Currently unavailable

36

Toro 7-3541

Wire Assy.-Red

$

$

Currently unavailable
