55050 (935) - Toro Lawn Tractor, Electric (SN: 009000001 - 009999999) (1969) MAGNETO NO. 610766 ASSEMBLY 935E Parts Diagram

Lawn Tractor, Electric

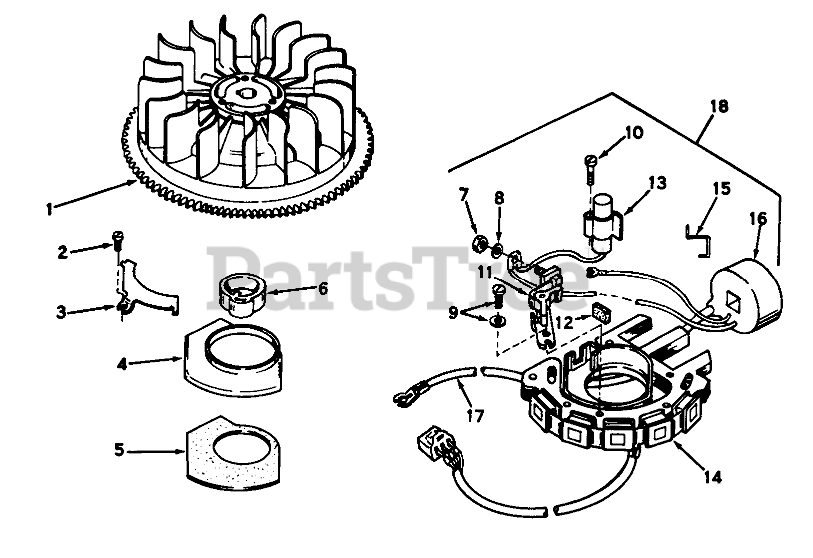

MAGNETO NO. 610766 ASSEMBLY 935E Parts Diagram

  • Title

1

Tecumseh 32333

Flywheel

$

$

Currently unavailable

2

Tecumseh 610762

Screw, Dust Cover
(Superseded to 650654)

$1.99

$

In Stock, only 2 left!

0

3

Tecumseh 32435

Clamp, Dust Cover

$

$

Currently unavailable

4

Tecumseh 32365

Cover, Dust

$

$

Currently unavailable

5

Tecumseh 32366

Gasket, Dust Cover

$

$

Currently unavailable

6

Tecumseh 32334

Cam, Breaker

$

$

Not available

7

Tecumseh 610408

DECAL

$

$

Currently unavailable

8

Tecumseh 610385

Washer

$

$

Not available

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 32434

Contact Assy., Breaker

$31.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

13

Tecumseh 610767

Condenser
(Superseded to 610767A)

$

$

Not available

14

Tecumseh 610764

Stator Core & Generating Coils

$

$

Currently unavailable

15

Tecumseh 31311

Clip, Coil

$

$

Not available

16

Tecumseh 610768

Coil
(Superseded to 30560A)

$48.99

$

In Stock, only 1 left!

0

17

Tecumseh 30554

Wire, Lead

$

$

Not available

18

Tecumseh 610765

Stator Plate Assy. (Incl. Nos. 2 thru 5 & 7 thru 17)

$

$

Currently unavailable
