55050 (935) - Toro Lawn Tractor, Electric (SN: 009000001 - 009999999) (1969) 935E ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor, Electric

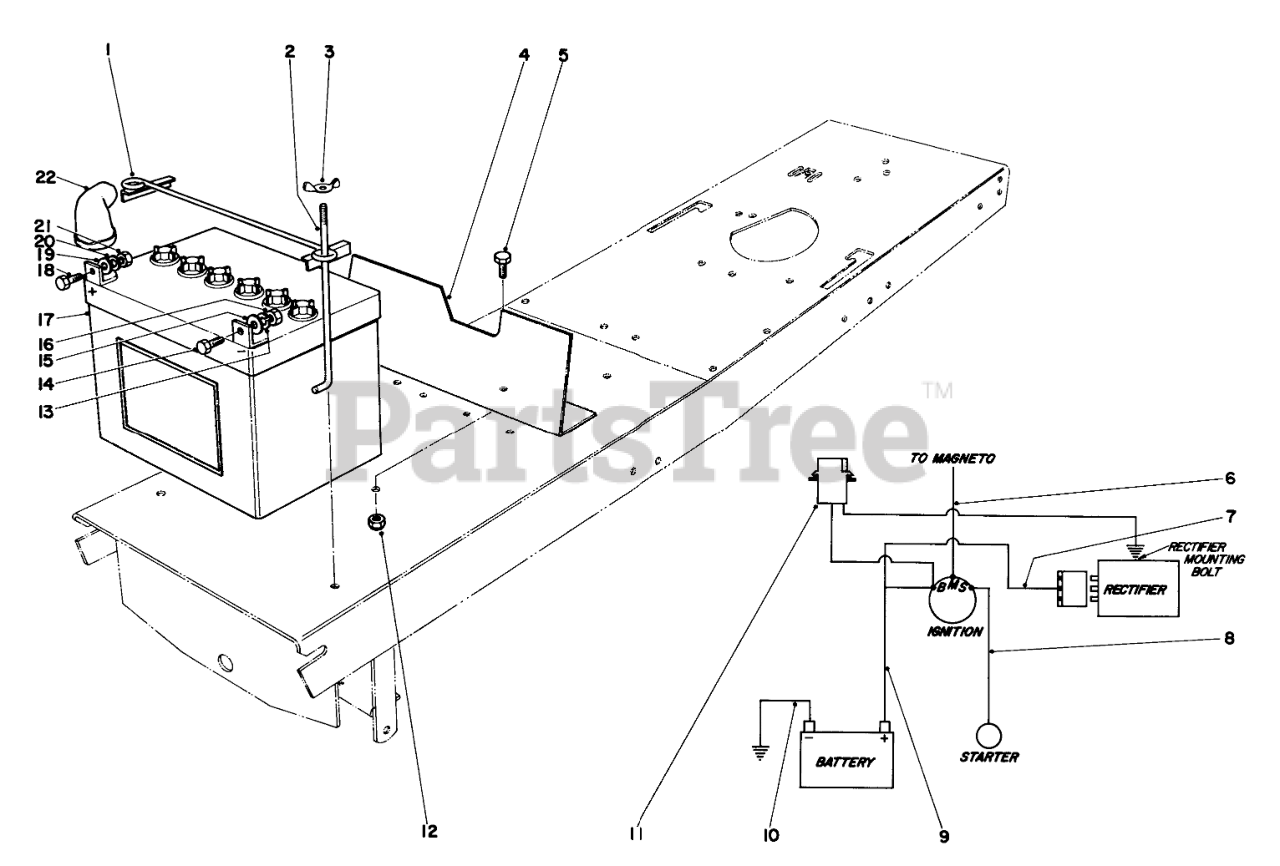

935E ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0534

Battery Clamp

$

$

Currently unavailable

2

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

3

Toro 32103-12

NUT-WING

$1.99

$

In Stock, only 3 left!

0

4

Toro 7-4328

Heat Shield

$

$

Currently unavailable

5

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

6

Toro 7-4282

Wire Assy. Switch To Magneto

$

$

Currently unavailable

7

Wire Assy. Switch to Rectifier

Note: See your local Tecumseh Dealer

$

$

Not available

8

Toro 7-4081

Wire Assy. Switch to Starter

$

$

Currently unavailable

9

Toro 7-4255

Wire Assy. Switch to Battery

$

$

Currently unavailable

10

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

11

Toro 7-4490

Wire Assy.

$

$

Currently unavailable

12

32152-1S

Nut

$

$

Not available

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

239-13S

Battery

$

$

Not available

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 7-0024

Washer

$

$

Currently unavailable

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

22

218-331S

Battery Boot

$

$

Not available
