5503-01 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

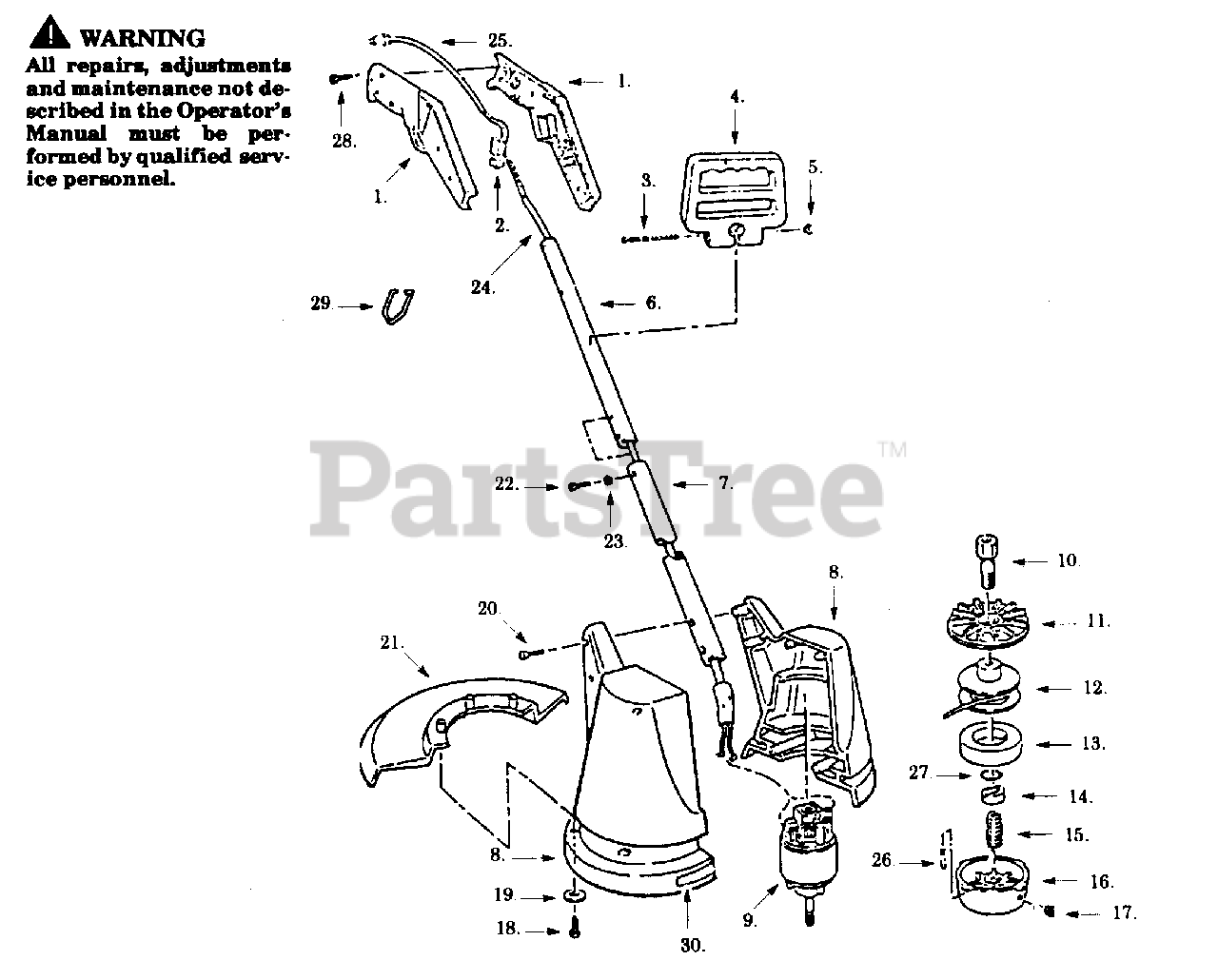

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534356704

R.H./L.H. Handle

$8.99

$

Usually ships in 3-10 days

0

2

Poulan 534193001

Trigger Switch

$

$

Not available

3

Poulan 534218100

Bolt

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534282705

Side Handle

$

$

Not available

5

Poulan 534143700

Wing Nut

$

$

Not available

6

Poulan 534222502

Upper Handle Tube

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 534223200

Lower Handle Tube

$

$

Not available

8

Poulan 534271614

R.H./L.H. Housing

$21.99

$

Usually ships in 3-10 days

0

9

Poulan 534225001

Motor

$

$

Not available

10

Poulan 534223325

Drive Adapter

$

$

Not available

11

Poulan 534157305

Rear Plate

$14.99

$

In Stock, only 1 left!

0

12

Poulan 534159705

Spool & Line

$

$

Not available

13

Poulan 534158600

Foam Pad

$

$

Not available

14

Poulan 534156205

Drive Adapter Nut

$

$

Not available

15

Poulan 534157401

Spring

$

$

Not available

16

Poulan 534159805

Hub

$

$

Not available

17

Poulan 534157600

Eyelet

$3.49

$

Usually ships in 3-10 days

0

18

Poulan 534193800

Screw

$

$

Not available

19

Poulan 534653000

Washer

$1.49

$

Usually ships in 3-10 days

0

20

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 534272214

Line Cutter Guard

$

$

Not available

22

Poulan 534970001

Screw

$

$

Not available

23

Poulan 534713000

Lockwasher

$1.49

$

Usually ships in 3-10 days

0

24

Poulan 534162401

Harness

$24.99

$

Usually ships in 3-10 days

0

25

Poulan 534234500

Power Cord

$

$

Not available

26

Poulan 534270300

Cotter Pin

$

$

Not available

27

Poulan 534316201

O-Ring

$

$

Not available

28

Poulan 534193700

Screw

$

$

Not available

29

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534265101

15" Cut Label (Not a serviceable part)

$

$

Not available

31

Poulan 534881691

Operator Manual

Note: Not Shown.

$

$

Not available
