5500GCXe (1787-0) - Generac 5,500 Watt Portable Generator Control Panel Parts Diagram

5,500 Watt Portable Generator

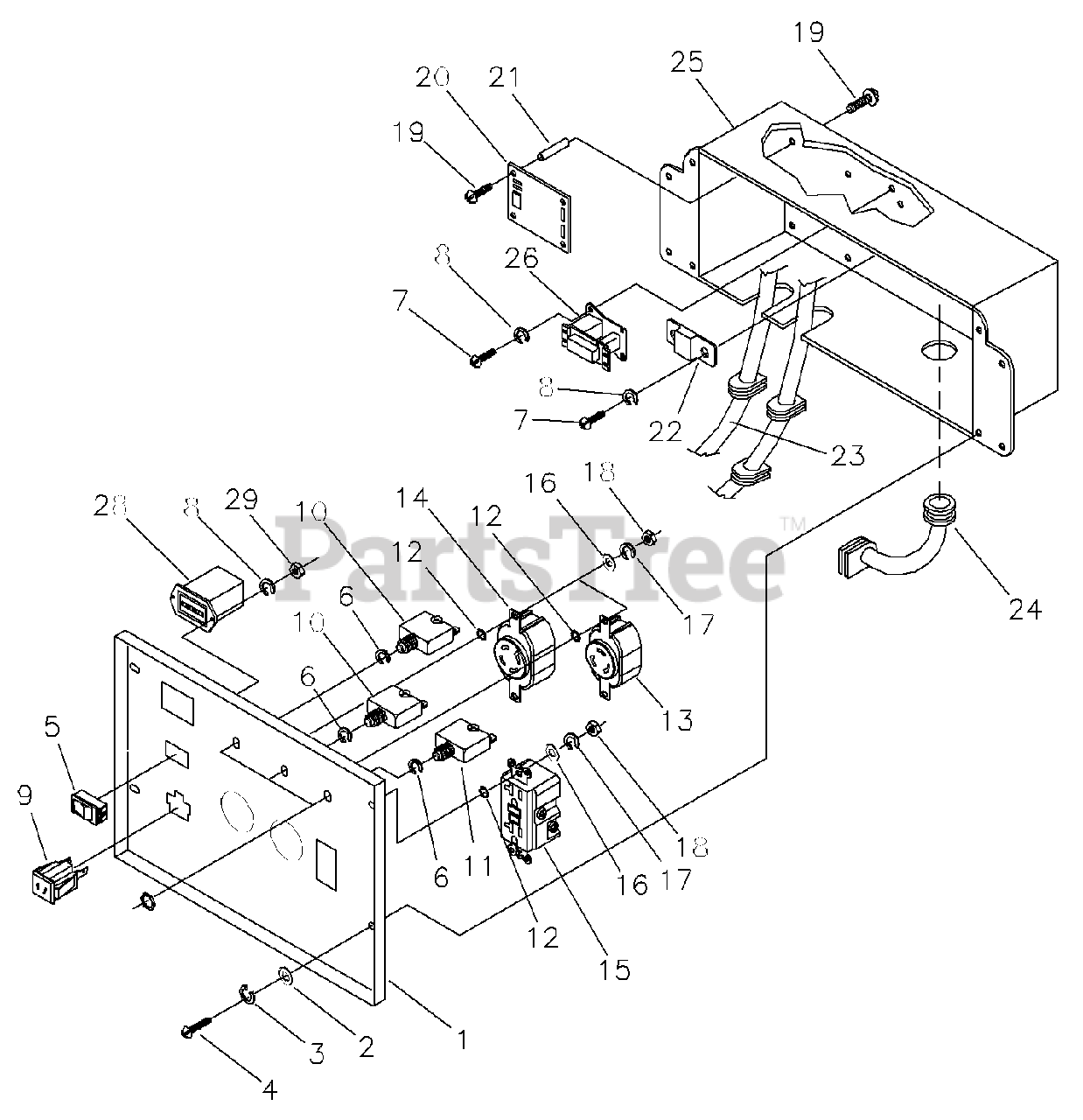

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton F92570GS

PANEL, Control

$34.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 82538GS

SWITCH, Idle Control

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 82881GS

WASHER, Lock

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43181GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43182GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 90418GS

OUTLET, 12V

$

$

Not available

10

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30 A
(Superseded to 706178)

$34.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 75207GS

BREAKER, Circuit, 20 A
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 75207DGS

BREAKER, Circuit, 15 A

Note: Used on model 01787-0

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23365GS

WASHER, Shakeproof

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68868GS

OUTLET, 120 V, 30 A Lock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 120V/240V, 30A Lock

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 80409GS

RECEP, GFCI 20 A Duplex

$102.99

$

In Stock, Qty 5

0

15

Briggs & Stratton 94373GS

RECEP, GFCI 15 A Duplex

Note: Used on model 01787-0

$65.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43180GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22264GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 51715GS

NUT

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 64526GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83970GS

BOARD, System Control

$

$

Not available

21

Briggs & Stratton 64525GS

STAND - OFF

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962GS

BREAKER, Circuit, 12V, 10A

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335GS

ASSY,Wire

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134GS

CONNECTION, Rbbr Grommet

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B92069GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 77604GS

METER, Hour

$112.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51714GS

NUT

$3.49

$

Usually ships in 2-12 days

0
