55003 (800) - Toro Lawn Tractor (SN: 000000001 - 000999999) (1970) POWER TAKEOFF ASSEMBLY Parts Diagram

Lawn Tractor

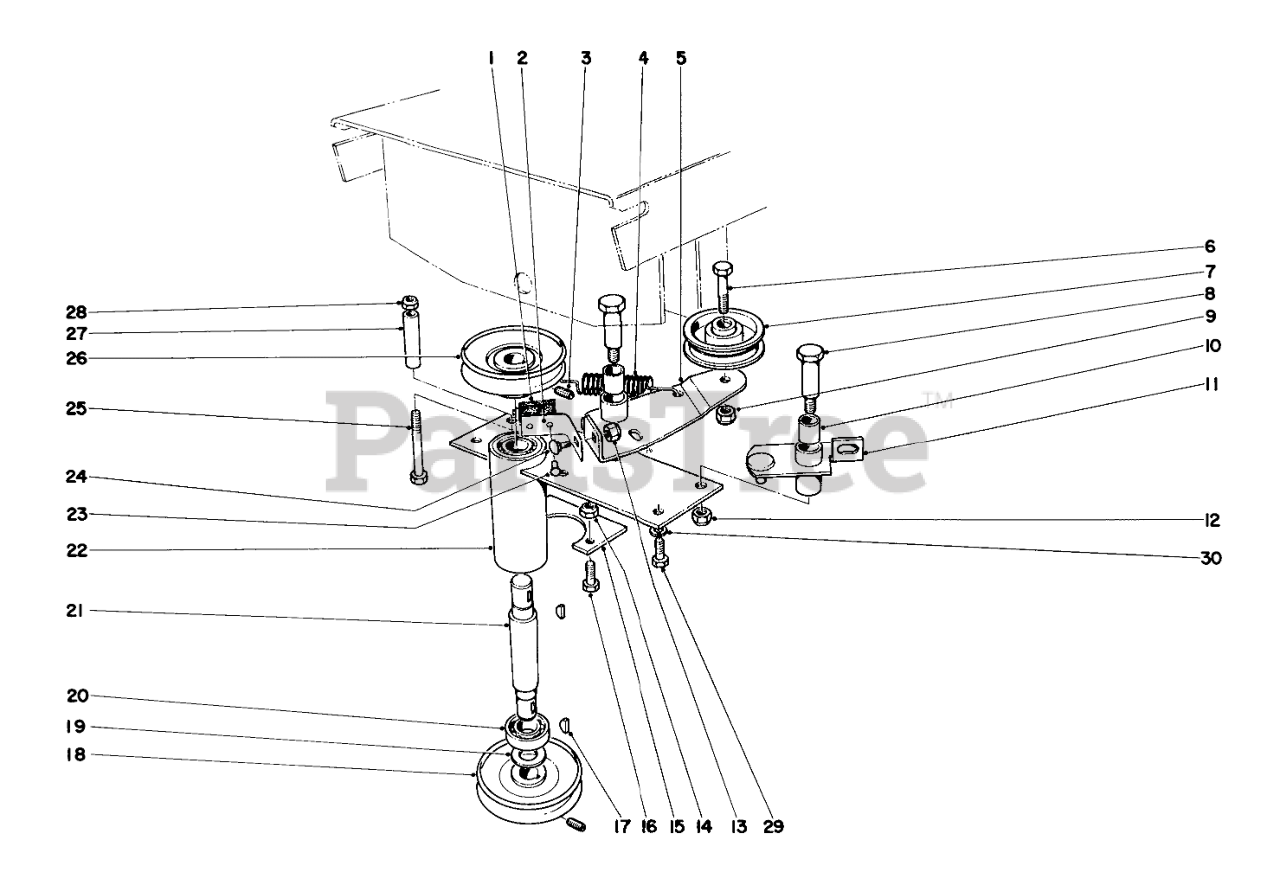

POWER TAKEOFF ASSEMBLY Parts Diagram

  • Title
1

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

2

Toro 7-4093

Brake Spring

$

$

Currently unavailable

3

Toro 3246-1

SCREW-SET

$8.49

$

Usually ships in 3-6 days

0

4

Toro 7-3970

Spring

$

$

Not available

5

Toro 7-4190

Idler Place (Incl. Ref. #10)

$

$

Currently unavailable

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 2 left!

0

8

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

$

$

Currently unavailable

10

Toro 256-172S

Bushing

$

$

Currently unavailable

11

Toro 7-4094

Pivot Bracket (Incl. Ref. #lO)

$

$

Currently unavailable

12

$

$

Currently unavailable

13

$

$

Currently unavailable

14

32152-1S

Nut

$

$

Not available

15

Toro 7-5950

Retainer Power Take Off Tube

$

$

Currently unavailable

16

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

17

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

18

Toro 7-4096

Pulley

$

$

Currently unavailable

19

Toro 7-0777

Bearing Washer

$

$

Not available

20

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

21

Toro 7-4095

Shaft

$

$

Currently unavailable

22

Toro 7-5580

Power Take Off Tube

$

$

Currently unavailable

23

Toro 3295-21

Rivet

$

$

Currently unavailable

24

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

25

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

26

Toro 7-3796

Pulley

$

$

Not available

27

Toro 7-4097

Spacer

$

$

Currently unavailable

28

32152-1S

Nut

$

$

Not available

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

Toro 7-4092

Brake Assembly (Incl. Ref. 1, 2 and 23)

$

$

Currently unavailable
