55003 (800) - Toro Lawn Tractor (SN: 000000001 - 000999999) (1970) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

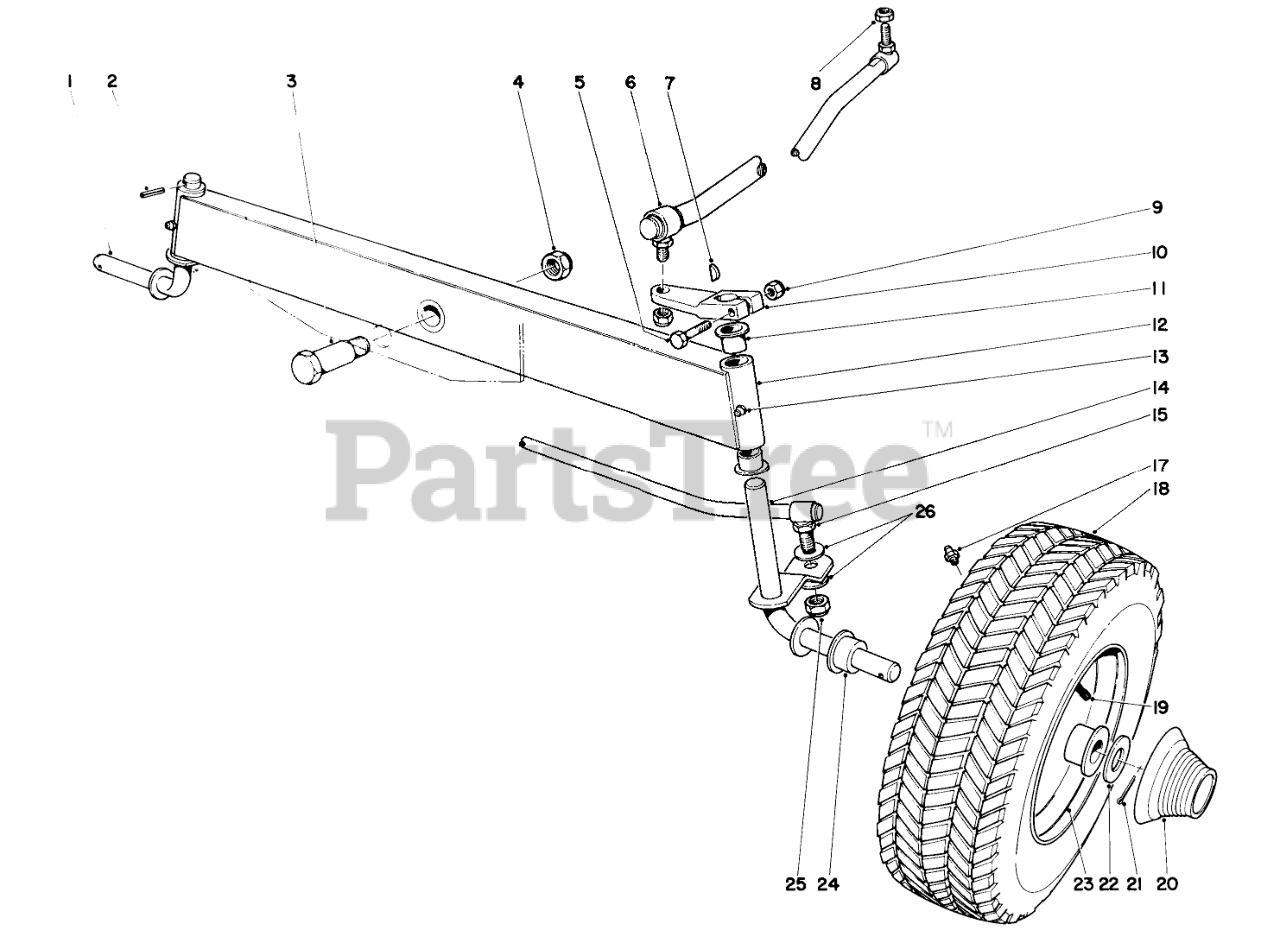

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4061

Spindle

$

$

Not available

2

Toro 32121-24

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

3

Toro 7-3884

Shoulder Bolt

$

$

Not available

4

Toro 32152-3S

Nut

$

$

Currently unavailable

5

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 7-6330

Drag Link

$

$

Not available

7

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

8

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

9

Toro 32152-4S

Nut

$

$

Currently unavailable

10

Toro 7-4067

Arm Drag Link

$

$

Currently unavailable

11

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

12

Toro 74057

Front Axle (Incl. Ref. #11)

$

$

Currently unavailable

13

Toro 302-49S

Grease Fitting

$

$

Currently unavailable

14

Toro 74064

Spindle

$

$

Currently unavailable

15

Toro 7-4078

Tie Rod

$

$

Not available

17

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 231-49S

Tire

$

$

Currently unavailable

19

232-27S

Valve Stem

$

$

Not available

20

Toro 7-3932

FRONT HUB CAP

$

$

Not available

21

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

22

Toro 7-0126

Washer

$

$

Not available

23

241-105S

Rim

$

$

Not available

24

Toro 256-175

Bushing

$

$

Not available

25

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

26

Toro 325641

Washer

$

$

Currently unavailable

Toro 7-3360

Wheel Assy.

$

$

Not available
