55003 (800) - Toro Lawn Tractor (SN: 000000001 - 000999999) (1970) DASH ASSEMBLY Parts Diagram

Lawn Tractor

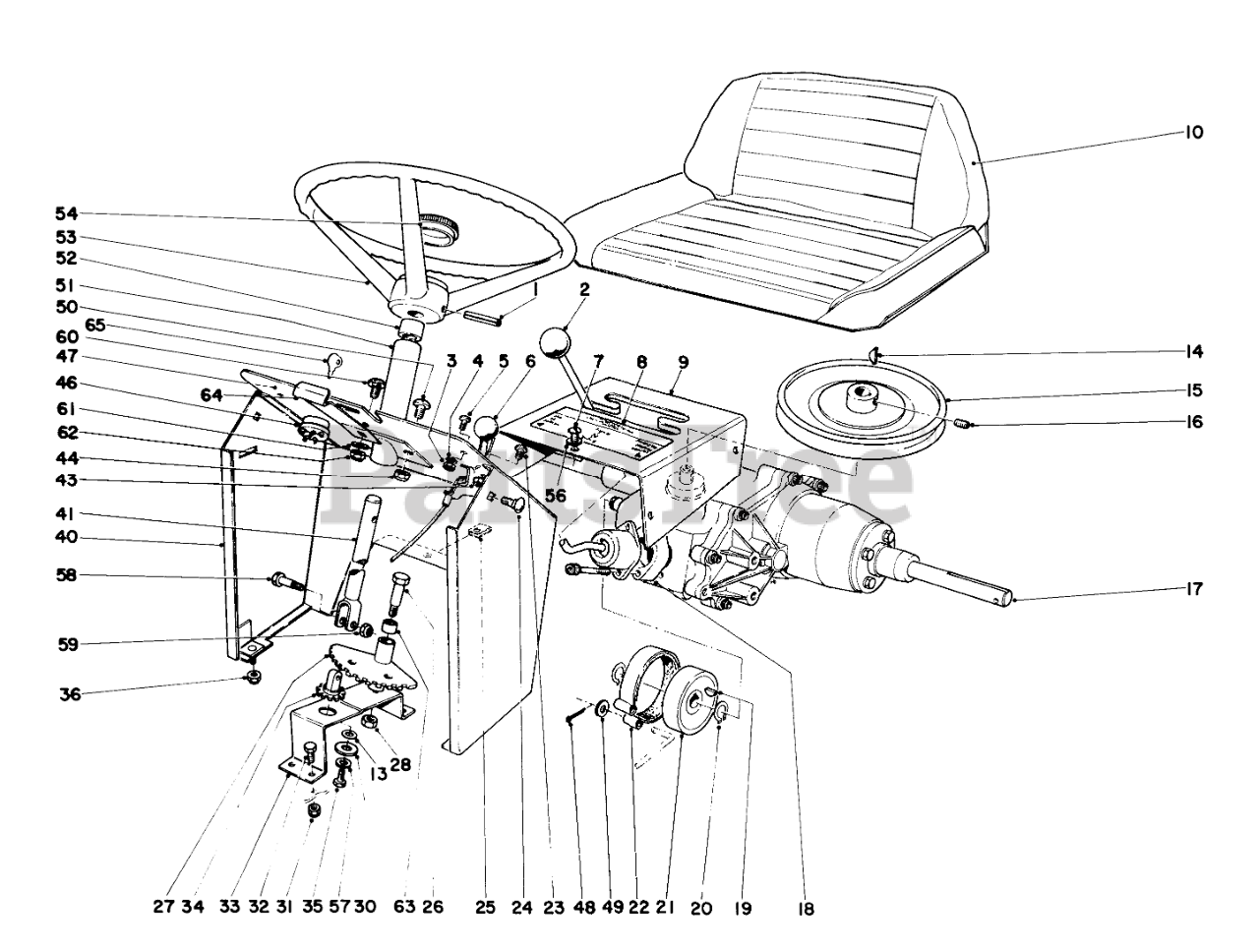

DASH ASSEMBLY Parts Diagram

  • Title

1

32121-78S

Roll Pin

$

$

Not available

2

Toro 233-21S

Knob

$

$

Currently unavailable

3

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

4

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3290-305

Screw

$

$

Currently unavailable

6

Toro 7-5370

Throttle Control

$

$

Not available

7

Toro 3258-2

SCREW

$

$

Not available

8

Toro 7-6200

Decal Shift Pattern

$

$

Currently unavailable

9

Toro 7-4030

Tunnel

$

$

Currently unavailable

10

Toro 7-6110

Seat

$

$

Currently unavailable

13

Toro 7-5990

Spacer

$

$

Not available

14

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

15

Toro 7-4051

Pulley

$

$

Currently unavailable

16

3242-13S

Set Screw

$

$

Not available

17

Toro 7-4001

Transaxle

$

$

Not available

18

Toro 7-4264

Extension Shift Housing

$

$

Not available

19

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

20

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

21

Toro 7-4218

Brake Drum

$

$

Currently unavailable

22

Toro 7-4220

Brake Band

$

$

Not available

23

Toro 3290-305

Screw

$

$

Currently unavailable

24

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 3290-192

SPEED NUT

$

$

Not available

26

Toro 7-5500

Shoulder Bolt

$

$

Currently unavailable

27

Toro 7-5920

Gear Steering

$

$

Not available

28

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

30

Toro 7-6640

Washer

$

$

Not available

31

32152-1S

Nut

$

$

Not available

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

Toro 7-4148

Bracket

$

$

Not available

34

Toro 7-6000

Pinion Steering

$

$

Not available

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

32152-1S

Nut

$

$

Not available

40

Toro 7-5590

Dash

$

$

Currently unavailable

41

Toro 7-5960

Steering Shaft

$

$

Currently unavailable

43

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

44

32152-1S

Nut

$

$

Not available

46

Toro 7-5240

STARTER SWITCH

$

$

Not available

47

Toro 7-5640

Decal Dash Panel (Recoil)

$

$

Currently unavailable

Toro 7-5630

Decal Dash Panel (Electric)

Note: Not illustrated

$

$

Currently unavailable

48

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

49

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

51

Toro 7-4002

Steering Tube (Incl. Ref. #52)

$

$

Currently unavailable

52

Toro 256-167S

Bushing

$

$

Currently unavailable

53

Toro 238-5S

Steering Wheel

$

$

Currently unavailable

54

Toro 74323

Steering Wheel Cap

$

$

Currently unavailable

56

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

57

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

58

Toro 7-6010

Screw Shoulder

$

$

Currently unavailable

59

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

60

Toro 3229-23

Carriage Bolt
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

61

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

62

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

63

Toro 256-100

BUSHING

$

$

Not available

64

Toro 7-5080

Hood Latch

$

$

Currently unavailable

65

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0
