55002 (935) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1969) 935 And 935e Dash Assembly Parts Diagram

Lawn Tractor

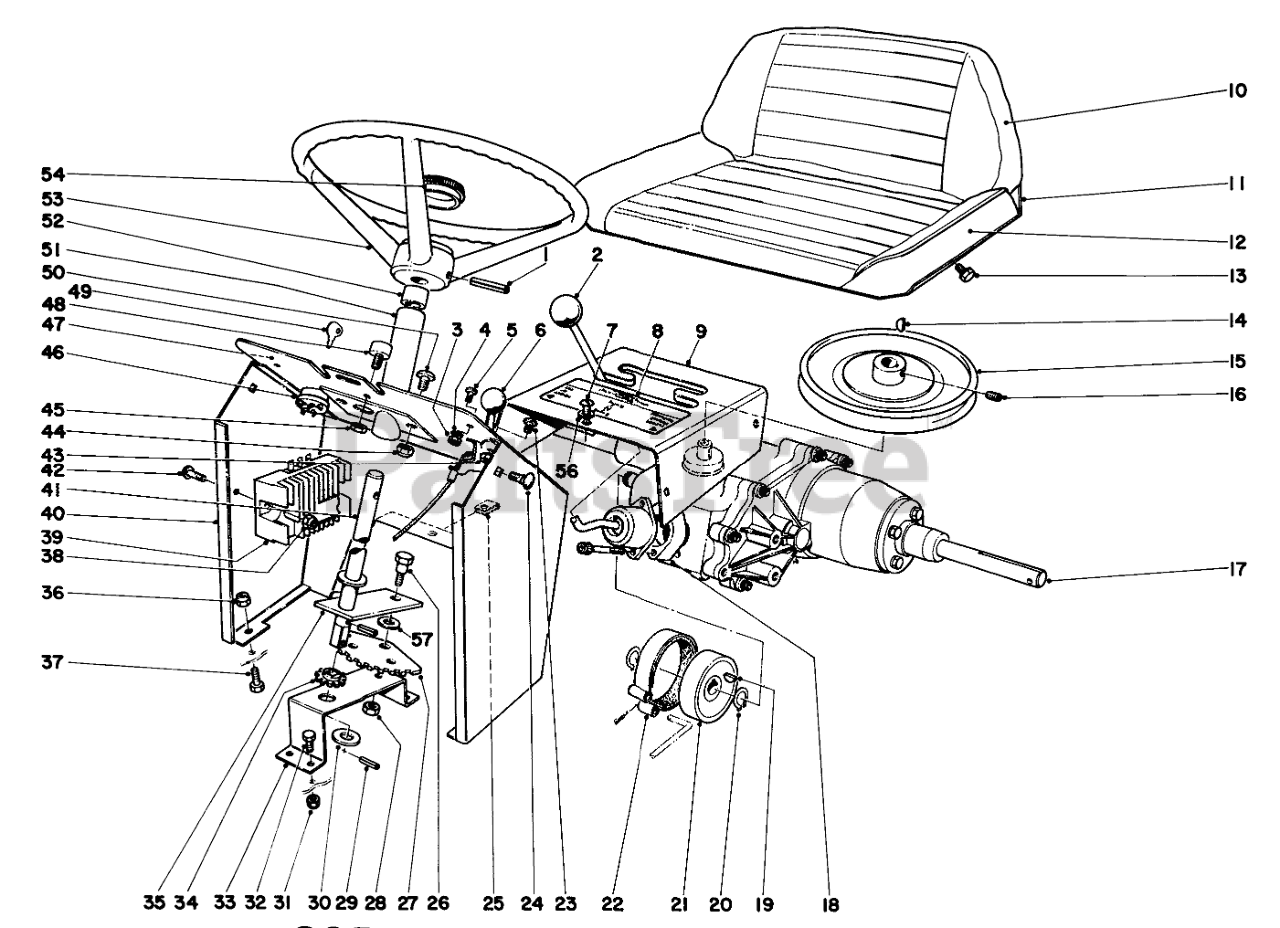

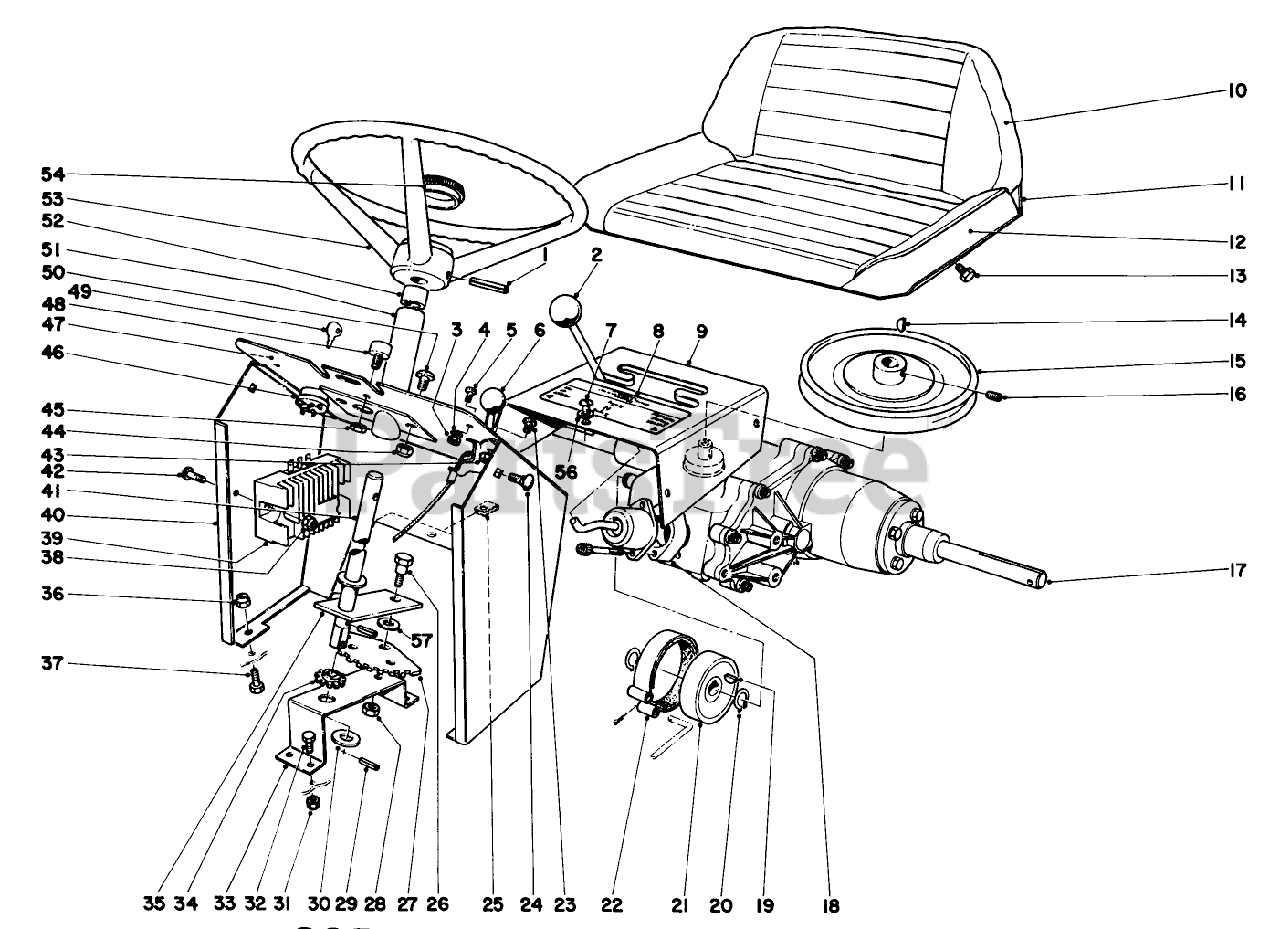

935 And 935e Dash Assembly Parts Diagram

  • Title

1

Toro 32121-78(s

Roll Pin

$

$

Currently unavailable

2

Toro 233-21S

Knob

$

$

Currently unavailable

3

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, Qty 5

0

4

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3290-111

DISCONTINUED

$

$

Not available

6

Toro 7-4100

Throttle Control

$

$

Currently unavailable

7

Toro 3258-2

SCREW

$

$

Not available

8

Toro 7-4123

Decal Shift Pattern

$

$

Currently unavailable

9

Toro 7-4030

Tunnel

$

$

Currently unavailable

10

Toro 7-3351

Cushion Back

$

$

Currently unavailable

11

Toro 7-3871

Frame Seat

$

$

Currently unavailable

12

Toro 7-3872

Cushion Seat

$

$

Currently unavailable

13

Toro 32140-16

DISCONTINUED
(Superseded to 32140-42)

$

$

Not available

14

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

15

Toro 7-4051

Pulley

$

$

Currently unavailable

16

Toro 3242-13(s

Set Screw

$

$

Currently unavailable

17

Toro 7-4001

DISCONTINUED OBS

$

$

Not available

18

Toro 7-4264

DISCONTINUED OBS

$

$

Not available

19

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

20

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 6

0

21

Toro 7-4218

Brake Drum

$

$

Currently unavailable

22

Toro 7-4220

DISCONTINUED

$

$

Not available

23

Toro 32122-43S

Machine Screw

$

$

Currently unavailable

24

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, only 3 left!

0

25

Toro 3290-192

DISCONTINUED

$

$

Not available

26

Toro 7-4152

DISCONTINUED

$

$

Not available

27

Toro 7-4151

Gear Steering

$

$

Currently unavailable

28

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

29

Toro 32121-34S

Roll Pin

$

$

Currently unavailable

30

Toro 7-4150

WASHER

$1.49

$

In Stock, only 2 left!

0

31

Toro 32152-1(s

Nut

$

$

Currently unavailable

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 7-4148

DISCONTINUED

$

$

Not available

34

Toro 7-4156

STEERING PINION

$

$

Not available

35

Toro 7-4153

Retainer Steering Gear

$

$

Currently unavailable

36

Toro 32152-1(s

Nut

$

$

Currently unavailable

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 32152-4S

Nut

$

$

Currently unavailable

39

Rectifier 935E Ref. No. 150

$

$

Not available

40

Toro 7-4335

Dash Hood Support 935

$

$

Currently unavailable

Toro 7-4540

Dash Hood Support

Note: Not illustrated

$

$

Currently unavailable

41

Toro 7-4155

Steering Shaft

$

$

Currently unavailable

42

Toro 3258-157(S

Screw

$

$

Currently unavailable

43

Toro 32149-6

NUT, HEX

$0.99

$

Usually ships in 3-6 days

0

44

Toro 32152-1(s

Nut

$

$

Currently unavailable

45

Toro 32152-4S

Nut

$

$

Currently unavailable

46

Toro 7-4630

Switch Ignition 935E

$

$

Currently unavailable

47

Toro 7-4125

Decal Dash Panel 935

$

$

Currently unavailable

Toro 7-4126

Decal Dash Panel 935E

Note: Not illustrated

$

$

Currently unavailable

48

Toro 7-4388

Stud

$

$

Currently unavailable

49

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 10

0

50

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

51

Toro 7-4002

Steering Tube (Incl. Ref. #52)

$

$

Currently unavailable

52

Toro 256-167S

Bushing

$

$

Currently unavailable

53

Toro 238-5S

Steering Wheel

$

$

Currently unavailable

54

Toro 7-4323

DISCONTINUED

$

$

Not available

56

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

57

Toro 7-4650

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
