55002 (935) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1969) 935 AND 935E CHASSIS ASSEMBLY Parts Diagram

Lawn Tractor

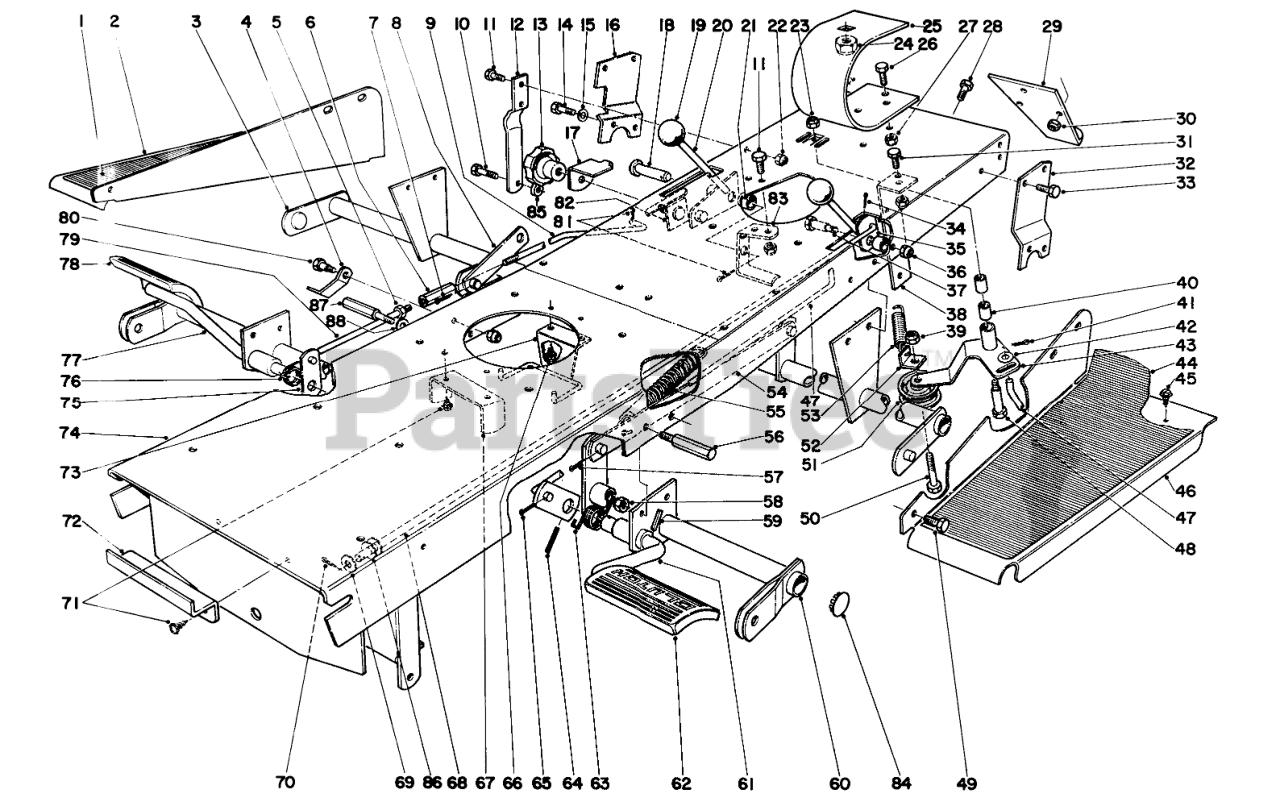

935 AND 935E CHASSIS ASSEMBLY Parts Diagram

  • Title
1

Toro 7-4128

Pad R. H.

$

$

Not available

2

Toro 7-4033

Footrest R.H.

$

$

Currently unavailable

3

Toro 7-4023

Cross Tube Rear

$

$

Currently unavailable

4

Toro 7-4263

Pedal Latch

$

$

Currently unavailable

5

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Toro 7-4193

Screw Brake Adjusting

$

$

Not available

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 7-4195

Lift Link

$

$

Currently unavailable

9

Toro 7-4072

Brake Rod Rear

$

$

Currently unavailable

10

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 7-4217

Brake Hanger

$

$

Currently unavailable

13

$

$

Not available

14

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 7-4026

Support Right

$

$

Currently unavailable

17

Toro 7-4098

Slide

$

$

Not available

18

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Toro 7-4076

Lever

$

$

Currently unavailable

21

Toro 7-4070

Spacer

$

$

Currently unavailable

22

32152-1S

Nut

$

$

Not available

23

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Toro 7-4042

Seat Spring

$

$

Currently unavailable

26

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

27

$

$

Currently unavailable

28

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

29

Toro 7-4032

Hitch

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

32

Toro 7-4025

Support Left

$

$

Currently unavailable

33

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

34

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

35

Toro 7-4073

Lever

$

$

Currently unavailable

36

$

$

Currently unavailable

37

Toro 7-4071

Shoulder Bolt

$

$

Currently unavailable

38

Toro 7-4037

Support Transaxle

$

$

Currently unavailable

39

$

$

Currently unavailable

40

Toro 256-172S

Bushing

$

$

Currently unavailable

41

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

42

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 7-4043

Idler Arm Incl. Ref. #36

$

$

Currently unavailable

44

Toro 7-4130

Pad Left

$

$

Not available

45

Toro 32122-46S

Self Tapping Screw

$

$

Currently unavailable

46

Toro 7-4034

Footrest

$

$

Currently unavailable

47

Toro 7-4035

Clutch Rod

$

$

Currently unavailable

48

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

49

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

50

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 2 left!

0

52

$

$

Not available

53

Toro 7-4373

Tension Spring

$

$

Not available

54

Toro 7-4052

Lift Equalizer

$

$

Currently unavailable

55

Toro 7-4292

Spring Counterbalance

$

$

Not available

56

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

57

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

58

32152-1S

Nut

$

$

Not available

59

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

60

Toro 7-4005

Cross Tube Front

$

$

Currently unavailable

61

Toro 7-4055

Pedal L.H.

$

$

Currently unavailable

62

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

63

Toro 7-4238

Pedal Return Spring

$

$

Not available

64

Toro 32121-51S

RollPin

$

$

Currently unavailable

65

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

66

Toro 32140-58

10-32 X 1/2 PHILLIPS

$

$

Not available

67

Toro 7-4252

Cutter Guide

$

$

Currently unavailable

68

Toro 7-4196

Rod Clutch

$

$

Currently unavailable

69

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

70

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

71

Toro 32140-58

10-32 X 1/2 PHILLIPS

$

$

Not available

72

Toro 7-4384

Spring Clip

$

$

Currently unavailable

73

Toro 7-4680

Belt Traction Guide

$

$

Currently unavailable

74

Toro 7-4003

Frame

$

$

Currently unavailable

75

Toro 7-4191

Lever Pedal Shaft

$

$

Currently unavailable

76

Toro 7-4240

Pedal Return Spring

$

$

Not available

77

Toro 7-4053

Pedal Right

$

$

Currently unavailable

78

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

79

Toro 7-4192

Brake Rod Front

$

$

Currently unavailable

80

Toro 7-0163

Shoulder Bolt
(Superseded to 37-8770)

$1.49

$

In Stock, only 2 left!

0

81

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

82

Toro 7-3667

Knob Plate

$

$

Currently unavailable

83

Toro 7-4036

Support Guide

$

$

Currently unavailable

84

Toro 2410-26

Plug Button

$

$

Currently unavailable

85

Toro 7-0698

Spacer

$

$

Currently unavailable

86

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

87

Toro 7-4590

Brake Stop

$

$

Currently unavailable

88

Toro 7-0532

Washer

$

$

Currently unavailable
