55001 - Toro Compact Suburban Lawn Tractor (SN: 008000001 - 008999999) (1968) HOOD AND FENDER GROUP Parts Diagram

Compact Suburban Lawn Tractor

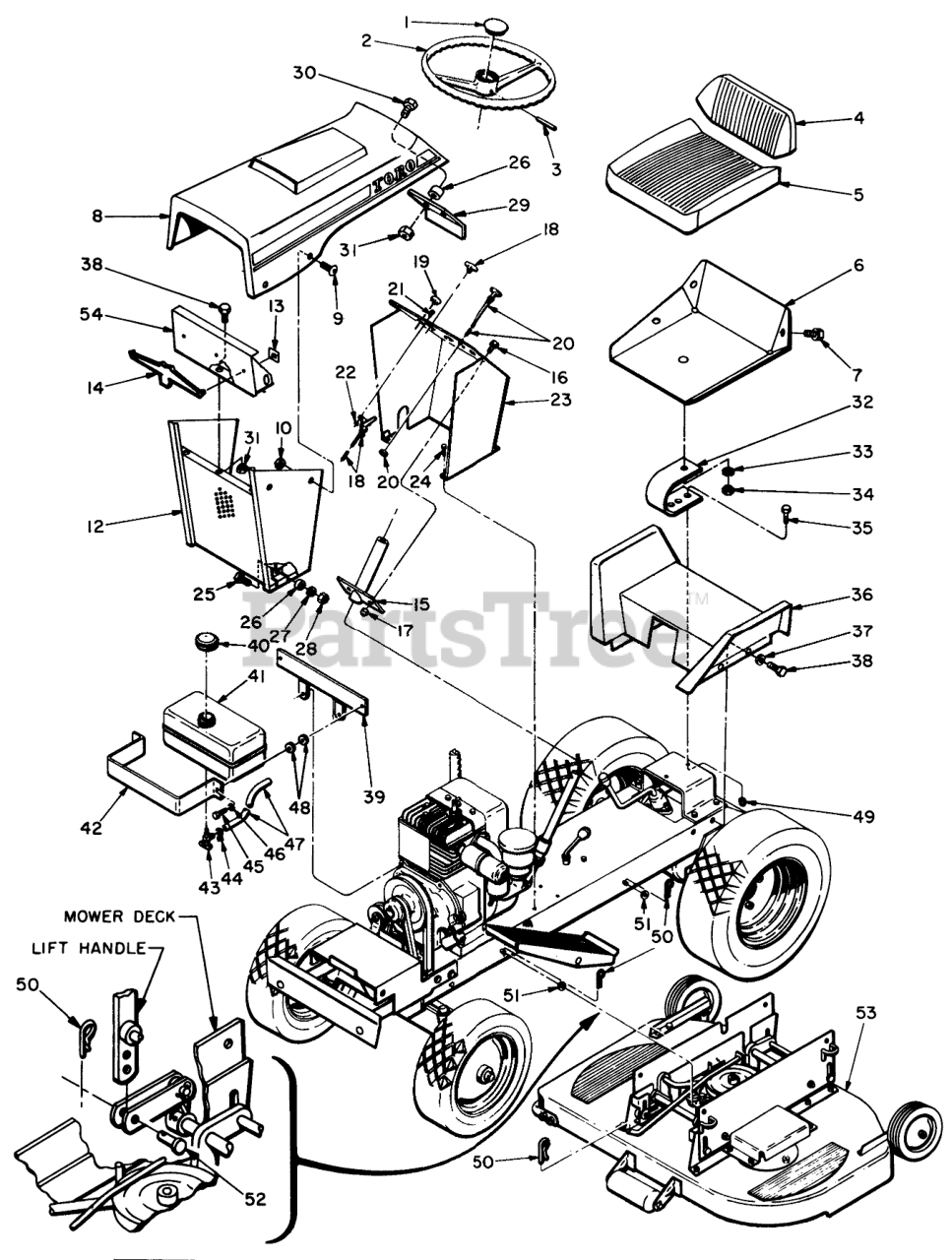

HOOD AND FENDER GROUP Parts Diagram

  • Title

1

Toro 7-0921

Steering Wheel Cap

$

$

Currently unavailable

2

Toro 7-0470

Steering Wheel

$

$

Currently unavailable

3

Toro 32121-78(s

Roll Pin

$

$

Currently unavailable

4

Toro 7-3348

Back Cushion

$

$

Currently unavailable

5

Toro 7_3350

Seat Cushion

$

$

Currently unavailable

6

Toro 7-3234

Seat Frame

$

$

Currently unavailable

7

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

8

Toro 7-3302

Hood

$

$

Currently unavailable

9

Toro 3274-32(s

Screw

$

$

Currently unavailable

10

Toro 32152-1(s

Nut

$

$

Currently unavailable

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 7-3310

Grille Assy

$

$

Currently unavailable

13

3290-275(s

Nut

$

$

Not available

14

Toro 7-3441

Bullshead

$

$

Currently unavailable

15

Toro 7-3297

Steering Tube Assy

$

$

Currently unavailable

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 32152-1(s

Nut

$

$

Currently unavailable

18

Toro 7-0913

Throttle Control

$

$

Currently unavailable

19

Toro 2410-24(s

Plug Button

$

$

Currently unavailable

20

Toro 7-0914

Choke Control

$

$

Currently unavailable

21

32122-43(S

Screw

$

$

Not available

22

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

23

Toro 7-3308

Control Panel Assy

$

$

Currently unavailable

24

Toro 32140-18

Screw

$

$

Currently unavailable

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 32152-1(s

Nut

$

$

Currently unavailable

29

Toro 7-3326

Hood Latch

$

$

Currently unavailable

30

Toro 3258-157(S

Screw

$

$

Currently unavailable

31

32152-4(s

Nut

$

$

Not available

32

Toro 7-0918

Seat Spring

$

$

Currently unavailable

33

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

34

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

35

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 7-3292

Fender Assy

$

$

Currently unavailable

37

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

39

Toro 7-0903

Gas Tank Clamp

$

$

Currently unavailable

40

222-16(s

Gas Tank Cap

$

$

Not available

41

Toro 7-0902

Gas Tank

$

$

Currently unavailable

42

Toro 7-0904

Clamp

$

$

Currently unavailable

43

Toro 304_88(s

Shutoff Valve

$

$

Currently unavailable

44

Toro 2412_20(s

Hose Clamp

$

$

Currently unavailable

45

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 7-0897

Gas Hose

$

$

Currently unavailable

48

Toro 7-2121

Rubber Washer

$

$

Currently unavailable

49

32152-2(s

Nut

$

$

Not available

50

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

51

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

52

Toro 7-0511

Pin
(Superseded to 283-2)

$13.99

$

In Stock, only 2 left!

0

53

Toro 7_0812

Mower Housing Group

$

$

Currently unavailable

54

Toro 7-3325

Blank Headlamp

$

$

Currently unavailable
