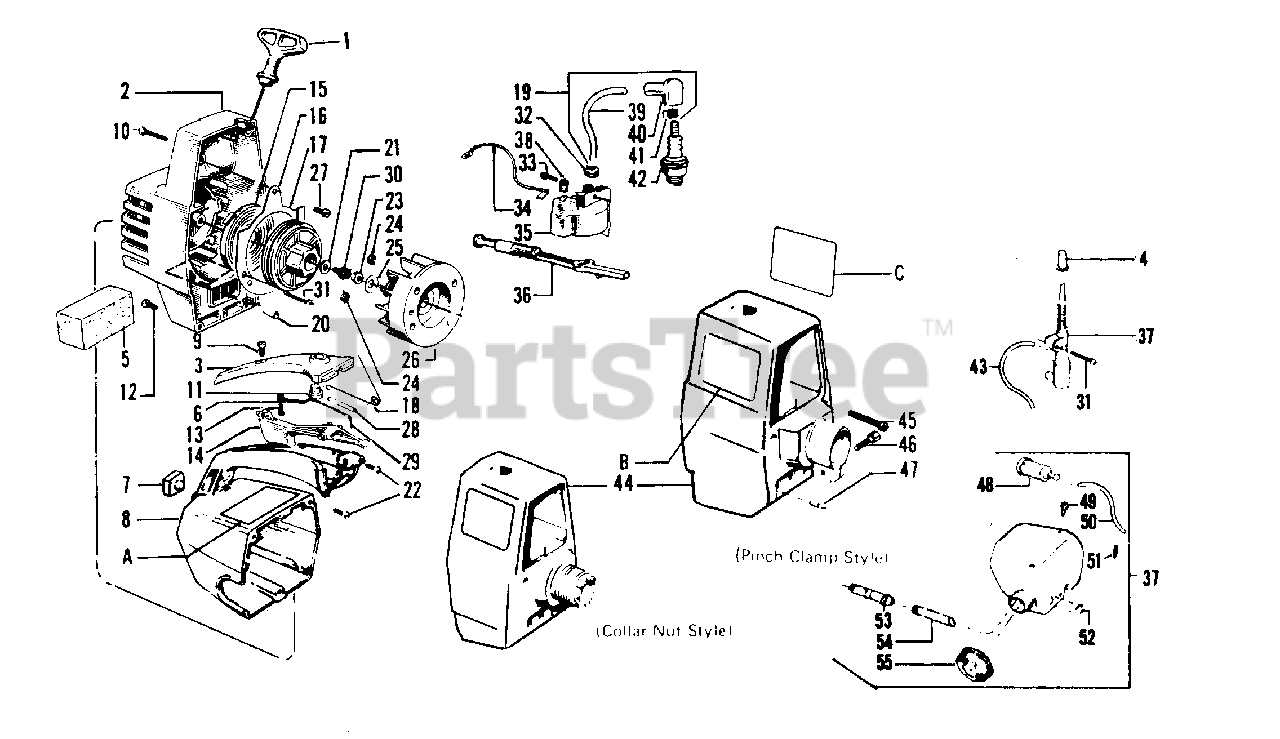

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 530026735

Starter Handle
(Superseded to 530027569)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 530069178

Fan Housing Kit - (Inc.16,20,27,28,31) See Service Reference 5

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530024661

Handle Cover

$

$

Not available

4

Poulan 530026032

Injector Button - Type 2 only

$

$

Not available

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 530015123

Washer - Kill Switch

$4.99

$

In Stock, only 4 left!

0

7

Poulan 530024436

Bumper - Fuel Tank Housing

$

$

Not available

8

Poulan 530024656

Handle & Fuel Tank Housing

$

$

Not available

9

Poulan 530015247

Screw - #8 - 16 x 3/4" - Pan Hd. - Handle Cover

$

$

Not available

10

Screw - #10 - 16 x 1-5/8" Fan Housing Top - See Service Ref. 5.

$

$

Not available

11

Poulan 530026679

Button - Kill Switch

$

$

Not available

12

Screw - #10 - 24 x 5/8" Fan Housing Bottom - See Service Ref. 5.

$

$

Not available

13

Poulan 530015407

Screw - #8 - 16 x 3/8" - Pan Hd. - Kill Switch

$

$

Not available

14

Poulan 530024365

Trigger - Throttle

$

$

Not available

15

Starter Recoil Spring - See Service Ref. 3.

$

$

Not available

16

Poulan 530026035

Air Baffle

$

$

Not available

17

Starter Pulley (Inc.21) - See Service Ref. 3.

$

$

Not available

18

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

HIGH TENSION LEAD NLA

$

$

Not available

20

Poulan 530026122

Spacer - Type 1 only

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer - #10 Starter Pulley

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530015367

Screw - #10 - 14 x 3/4" - Pan Hd. - Fan Hsg. to Handle & Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 16

0

23

Poulan 530626605

Nut - Flywheel - #5/16 x 24 - Fil. Head

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

25

Poulan 530015127

Washer - Flywheel

$6.49

$

In Stock, only 1 left!

0

26

Poulan 530039114

Flywheel Ass'y. (Inc.24)

$

$

Not available

27

Screw - #10 - 16 x 3/8" - Fil. Hd. - Air Baffle See Service Ref. 5.

$

$

Not available

28

Poulan 530021036

Insulation - Switch

$

$

Not available

29

Poulan 530024407

Spring - Kill Switch

$2.49

$

Usually ships in 3-10 days

0

30

Screw - #10 x 3/4" - Hex Washer Hd. - Starter Pulley - See Service Ref. 5.

$

$

Not available

31

Screw - #10 - 24 x 1-3/16" - Fil. Hd. - Air Baffle See Service Ref. 5.

$

$

Not available

32

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015128

Screw - #8 - 32 x 3/4" - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530024158

Lead Wire - Switch

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530069181

Kit - Ignition Module

$

$

Not available

36

Poulan 530024303

Knob - Choke - Type 1 only

$

$

Not available

37

Poulan 530010738

Pump Ass'y. - Type 2 only

$

$

Not available

38

Poulan 530025995

Electrical Tab 45 degree

$0.99

$

Usually ships in 3-10 days

0

39

Poulan 530039082

High Tension Lead Wire

$

$

Not available

40

Poulan 530003934

Boot - Spark Plug

$

$

Not available

41

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

42

Poulan 530030077

Spark Plug

$

$

Not available

43

Poulan 530021053

Pump to Accumulator Line - Type 2 only

$

$

Not available

44

Poulan 530011778

Shroud, Pinch Clamp Style

$

$

Not available

44

Poulan 530011641

Shroud, Screw Collar Style

$

$

Not available

45

Poulan 530015376

Screw - #10 - 24 x 1-1/3" - Fil. Hd. - Shroud (Top)

$

$

Not available

46

Poulan 530093802

Bolt - #1/4 - 20 x 1" Pinch Clamp

$

$

Not available

47

Poulan 530015168

Screw - #10 - 24 x 5/8" - Fil. Head - Shroud (Bottom)

$

$

Not available

48

Poulan 530091878

Fuel Pick-Up Ass'y. Type 1

$

$

Not available

48

Poulan 530010897

Fuel Pick-Up Ass'y. Type 2
(Superseded to 530095646)

$6.99

$

In Stock, Qty 16

0

49

Poulan 530026119

Duck Bill Check Valve

$5.99

$

In Stock, only 4 left!

0

50

Poulan 530021042

Fuel Line, Type 1

$

$

Not available

50

Poulan 530021054

Fuel Line, Type 2

$

$

Not available

51

Poulan 530025472

Fuel Line Fitting - Type 1 only

$3.49

$

Usually ships in 3-10 days

0

52

Poulan 530026178

Clip - Retainer - Inlet Line - Fuel Tank Type 2 only

$

$

Not available

53

Poulan 530026109

Fuel Filter (Inlet Line) - Type 2 only

$

$

Not available

54

Poulan 530021052

Fuel Inlet Line - Type 2 only

$

$

Not available

55

Poulan 530010729

Fuel Cap Ass'y. (Incl. "O" Ring)
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

56

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

A

Poulan 530026512

Starting Instructions - Decal, Type 1

$

$

Not available

A

Poulan 530026145

Starting Instructions - Decal, Type 2

$

$

Not available

B

Poulan 530025325

Decal - Shroud (Right)

$

$

Not available

C

Poulan 530025326

Decal - Shroud (Left)

$

$

Not available
