550 XP/XPG - Husqvarna Chainsaw (2014-01) CRANKCASE Parts Diagram

Chainsaw

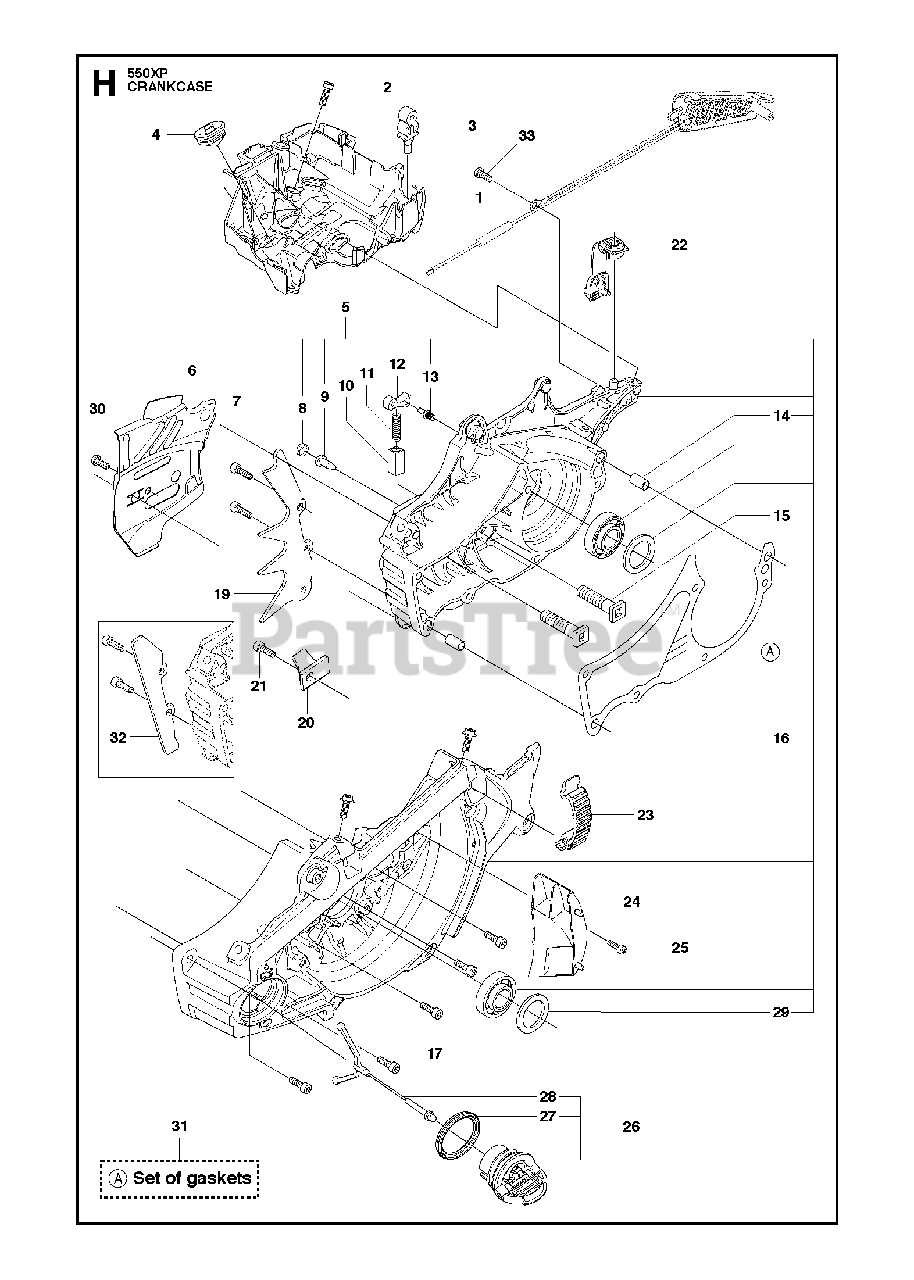

CRANKCASE Parts Diagram

  • Title
1

Husqvarna 525403201

CARBURETTOR AREA BASE

$26.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 20+

0

$8.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 577834710

CRANKCASE ASSY SPARE PART_H55
(Superseded to 577834713)

$319.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522742801

CHAIN GUIDE PLATE

$13.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, Qty 6

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

Note: . 5

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: . 5

$5.99

$

In Stock, only 4 left!

0

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 3 left!

0

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503751801

PIN

Note: . 5

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 501270801

SLEEVE

Note: . 5

$8.49

$

Usually ships in 3-10 days

0

15

Husqvarna 505217301

BAR BOLT

Note: . 5

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 505111501

SCREW IHSCM

Note: . 5

$3.49

$

In Stock, only 4 left!

0

17

Husqvarna 503200803

SCREW IHSCM

$3.49

$

In Stock, only 3 left!

0

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537377902

CHAIN CATCHER

$7.99

$

In Stock, Qty 14

0

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 505125801

DEFLECTION LIMITER

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503894703

CLIP GRAY
(Superseded to 595303003)

$10.99

$

In Stock, Qty 9

0

24

Husqvarna 525417401

AIR NOZZLE
(Superseded to 588059201)

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 510020601

SCREW IHSCM
(Superseded to 526818101)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 577878603

Tank Cap Assembly

$13.99

$

In Stock, Qty 5

0

27

Husqvarna 589241301

Tank Cap Gasket

Note: . 26

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503578901

TANK LOCK

Note: . 26

$9.99

$

In Stock, Qty 15

0

29

Husqvarna 525391201

RADIAL SEAL

Note: . 5

$17.99

$

In Stock, only 1 left!

0

30

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 577766603

GASKET KIT 50CC

Note: A set of gaskets

$17.99

$

In Stock, only 1 left!

0

32

Husqvarna 577887201

BUMPER, BAG

$26.99

$

Usually ships in 3-10 days

0

$3.49

$

In Stock, only 1 left!

0
