550 XP/XPG - Husqvarna Chainsaw (2014-01) CLUTCH OIL PUMP Parts Diagram

Chainsaw

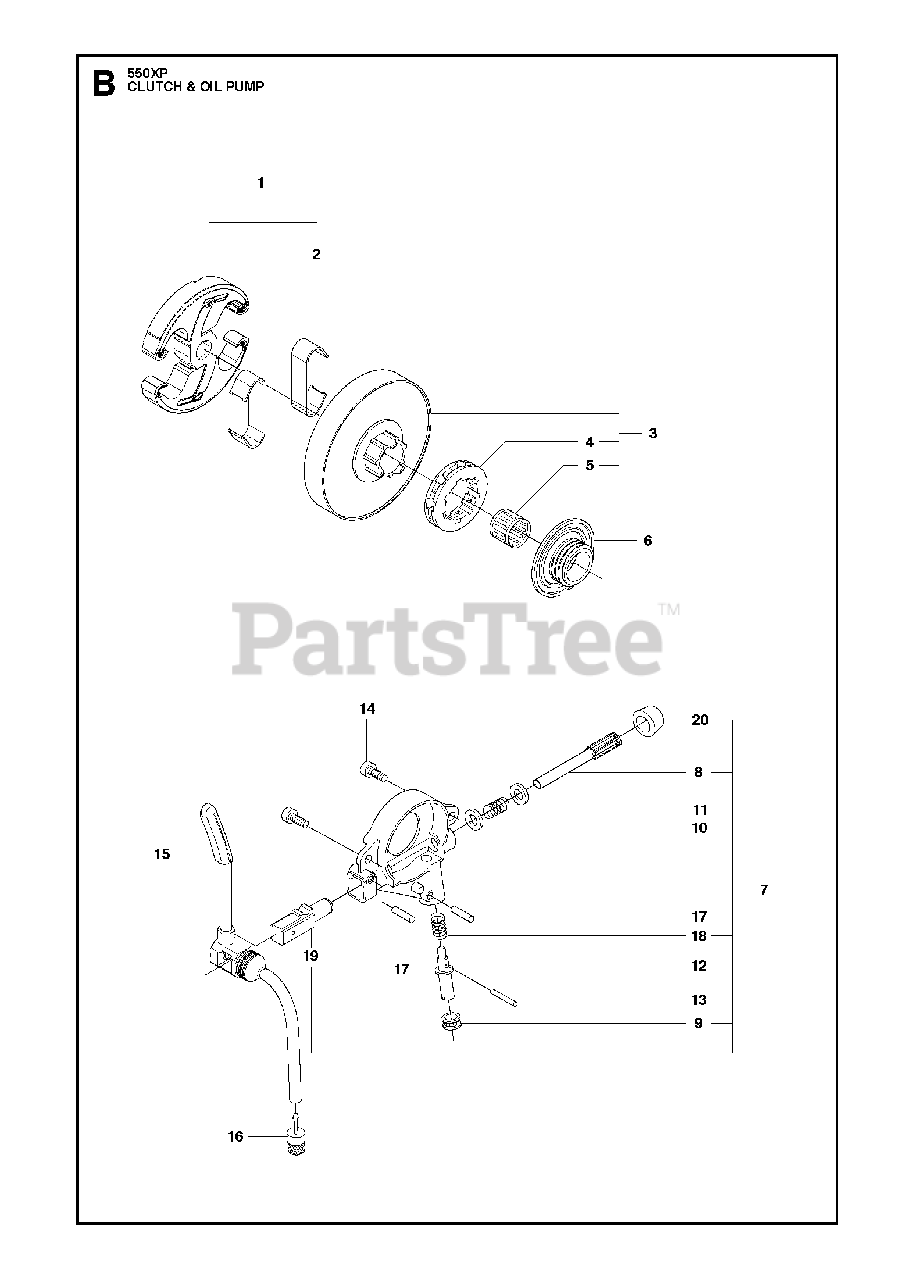

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Husqvarna 577518201

CLUTCH ASSY
(Superseded to 577518202)

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537359101

SPRING

Note: . 1

$8.99

$

In Stock, Qty 12

0

3

Husqvarna 575261003

CLUTCH DRUM ASSY
(Superseded to 575261005)

Note: 325 x7

$45.99

$

In Stock, only 1 left!

0

4

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: 325 x7. 3

$8.49

$

In Stock, Qty 11

0

5

Husqvarna 503253401

SUPPORT BUSHING

Note: . 3

$21.99

$

In Stock, Qty 20+

0

6

Husqvarna 505200801

WORM WHEEL

$11.99

$

In Stock, only 2 left!

0

7

Husqvarna 505199904

OIL PUMP ASSY

$39.99

$

In Stock, only 1 left!

0

8

Husqvarna 505200201

PUMP PISTON
(Superseded to 505200204)

Note: . 7

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505200301

CASING

Note: . 7

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503230060

WASHER

Note: . 7

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 503891601

SPRING

Note: . 7

$6.99

$

In Stock, only 3 left!

0

12

Husqvarna 505201401

RP ADJUSTING SCREW
(Superseded to 505157001)

Note: . 7

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 721116430

PIN

Note: . 7

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 510020601

SCREW IHSCM
(Superseded to 526818101)

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 505200401

OIL HOSE

$11.99

$

In Stock, only 1 left!

0

16

Husqvarna 504710003

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 720123300

PIN 3X10

Note: . 7

$3.49

$

In Stock, only 4 left!

0

18

Husqvarna 503891501

SPRING

Note: . 7

$6.49

$

In Stock, Qty 7

0

19

Husqvarna 505200101

PUMP CYLINDER

Note: . 7

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 503624901

PLUG

Note: . 7

$8.99

$

Usually ships in 3-10 days

0
