550 XP - Husqvarna Chainsaw (2013-01) CARBURETOR DETAILS Parts Diagram

Chainsaw

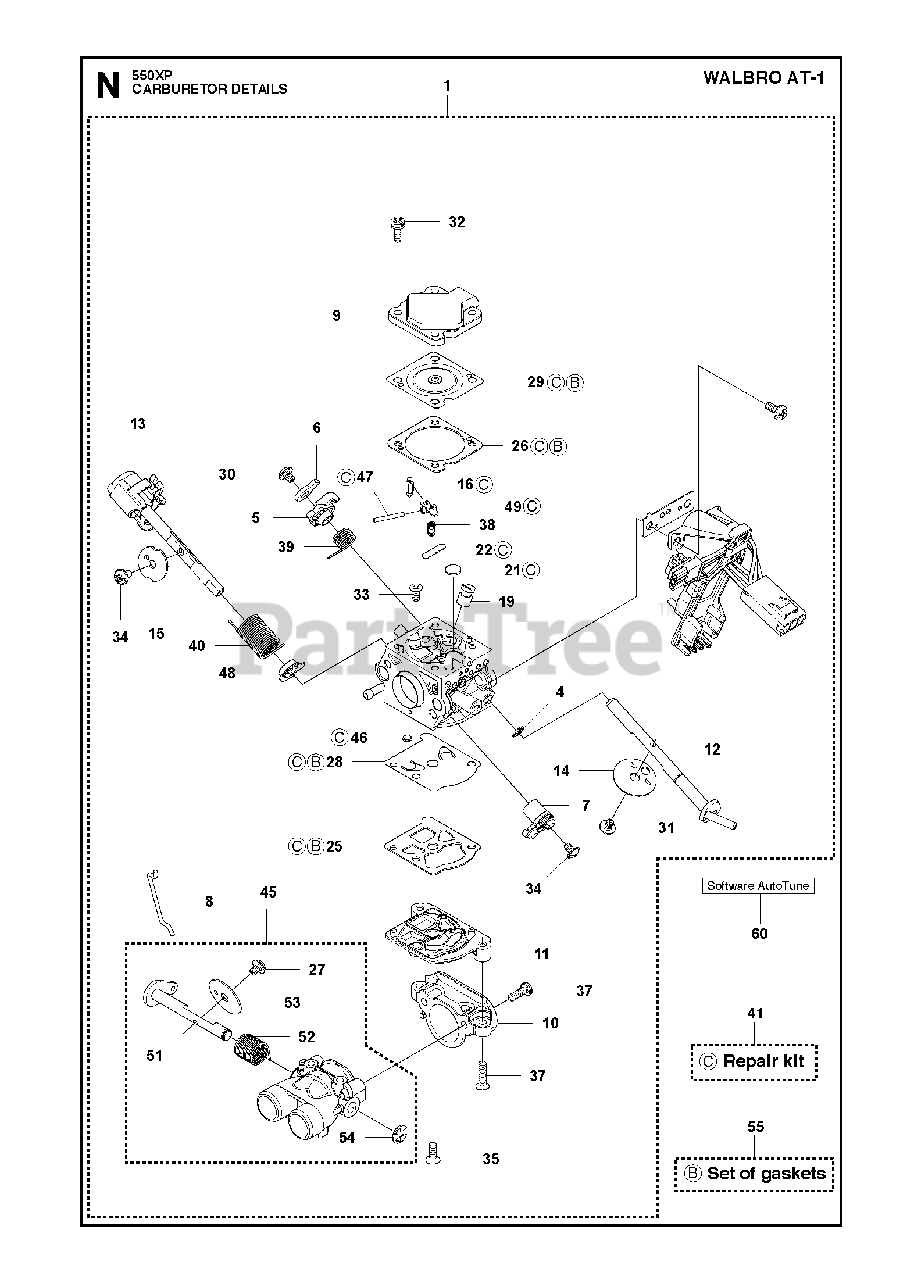

CARBURETOR DETAILS Parts Diagram

  • Title

1

Husqvarna 579200301

RP CARBURETTOR
(Superseded to 587084807)

Note: AT-1

$241.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577262901

RETAINER

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574357701

LEVER

Note: . 1

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 576618501

LEVER

Note: . 1

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 577219201

THROTTLE LEVER ASSY

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 574357901

LINK

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574358101

COVER

Note: . 1

$7.82

$

Usually ships in 3-10 days

0

10

Husqvarna 575794801

INLET

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575794701

COVER

Note: . 1

$9.22

$

Usually ships in 3-10 days

0

12

Husqvarna 574358401

SHAFT ASSY

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 574358201

SHAFT

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 574358501

VALVE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 574357501

VALVE THROTTLE

Note: . 1

$

$

Not available

16

Husqvarna 503563401

INLET NEEDLE

Note: . 1

$17.99

$

In Stock, Qty 9

0

19

Husqvarna 576618801

NOZZLE ASSY

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 504790801

PLUG WELCH

Note: . 1

$7.99

$

In Stock, Qty 8

0

22

Husqvarna 502846901

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 504130906

GASKET

Note: . 1

$11.99

$

In Stock, only 3 left!

0

27

Husqvarna 574358701

GASKET

Note: . 1

$6.91

$

Usually ships in 3-10 days

0

26

Husqvarna 574358601

GASKET

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 577016601

DIAPHRAGM

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 574358801

DIAPHRAGM ASSY
(Superseded to 587071601)

Note: . 1

$56.99

$

In Stock, only 1 left!

0

30

Husqvarna 501468701

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 537003101

SCREW

Note: . 1

$9.49

$

In Stock, only 3 left!

0

33

Husqvarna 502847101

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

34

Husqvarna 544111501

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 574359001

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 576618901

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503562401

SPRING

Note: . 1

$7.99

$

In Stock, only 2 left!

0

39

Husqvarna 574359301

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

40

Husqvarna 574359401

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 577666101

REPAIR KIT

$22.99

$

Usually ships in 3-10 days

0

45

Husqvarna 579323101

THROTTLE VALVE ASSY

Note: . 1

$22.99

$

Usually ships in 3-10 days

0

46

Husqvarna 501666101

FUEL INLET SCREEN

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

47

Husqvarna 505520125

FULCRUM PIN

Note: . 1

$7.99

$

In Stock, only 3 left!

0

48

Husqvarna 574359601

BUSHING

Note: . 1

$5.99

$

In Stock, only 1 left!

0

49

Husqvarna 502847401

LEVER

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 574357401

SHAFT ASSY

Note: . 1

$13.84

$

Usually ships in 3-10 days

0

52

Husqvarna 574357601

SPRING

Note: . 1

$5.58

$

Usually ships in 3-10 days

0

53

Husqvarna 576619001

VALVE

Note: . 1

$5.76

$

Usually ships in 3-10 days

0

54

Husqvarna 505316736

E CLIP
(Superseded to 502119801)

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

55

Husqvarna 576666501

GASKET KIT

$17.99

$

Usually ships in 3-10 days

0

60

Husqvarna TBD

Note: Download from your local supportsite

$

$

Not available
