550 - Shindaiwa Chainsaw Crankcase Parts Diagram

Chainsaw

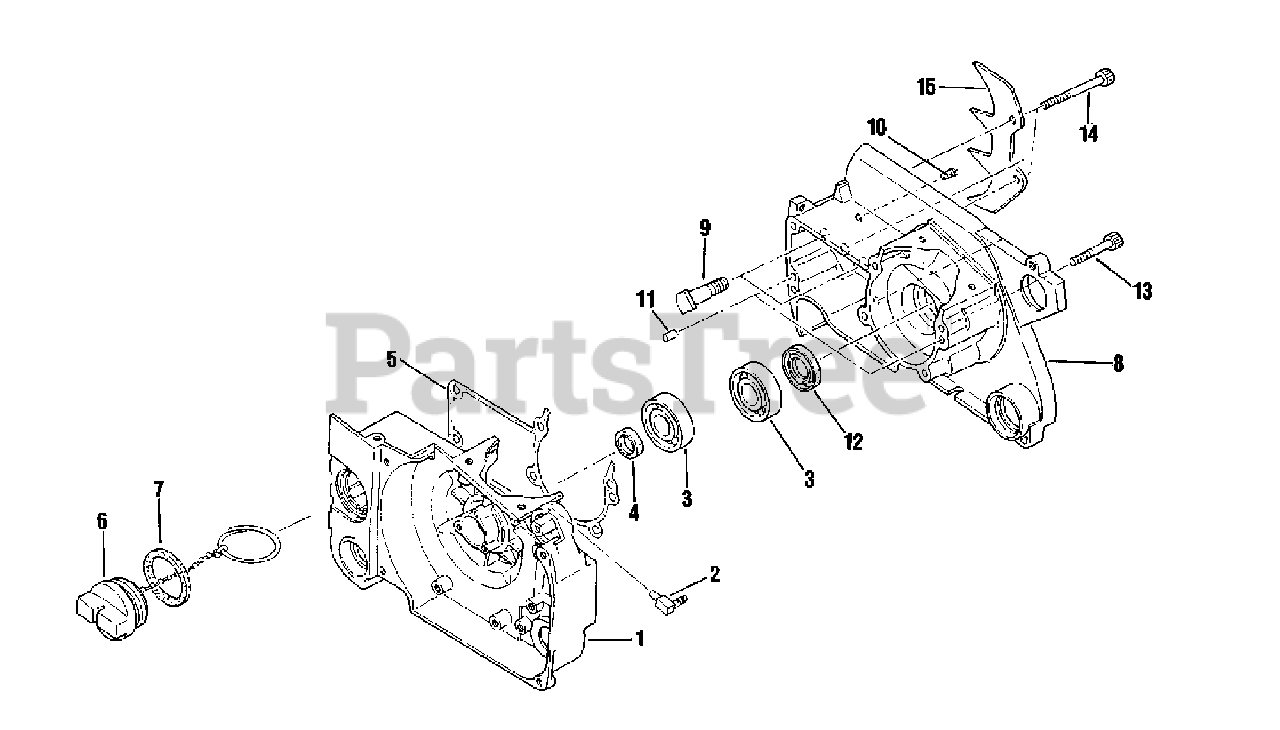

Crankcase Parts Diagram

  • Title

Echo 72281-21201

CRANKCASE ASSY - LEFT
(Superseded to Discontinued)

Note: MODEL 575

$

$

Not available

1

------------------

CRANKCASE ASSY

Note: ORDER P/N 72281-21201

$

$

Not available

2

Echo 22150-21220

CONNECTOR, PIPE
(Superseded to V185000000)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 02000-06202

BEARING, BALL - 6202
(Superseded to 90081006202)

Note: MODELS 550/680

$9.99

$

In Stock, Qty 6

0

4

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

3

Echo 02030-06202

BEARING, BALL - 6202
(Superseded to 90081036202)

Note: MODEL 575

$9.99

$

In Stock, Qty 6

0

5

Echo 22150-21711

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

Echo 22150-21300

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

6

------------------

CAP, OIL

Note: ORDER P/N 22150-21300

$

$

Not available

7

Echo 22150-21340

GASKET
(Superseded to Discontinued)

$

$

Not available

Echo 22155-21500

CRANKCASE ASSY - RIGHT
(Superseded to 22152-21501)

Note: MODEL 575

$73.99

$

Usually ships in 2-4 days

0

8

------------------

CRANKCASE ASSY - C

Note: ORDER P/N 22155-21500

$

$

Not available

9

Echo 22150-21521

STUD, GUIDE BAR
(Superseded to V225000170)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 22150-21610

VALVE, CHECK
(Superseded to 43611413930)

$6.49

$

In Stock, only 1 left!

0

11

Echo 20000-21140

PIN - LOCATING
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

3

Echo 02000-06202

BEARING, BALL - 6202
(Superseded to 90081006202)

Note: MODELS 550/680

$9.99

$

In Stock, Qty 6

0

12

Echo 22155-21630

SEAL, OIL
(Superseded to V508000080)

$11.99

$

In Stock, only 1 left!

0

13

Echo 01020-05350

SCREW - 5X35
(Superseded to 90010505035)

$1.49

$

In Stock, only 1 left!

0

14

Echo 01020-05500

SCREW - 5X50
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0

15

Echo 72230-52630

SPIKE
(Superseded to C304000160)

$8.99

$

Usually ships in 2-4 days

0
