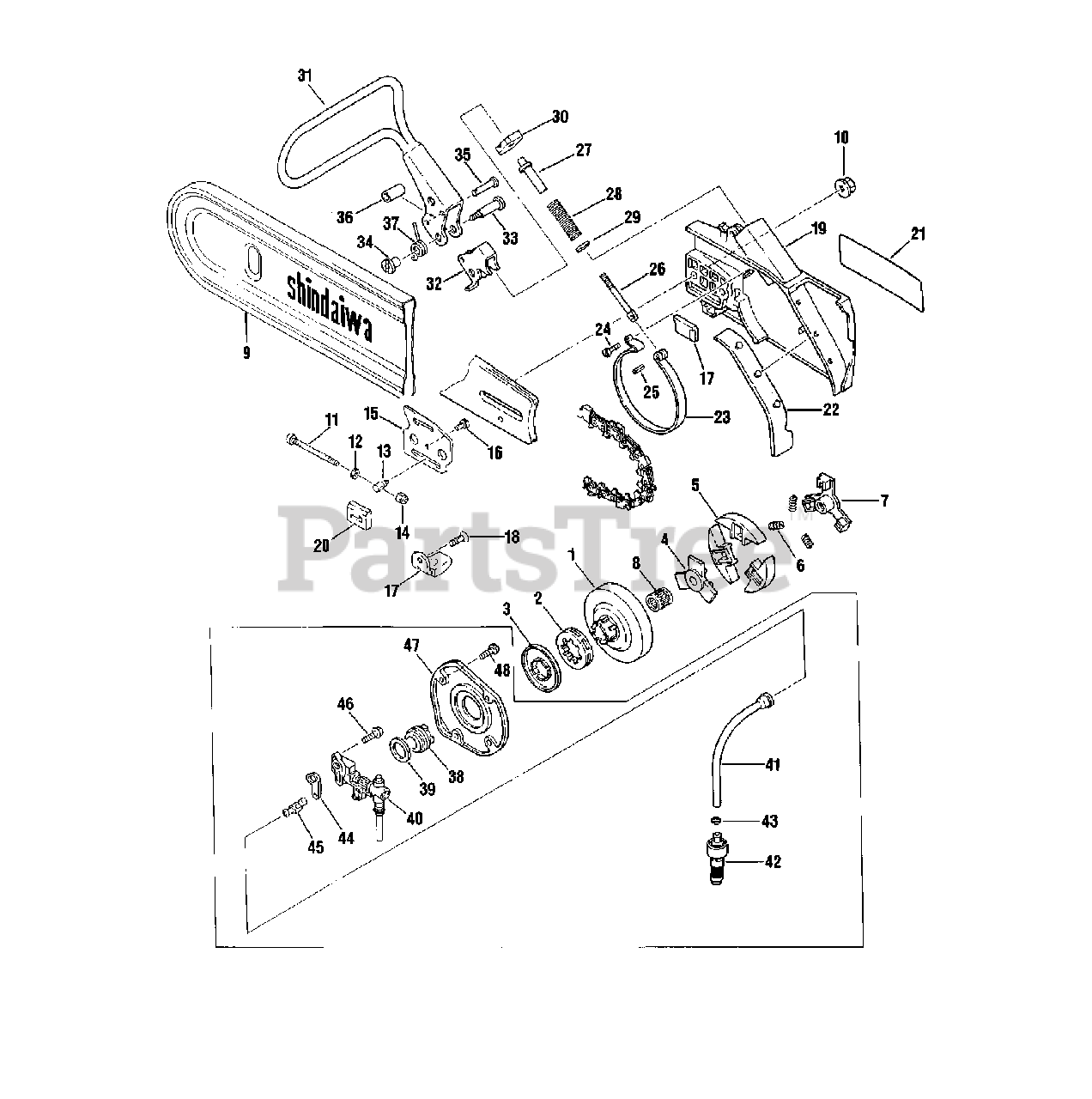

550 - Shindaiwa Chainsaw Clutch Drum, Brake Parts Diagram

Chainsaw

Clutch Drum, Brake Parts Diagram

  • Title

Echo 22155-51500

CLUTCH DRUM ASSY
(Superseded to P021022060)

$81.99

$

Usually ships in 2-4 days

0

1

DRUM, CLUTCH

Note: ORDER P/N 22155-51500

$

$

Not available

2

Echo 22150-51520

SPROCKET, RIM
(Superseded to 17503314731)

$14.99

$

In Stock, only 1 left!

0

3

Echo 22155-51530

COVER, RIM
(Superseded to V311000120)

$3.49

$

Usually ships in 2-4 days

0

Echo 22155-51200

CLUTCH ASSY
(Superseded to A056000640)

$100.99

$

Usually ships in 2-4 days

0

4

Echo 22155-51210

HUB, CLUTCH - INNER
(Superseded to A552000270)

$35.99

$

Usually ships in 2-4 days

0

5

Echo 22155-51220

SHOE, CLUTCH
(Superseded to A555000240)

$15.99

$

In Stock, only 2 left!

0

6

Echo 22150-51230

SPRING, CLUTCH
(Superseded to A566000210)

$1.99

$

In Stock, only 3 left!

0

7

Echo 22155-51240

HUB, CLUTCH - INNER

$32.99

$

Usually ships in 2-4 days

0

8

Echo 22150-51310

BEARING, NEEDLE
(Superseded to V558000000)

$9.49

$

Usually ships in 2-4 days

0

9

Echo 22150-52310

PROTECTOR

Note: 20"

$

$

Currently unavailable

10

Echo 22150-52411

NUT
(Superseded to V265000230)

$4.99

$

Usually ships in 2-4 days

0

11

Echo 22155-53310

BAR ADJUSTING SCREW
(Superseded to V253000600)

$1.99

$

In Stock, Qty 7

0

12

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 22150-52440

TENSIONER, CHAIN
(Superseded to C309000110)

$2.49

$

In Stock, Qty 14

0

14

Echo 22100-53330

LOCKNUT
(Superseded to V263000280)

$0.99

$

In Stock, Qty 5

0

15

Echo 22150-52460

MOUNT GUARD

$2.99

$

Usually ships in 2-4 days

0

16

Echo 11205-04100

SCREW - 4X10
(Superseded to 9157304010)

$0.99

$

In Stock, Qty 5

0

17

Echo 22150-52510

CATCHER, CHAIN

$6.49

$

Usually ships in 2-4 days

0

18

Echo 01201-05120

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

Echo 72282-54090

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 22155-54100

CLUTCH COVER ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 22150-52470

GUIDE, CHAIN
(Superseded to Discontinued)

$

$

Not available

21

Echo 72230-54140

NAME PLATE (C)
(Superseded to Discontinued)

$

$

Not available

22

Echo 22150-54160

PROTECTOR
(Superseded to Discontinued)

$

$

Not available

23

Echo 22150-54211

BAND, BRAKE
(Superseded to C328000260)

$13.99

$

Usually ships in 2-4 days

0

24

Echo 22150-54220

BAND BOLT

$

$

Currently unavailable

25

Echo 02427-40125

PIN
(Superseded to 90034240012)

$0.99

$

In Stock, Qty 6

0

26

Echo 22150-54311

ROD, ADJUST
(Superseded to V253000700)

$1.99

$

Usually ships in 2-4 days

0

27

Echo 22150-54320

SCREW, ADJUST
(Superseded to A613000060)

$6.49

$

Usually ships in 2-4 days

0

28

Echo 22150-54330

SPRING, BRAKE
(Superseded to V450001200)

$2.49

$

Usually ships in 2-4 days

0

29

Echo 22150-54340

WASHER
(Superseded to V303000330)

$0.99

$

Usually ships in 2-4 days

0

30

Echo 22150-54410

BLOCK
(Superseded to C321000030)

$6.49

$

Usually ships in 2-4 days

0

31

Echo 72231-54511

LEVER, BRAKE
(Superseded to C320000350)

$45.99

$

In Stock, only 1 left!

0

32

Echo 22150-54520

LEVER - INNER
(Superseded to 22150-54522)

$12.99

$

Usually ships in 2-4 days

0

33

Echo 72231-54580

BOLT, LEVER, USE 22161-54580
(Superseded to 22161-54580)

$4.49

$

In Stock, only 1 left!

0

34

Echo 72231-54590

NUT
(Superseded to 22175-54590)

$2.99

$

Usually ships in 2-4 days

0

35

Echo 72231-54610

PIN - STOPPER
(Superseded to V641000210)

$1.99

$

Usually ships in 2-4 days

0

36

Echo 22150-54620

CUSHION
(Superseded to Discontinued)

$

$

Not available

37

Echo 22150-54630

SPRING
(Superseded to V452000920)

$1.99

$

In Stock, only 1 left!

0

38

Echo 22155-55110

GEAR
(Superseded to V652000180)

$1.99

$

Usually ships in 2-4 days

0

39

Echo 22150-55120

PLATE, THRUST
(Superseded to V393000010)

$0.99

$

In Stock, Qty 8

0

40

Echo 22150-55201

OIL PUMP ASSY

$

$

Currently unavailable

Echo 22150-55302

OIL TUBE ASSY
(Superseded to Discontinued)

$

$

Not available

41

TUBE, OIL

Note: ORDER P/N 22150-55302

$

$

Not available

42

Echo 22150-57361

FILTER, OIL
(Superseded to Discontinued)

$

$

Not available

43

Echo 22100-57370

CLIP
(Superseded to V490000740)

$0.99

$

Usually ships in 2-4 days

0

44

Echo 22150-55411

GASKET, PUMP
(Superseded to V112000000)

$2.49

$

In Stock, only 2 left!

0

45

Echo 22150-5421

ELBOW

$

$

Currently unavailable

46

Echo 11205-04160

SCREW - 4X16
(Superseded to 9157304016)

$0.99

$

Usually ships in 2-4 days

0

47

Echo 22150-56110

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

48

Echo 11205-04100

SCREW - 4X10
(Superseded to 9157304010)

$0.99

$

In Stock, Qty 5

0

Echo 99909-89

OIL PUMP REPAIR KIT
(Superseded to Discontinued)

Note: SB 24

$

$

Not available
