550 H EPOS - Husqvarna Automower Robotic Lawn Mower with EPOS Guidance CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower with EPOS Guidance

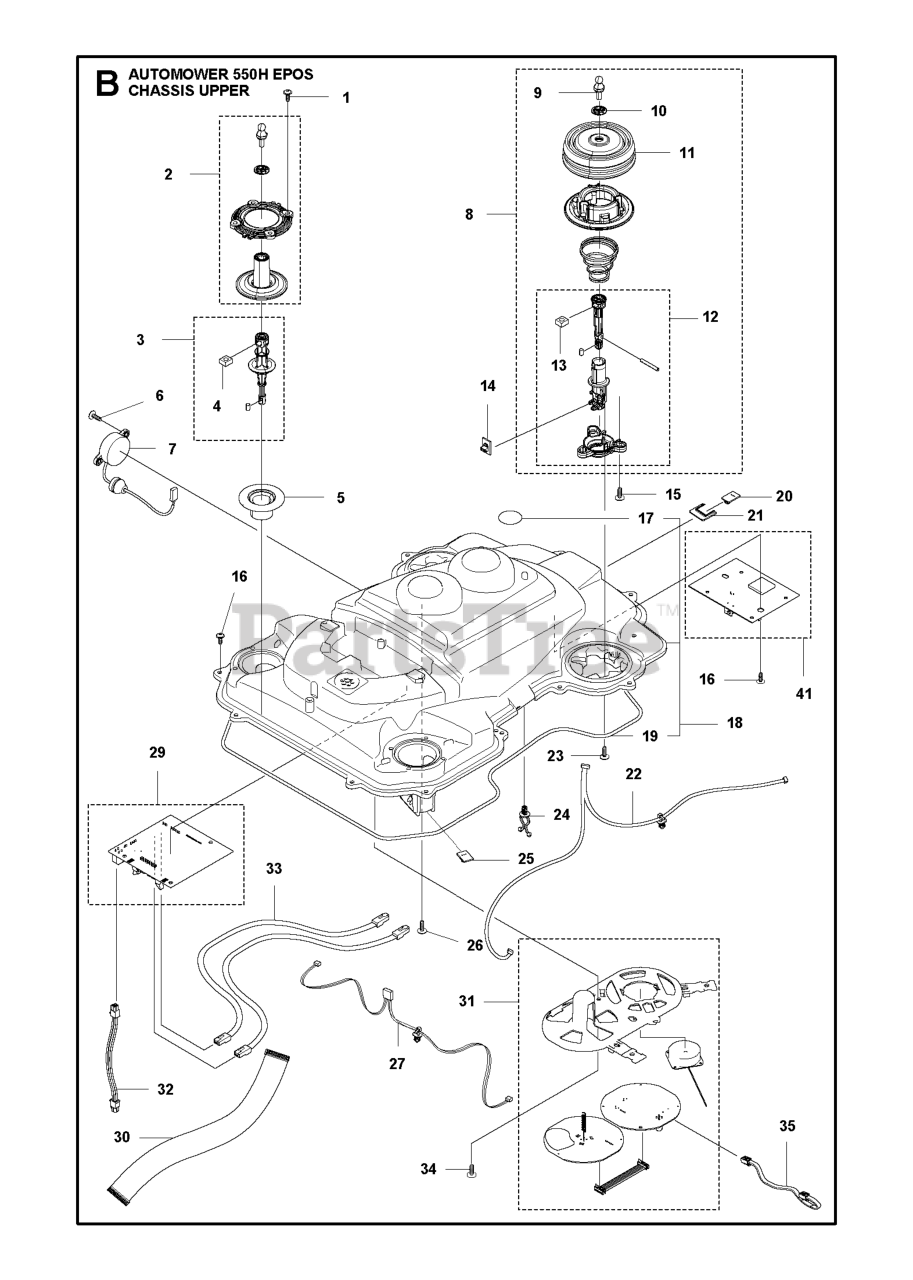

CHASSIS UPPER Parts Diagram

  • Title

29

Husqvarna 597977401

PRINTED CIRCUIT ASSY PCBA APPL

Note: PCB Application Board

$250.99

$

Usually ships in 3-10 days

0

18

Husqvarna 529564201

CHASSIS KIT UPPER 550 EPOS / 5

Note: Chassis KIT

$159.99

$

Usually ships in 3-10 days

0

25

Husqvarna 592852401

PRINTED CIRCUIT ASSY COLLISION

Note: PCBA Collision Sensor

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587834901

CLIP COLLISION BOARD

Note: Clip

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 535143201

MOVEMENT LIMITER

Note: Deflection Limiter

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 579705902

WIRING ASSY LIFT SENSOR L1=670

Note: Wiring Assy Lift Sensor

$43.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581620903

JOYSTICK KIT

Note: Joystick KIT Front

$68.99

$

Usually ships in 3-10 days

0

20

Husqvarna 592852401

PRINTED CIRCUIT ASSY COLLISION

Note: PCBA Collision Sensor

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587448802

JOYSTICK KIT

Note: Joystick KIT

$22.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 579706302

BUZZER ASSY

Note: Buzzer

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 592852301

PRINTED CIRCUIT ASSY PCBA LIFT

Note: PCBA Lift sensor

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 589350805

WIRING ASSY MODULAR JACK 6/6 R

Note: Modular Cable

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder Twist Lock

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, only 2 left!

0

34

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

32

Husqvarna 591203102

WIRING ASSY HMI CABLE 4P L=33

Note: HMI Cable 4P

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574874705

SEALING STRIP

Note: Sealing Strip (1 pcs, Ø5 mm)

$9.49

$

In Stock, Qty 6

0

6

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

17

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter 10 pcs

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580526701

STUD SNAPLOC

Note: Stud

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, only 2 left!

0

41

Husqvarna 586662311

NEEDS DESCRIPTION

Note: AM Connect, KIT US/CA

$368.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501061301

JOYSTICK KIT REAR

Note: Joystick KIT Rear

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579474601

BELLOWS LIFT-COLLISION

Note: Bellows

$11.99

$

Usually ships in 3-10 days

0

35

Husqvarna 589350803

Wires

Note: Modular Jack

$

$

Not available

31

Husqvarna 599308602

HOLDER ASSY ANTENNA MODULE 915

Note: Holder Assy Antenna Module 915Mhz

$1937.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501122602

JOYSTICK KIT REAR

Note: Joystick Column KIT

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 579525701

WASHER JOYSTICK

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 579706201

LOOM MMI

Note: Wiring

$37.99

$

Usually ships in 3-10 days

0

27

Husqvarna 581660901

1OOM KIT COLLISION SENSOR

Note: Wiring ASSY Collision Sensor

$

$

Not available
