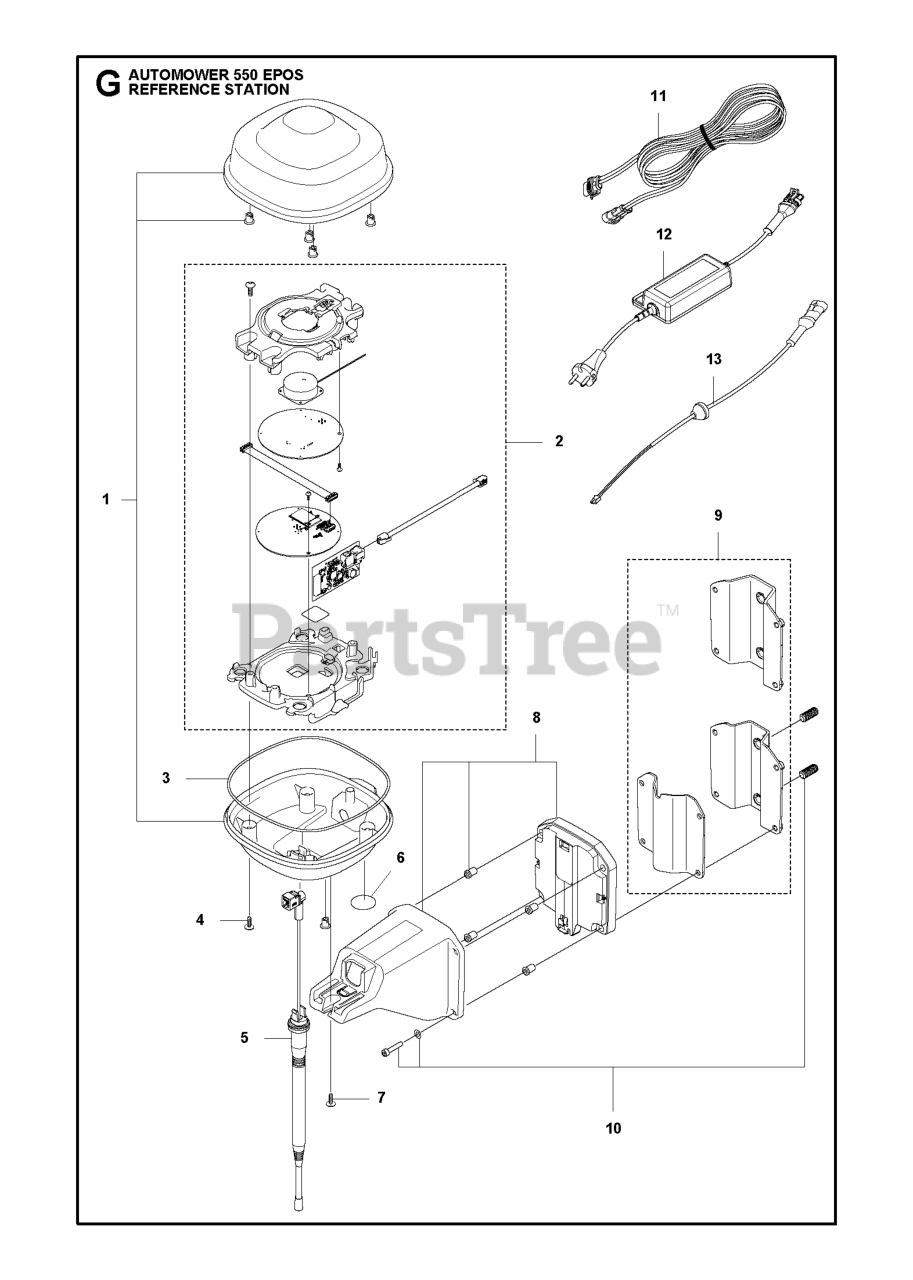

550 EPOS - Husqvarna Automower Robotic Lawn Mower with EPOS Guidance REFERENCE STATION Parts Diagram

Automower Robotic Lawn Mower with EPOS Guidance

REFERENCE STATION Parts Diagram

  • Title

13

Husqvarna 598936501

WIRING ASSY POWER REFERENCE ST

Note: Power Cable

$56.99

$

Usually ships in 3-10 days

0

8

Husqvarna 529413201

ARM ARM ASSY

Note: Link Arm kit

$62.99

$

Usually ships in 3-10 days

0

5

Husqvarna 598960502

ANTENNA ANT ELEV FEED 1/2 DIPO

Note: Antenna

$91.99

$

Usually ships in 3-10 days

0

12

Husqvarna 590442203

NEEDS DESCRIPTION

Note: Power Supply Unit CH

$

$

Currently unavailable

11

Husqvarna 579825103

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable, 3 m

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 599661501

PACKING ASSY POST FIXINGS KIT

Note: Fixing Kit

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579825102

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable, 10 m

$53.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579825104

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable, 5 m

$31.99

$

Usually ships in 3-10 days

0

12

Husqvarna 590442204

Power Unit

Note: Power Supply Unit US

$

$

Not available

6

Husqvarna 577753702

AIR FILTER P3 SPARES KIT (10)

Note: Air Filter, Goretext 14mm 10 pcs

$338.99

$

Usually ships in 3-10 days

0

12

Husqvarna 593163601

POWER UNIT POWER SUPPLY 1,3A

Note: Power Supply Unit EU

$

$

Not available

2

Husqvarna 599139801

NEEDS DESCRIPTION

Note: RTK module EU

$

$

Currently unavailable

11

Husqvarna 579825101

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable, 20 m

$93.99

$

Usually ships in 3-10 days

0

2

Husqvarna 599139802

PRINTED CIRCUIT ASSY RTK ASSY

Note: RTK module US

$

$

Not available

1

Husqvarna 529440101

HOUSING ASSY ENCLOSURE SPARES

Note: Enclosure Kit

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 599631901

SCREW ITXPANM PAN HEAD EPDM SE

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 529650701

BRACKET POST FIXING KIT

Note: Post Bracker Kit

$79.99

$

Usually ships in 3-10 days

0

3

Husqvarna 599911801

SEAL EPDM LOOP REFERENCE STATI

Note: EPDM Seal

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588222201

SCREW ITXPANM M4X12 A2-70 PAT

Note: Screw

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 590442202

NEEDS DESCRIPTION

Note: Power Supply Unit UK

$

$

Currently unavailable

12

Husqvarna 590442205

NEEDS DESCRIPTION

Note: Power Supply Unit AU/NZ

$

$

Currently unavailable
