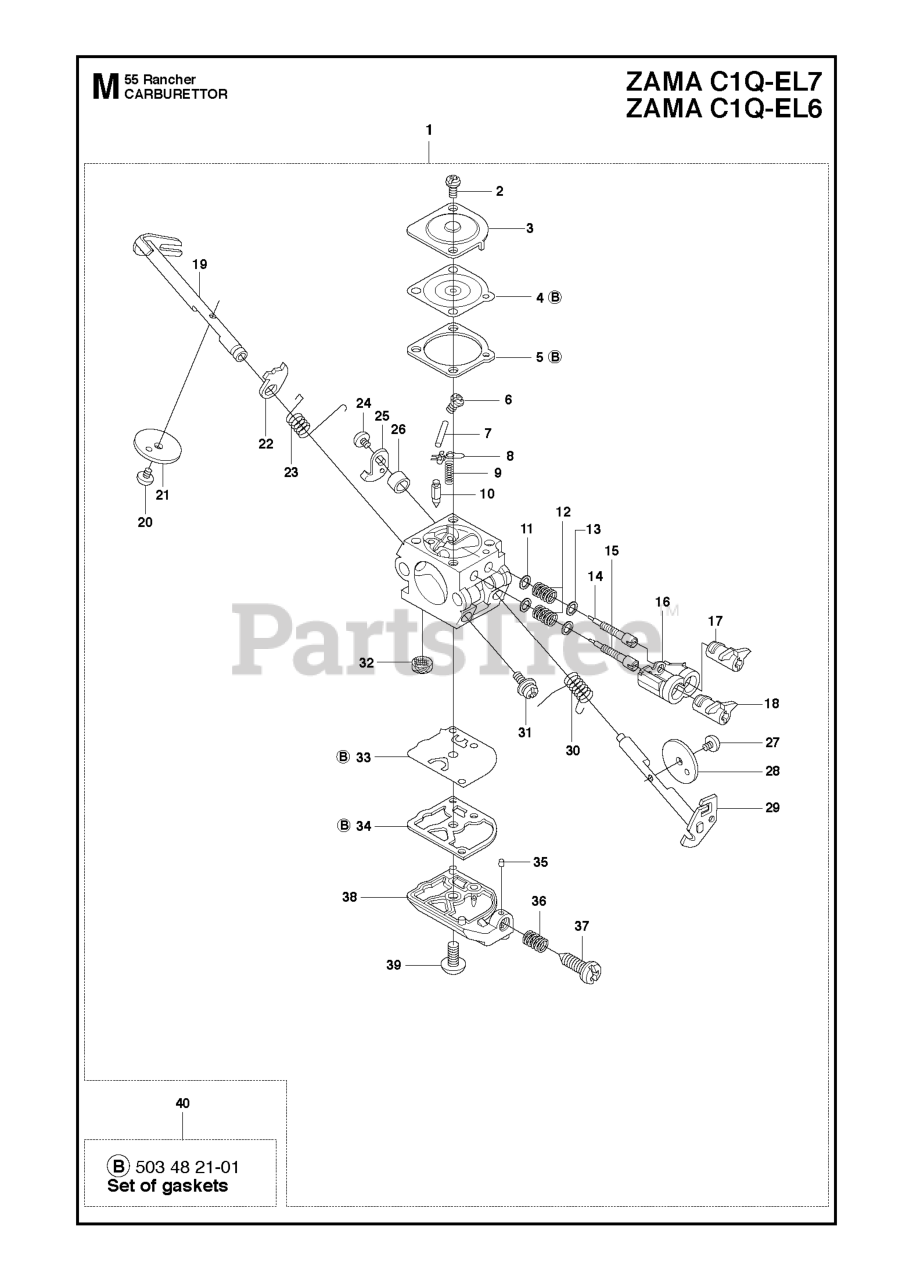

55 RANCHER - Husqvarna Chainsaw (SN: 20101400001 & Above) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

34

Husqvarna 503479401

GASKET PUMPSIDE

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 503994301

SPRING

Note: EPA, EU1

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503903101

WASHER

Note: EPA, EU1

$

$

Not available

31

Husqvarna 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

3

Husqvarna 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

29

Husqvarna 503974201

THROTTLE SHAFT

$6.91

$

Usually ships in 3-10 days

0

11

Husqvarna 503903101

WASHER

Note: EPA, EU1

$

$

Not available

35

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503478801

STARTER LEVER

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 503805601

PUMP DIAPHRAGM

$6.99

$

In Stock, only 4 left!

0

22

Husqvarna 503481601

STARTER LEVER

$1.49

$

Usually ships in 3-10 days

0

17

Husqvarna 503903201

LIMITER CAP

Note: EPA, EU1

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 503283105

CARBURETOR CIQ-EL6 ZAMA

Note: ZAMA C1Q-EL6

$119.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503479501

PUMPCOVER

$10.37

$

Usually ships in 3-10 days

0

27

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 503479101

THROTTLEFLAP

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503480701

HI-SPEED NEEDLE

Note: L

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 503481701

CHOKE FLAP

$6.99

$

In Stock, only 3 left!

0

36

Husqvarna 503481001

SPRING

$2.49

$

Usually ships in 3-10 days

0

10

Husqvarna 503479701

INLET NEEDLE

$10.99

$

In Stock, only 1 left!

0

18

Husqvarna 503903301

LIMITER CAP

Note: EPA, EU1

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503974401

NEEDLE

Note: H

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 503283106

CARBURETOR CIQ-EL7 EPA ZAMA

Note: ZAMA C1Q-EL7 (EPA, EU1)

$119.99

$

In Stock, only 2 left!

0

19

Husqvarna 503974501

CHOKE SHAFT

Note: EPA, EU1

$

$

Not available

40

Husqvarna 503482101

DIAPHRAGM GASKET KIT

Note: B = Set of Gaskets

$13.99

$

In Stock, only 2 left!

0

20

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537134901

SPRING

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

16

Husqvarna 503903401

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503902901

LOW SPEED NEEDLE

Note: L, EPA, EU1

$

$

Not available

37

Husqvarna 503480901

SCREW

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503481301

FUEL INLET SCREEN

$3.99

$

In Stock, only 4 left!

0

30

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 503479901

SPRING

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503480201

METERING DIAPHRAGM

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503665901

LEVER

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

6

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537077201

NEEDLE HIGH SPEED

Note: H, EPA, EU1

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 503480301

GASKET METERING SIDE

$5.99

$

In Stock, only 2 left!

0
