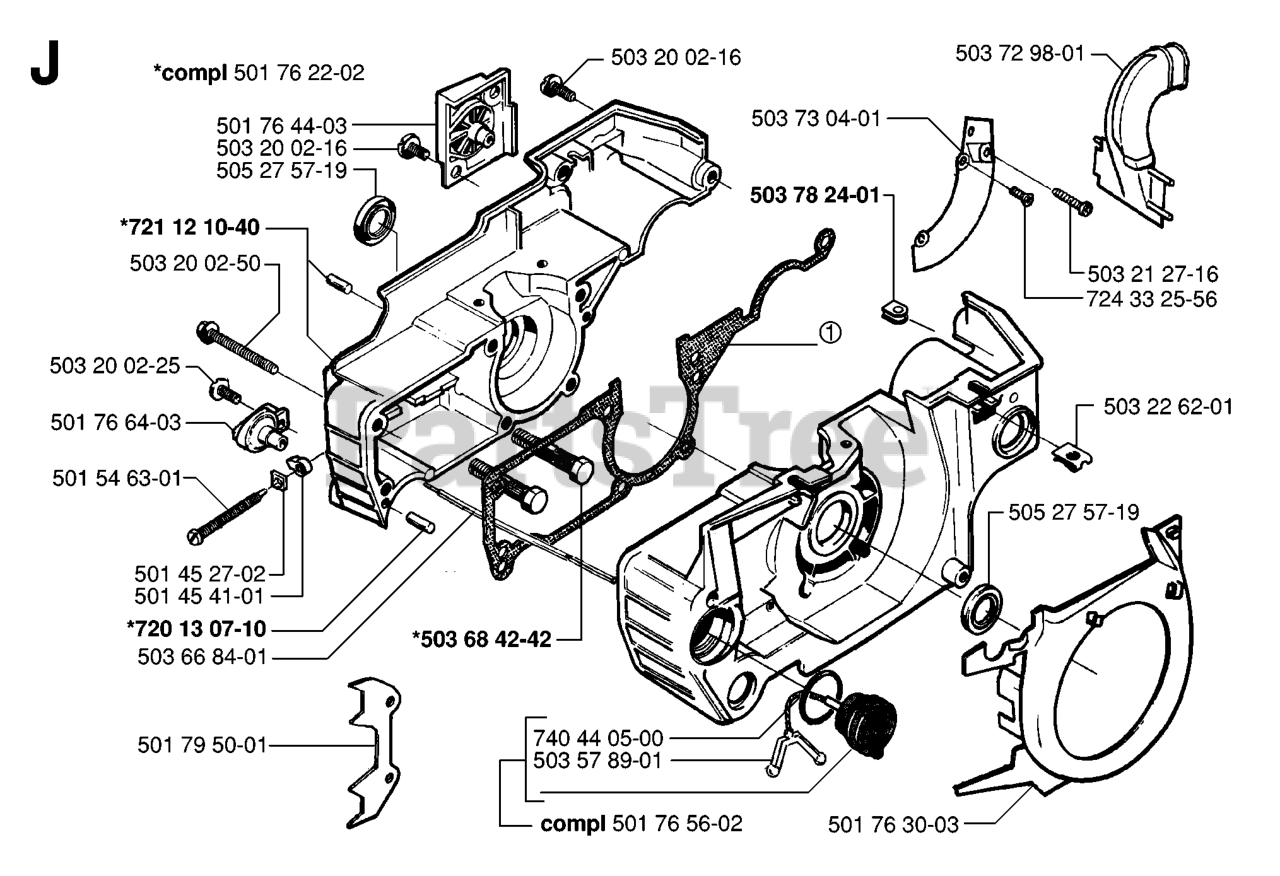

55 RANCHER - Husqvarna Chainsaw (SN: 19983100001 - 20001900000) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

501 76 22-02

Husqvarna 501762202

CRANKCASE

$

$

Not available

503 78 24-01

Husqvarna 503782401

BELLOWS

$

$

Not available

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

501 79 50-01

Husqvarna 501795001

FELLING DOG

$

$

Not available

503 20 02-25

Husqvarna 503200225

SCREW

$4.99

$

In Stock, only 2 left!

0

503 21 27-16

Husqvarna 503212716

SCREW

$6.49

$

In Stock, Qty 20+

0

505 27 57-19

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, only 3 left!

0

503 68 42-42

Husqvarna 503684242

BAR BOLT

$

$

Not available

501 54 63-01

Husqvarna 501546301

SCREW

$5.99

$

In Stock, only 1 left!

0

501 76 64-03

Husqvarna 501766403

CHAIN CATCHER

$7.49

$

In Stock, only 4 left!

0

503 20 02-16

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

501 76 30-03

Husqvarna 501763003

AIR CONDUCTOR

$17.99

$

In Stock, only 1 left!

0

501 76 44-03

Husqvarna 501764403

CAP

$13.99

$

In Stock, only 2 left!

0

721 12 10-40

Husqvarna 721121040

GROOVED PIN 3X20

$

$

Not available

501 45 27-02

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 20+

0

501 45 41-01

Husqvarna 501454101

PAWL

$6.99

$

In Stock, Qty 5

0

501 76 56-02

Husqvarna 501765602

OIL CAP

$10.99

$

In Stock, only 2 left!

0

503 20 02-50

Husqvarna 503200250

RP SCREW
(Superseded to 503207450)

$6.99

$

In Stock, only 1 left!

0

724 33 25-56

Husqvarna 724332556

SCREW ***

$

$

Not available

720 13 07-10

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

740 44 05-00

Husqvarna 740440500

O-RING

$7.49

$

Usually ships in 3-10 days

0

503 22 62-01

Husqvarna 503226201

PLATE NUT

$

$

Not available

503 72 98-01

Husqvarna 503729801

AIR NOZZLE

$

$

Not available

503 66 84-01

Husqvarna 503668401

OIL TANK VENT

$

$

Not available

503 73 04-01

Husqvarna 503730401

AIR BAFFLE

$8.07

$

Usually ships in 3-10 days

0
