55 R21 HVB (954223210) - Husqvarna Walk-Behind Mower (2005-01) HANDLE Parts Diagram

Walk-Behind Mower

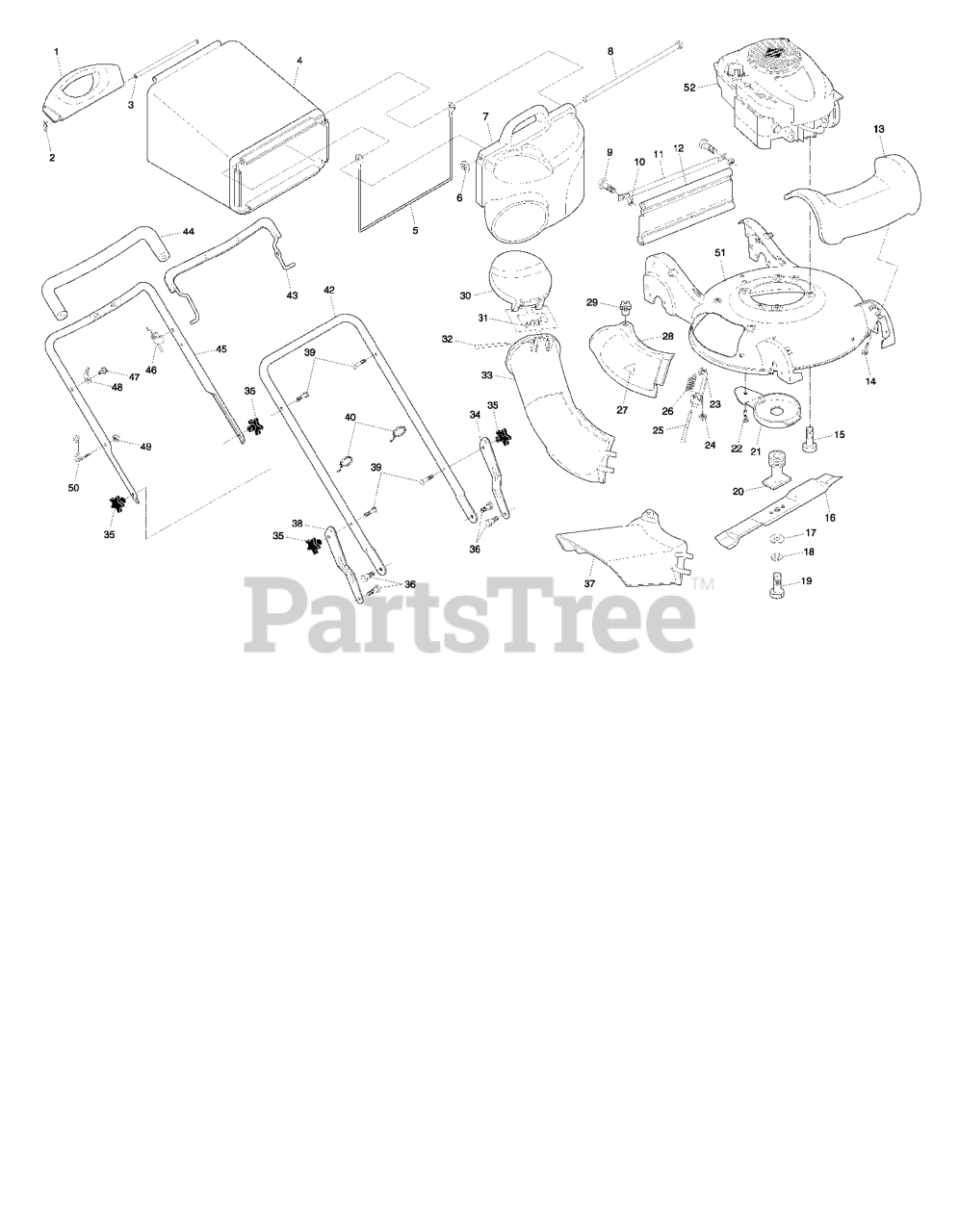

HANDLE Parts Diagram

  • Title

46

Husqvarna 532183473

ASSY ZONE CONTROL
(Superseded to 532424983)

Note: 532183473

$17.99

$

In Stock, Qty 7

0

16

Husqvarna 532187183

21"BLADE (2004 MODEL 55R21HV)
(Superseded to 532159267)

Note: 532187183

$27.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: "532162300, (not shown)"

$1.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532190566

SKIRT, REAR
(Superseded to 532188503)

Note: 532190566

$18.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532190582

HANDLE.GRASSBAG.REAR.H-GRAY

Note: 532190582

$14.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

9

Husqvarna 872140405

BOLT T

Note: 872140405

$7.49

$

In Stock, Qty 7

0

6

Husqvarna 812000014

E-RING

Note: 812000014

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532187426

BRACKET ADJ LOWER HNDLE RH
(Superseded to 532187064)

$

$

Not available

27

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: 532150406

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532183478

SPRING

Note: 532183478

$7.99

$

In Stock, only 1 left!

0

23

Husqvarna 532183609

BRACKET.ASM.HINGE

Note: 532183609

$

$

Not available

35

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

Note: 532185588

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532184572

SCREW
(Superseded to 532194189)

Note: 532184572

$7.49

$

In Stock, Qty 20+

0

52

NEEDS DESCRIPTION

Note: (Order parts from Engine Manufacturer)

$

$

Not available

47

Husqvarna 532184570

SCREW

Note: 532184570

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

DISCHARGE CHUTE PLASTIC
(Superseded to 532188504)

Note: 532190578

$

$

Not available

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

Note: 532183483

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

Note: 532183445

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

Note: 532183445

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532183431

SCREW.HX.HEAD.3/8-24

Note: 532183431

$

$

Not available

43

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

Note: 532186298

$

$

Not available

49

Husqvarna 532184569

HEX NUT

Note: 532184569

$

$

Not available

42

Husqvarna 532187096

HANDLE.LOWER.GREY

Note: 532187096

$31.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 532183446

SPRING.MULCH.DOOR

Note: 532183446

$7.49

$

In Stock, only 4 left!

0

29

Husqvarna 532183447

KNOB.MULCH.DOOR

Note: 532183447

$

$

Not available

10

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

Note: 873800400

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 532189014

CHUTE.LOWER.ASM.WALK.MOWER

Note: 532189014

$

$

Not available

44

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

Note: 532182748

$

$

Not available

8

Husqvarna 532183479

ROD, PIVOT

Note: 532183479

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190577

GRASSBAG
(Superseded to 532410670)

Note: 532190577

$93.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

24

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

22

Husqvarna 817600406

SCREW 1/4X20

Note: 817600406

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532190519

COVER, FRONT
(Superseded to 586531501)

Note: 532190519

$

$

Not available

39

Husqvarna 532184568

HANDLE BOLT
(Superseded to 532191575)

Note: 532184568

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 532188506

FRAME, GRASSBAG

Note: 532188506

$27.99

$

In Stock, only 1 left!

0

50

Husqvarna 532188501

GUIDE.ROPE.WALK.MOWER

Note: 532188501

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532190692

TUBE, REAR SKIRT
(Superseded to 532188359)

Note: 532190692

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532183428

ADAPTER, BLADE
(Superseded to 532186766)

Note: 532183428

$40.99

$

In Stock, only 1 left!

0

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

Note: 532065322

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532189792

KIT.HSG.ASM.21".HV.ORNG
(Superseded to 532197562)

Note: 532189792

$

$

Not available

34

Husqvarna 532187425

BRACKET
(Superseded to 532187063)

Note: 532187425

$

$

Not available

21

Husqvarna 532190516

DEBRIS SHEILD
(Superseded to 532188510)

Note: 532190516

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532190581

DOOR, GRASSBAG
(Superseded to 532188498)

Note: 532190581

$50.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

Note: 532185996

$

$

Not available

28

Husqvarna 532190515

MULCHER DOOR
(Superseded to 532188507)

Note: 532190515

$

$

Not available

36

Husqvarna 532183465

SHOULDER BOLT
(Superseded to 532194187)

Note: 532183465

$7.49

$

In Stock, only 3 left!

0

Husqvarna 532186302

GRASS BAG ASSY
(Superseded to 532431754)

Note: 532186302

$182.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532190580

CHUTE.DOOR.21.HV.H-GRAY

Note: 532190580

$17.99

$

In Stock, only 1 left!

0

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: "532186296, (Includes Foam Grip)"

$54.99

$

Usually ships in 3-10 days

0
