55 - Husqvarna Chainsaw (SN: 20051400001 - 20060600000) CARBURETOR DETAILS Parts Diagram

Chainsaw

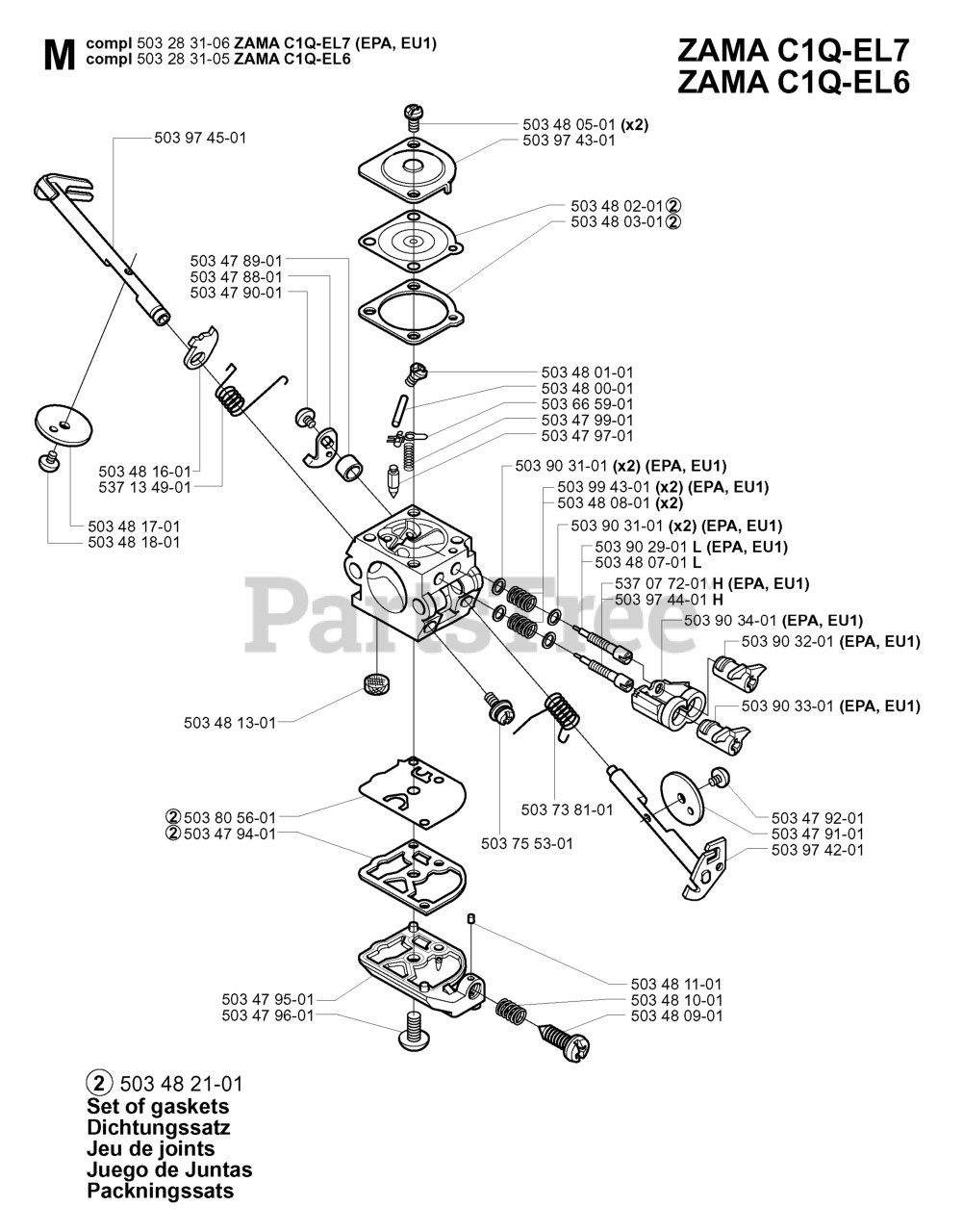

CARBURETOR DETAILS Parts Diagram

  • Title

503 47 90-01

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

503 90 31-01

Husqvarna 503903101

WASHER

Note: EPA, EU1

$

$

Not available

503 90 29-01

Husqvarna 503902901

LOW SPEED NEEDLE

Note: L EPA, EU1

$

$

Not available

537 13 49-01

Husqvarna 537134901

SPRING

$3.49

$

Usually ships in 3-10 days

0

503 97 42-01

Husqvarna 503974201

THROTTLE SHAFT

$6.91

$

Usually ships in 3-10 days

0

503 48 08-01

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

503 73 81-01

Husqvarna 503738101

SPRING

$3.49

$

Usually ships in 3-10 days

0

503 48 07-01

Husqvarna 503480701

HI-SPEED NEEDLE

Note: L

$9.49

$

Usually ships in 3-10 days

0

503 47 96-01

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

503 48 11-01

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

503 47 99-01

Husqvarna 503479901

SPRING

$3.49

$

Usually ships in 3-10 days

0

503 48 18-01

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

503 80 56-01

Husqvarna 503805601

PUMP DIAPHRAGM

Note: 503 48 21-01 SET OF GASKETS

$6.99

$

In Stock, only 4 left!

0

503 28 31-05

Husqvarna 503283105

CARBURETOR CIQ-EL6 ZAMA

Note: ZAMA C1Q-EL6

$119.99

$

Usually ships in 3-10 days

0

503 47 88-01

Husqvarna 503478801

STARTER LEVER

$4.99

$

In Stock, only 1 left!

0

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

503 97 44-01

Husqvarna 503974401

NEEDLE

Note: H

$5.99

$

Usually ships in 3-10 days

0

503 48 02-01

Husqvarna 503480201

METERING DIAPHRAGM

Note: 503 48 21-01 SET OF GASKETS

$13.99

$

Usually ships in 3-10 days

0

503 90 33-01

Husqvarna 503903301

LIMITER CAP

Note: EPA, EU1

$4.99

$

Usually ships in 3-10 days

0

503 48 10-01

Husqvarna 503481001

SPRING

$2.49

$

Usually ships in 3-10 days

0

503 48 01-01

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

503 48 16-01

Husqvarna 503481601

STARTER LEVER

$1.49

$

Usually ships in 3-10 days

0

503 28 31-06

Husqvarna 503283106

CARBURETOR CIQ-EL7 EPA ZAMA

Note: ZAMA C1Q-EL7 (EPA, EU1)

$119.99

$

In Stock, only 2 left!

0

503 97 45-01

Husqvarna 503974501

CHOKE SHAFT

$

$

Not available

503 47 92-01

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

503 75 53-01

Husqvarna 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

503 90 32-01

Husqvarna 503903201

LIMITER CAP

Note: EPA, EU1

$4.99

$

Usually ships in 3-10 days

0

537 07 72-01

Husqvarna 537077201

NEEDLE HIGH SPEED

Note: H EPA, EU1

$17.99

$

Usually ships in 3-10 days

0

503 99 43-01

Husqvarna 503994301

SPRING

Note: EPA, EU1

$3.49

$

Usually ships in 3-10 days

0

503 48 13-01

Husqvarna 503481301

FUEL INLET SCREEN

$3.99

$

In Stock, only 4 left!

0

503 48 09-01

Husqvarna 503480901

SCREW

$6.99

$

Usually ships in 3-10 days

0

503 47 91-01

Husqvarna 503479101

THROTTLEFLAP

$5.99

$

Usually ships in 3-10 days

0

503 48 17-01

Husqvarna 503481701

CHOKE FLAP

$6.99

$

In Stock, only 3 left!

0

503 97 43-01

Husqvarna 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

503 48 05-01

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 47 97-01

Husqvarna 503479701

INLET NEEDLE

$10.99

$

Usually ships in 3-10 days

0

503 47 95-01

Husqvarna 503479501

PUMPCOVER

$10.37

$

Usually ships in 3-10 days

0

503 66 59-01

Husqvarna 503665901

LEVER

$4.99

$

In Stock, only 2 left!

0

503 48 03-01

Husqvarna 503480301

GASKET METERING SIDE

Note: 503 48 21-01 SET OF GASKETS

$5.99

$

In Stock, only 2 left!

0

503 47 89-01

Husqvarna 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

503 90 34-01

Husqvarna 503903401

SLEEVE

Note: EPA, EU1

$8.49

$

Usually ships in 3-10 days

0

503 47 94-01

Husqvarna 503479401

GASKET PUMPSIDE

Note: 503 48 21-01 SET OF GASKETS

$3.49

$

Usually ships in 3-10 days

0
