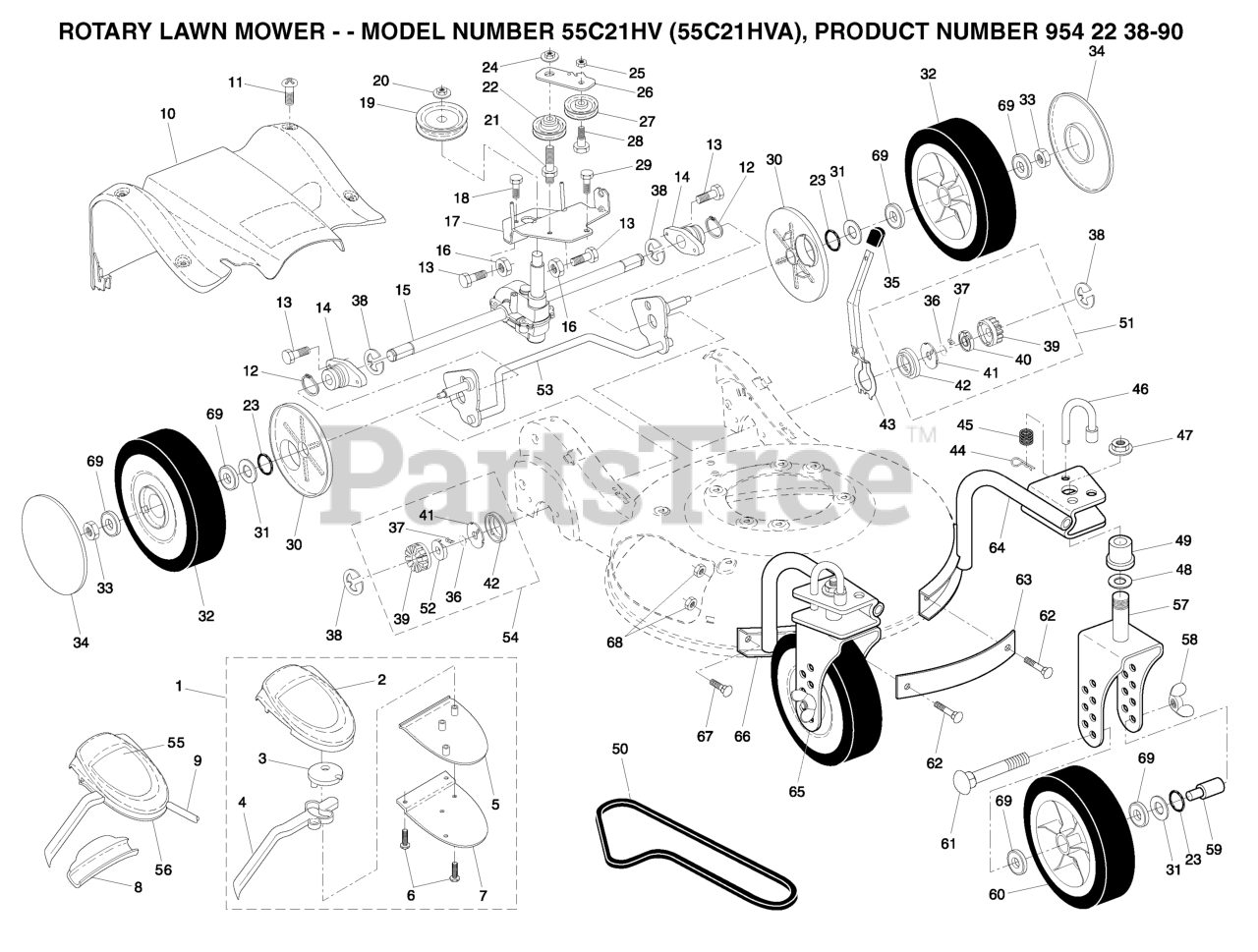

55 C21 HV (954223890) - Husqvarna Walk-Behind Mower (2003-12) REPAIR PARTS Parts Diagram

Walk-Behind Mower

REPAIR PARTS Parts Diagram

  • Title
14

Husqvarna 532187120

BEARING.SUPPORT.ASSEM

$

$

Not available

50

Husqvarna 532183688

BELT.DRIVE.EZ.WALK.HI-VAC

$

$

Not available

43

Husqvarna 532190520

LEVER, SELECTOR, HEIGHT, REAR
(Superseded to 532188508)

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532184172

SEAL.PINION

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

66

Husqvarna 532188683

SUPPORT TUBE ASSY, RH
(Superseded to 532414069)

$72.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532188279

COVER, DRIVE CONTROL, TOP
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532184571

SCREW
(Superseded to 532194188)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532184749

PULLEY HALVES
(Superseded to 532194128)

$20.99

$

In Stock, Qty 10

0

41

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532183699

TRANSMISSION.ASM.RGD.EZ.21
(Superseded to 532414975)

$113.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532187091

REAR AXLE ASSY.
(Superseded to 532183698)

$

$

Not available

64

Husqvarna 532188681

SUPPORT TUBE ASSY, LH
(Superseded to 532414070)

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532183450

RP SCREW
(Superseded to 532194186)

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532188475

STRAP.FRONT.CASTER.ORANGE

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

51

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

20

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532187093

BRACKET, TRANSMISSION
(Superseded to 532408005)

$15.99

$

In Stock, only 1 left!

0

7

Husqvarna 532187097

BRACKET, DRIVE CONTROL
(Superseded to 532400723)

$

$

Not available

22

Husqvarna 532184543

PULLEY ASSY
(Superseded to 532195326)

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532188280

CABLE, DRIVE CONTROL
(Superseded to 532196577)

$

$

Not available

21

Husqvarna 532188611

BOLT, IDLER

$2.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532183457

DUST COVER, WHEEL

$

$

Not available

39

Husqvarna 532175103

GEAR, PINION

$

$

Not available

1

Husqvarna 532185312

EZ WALK CONTROL
(Superseded to 532196577)

$

$

Not available

32

Husqvarna 532188631

WHEEL ASM, REAR 9 X 2-1/4
(Superseded to 532192622)

$79.99

$

In Stock, only 2 left!

0

69

Husqvarna 532751068

BEARING.8".WHEEL

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532188291

SPRING, TORSION

$4.99

$

In Stock, only 3 left!

0

52

Husqvarna 532175102

RETAINER, DRIVE, RH

$7.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532188684

BRACKET, CASTER WHEEL, RH
(Superseded to 532188662)

$

$

Not available

4

Husqvarna 532190283

LEVER, DRIVE CONTROL
(Superseded to 532425662)

$14.99

$

In Stock, only 4 left!

0

37

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, only 2 left!

0

46

$10.99

$

In Stock, only 1 left!

0

23

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532187098

BRACKET
(Superseded to 532195327)

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 872270528

CARRIAGE BOLT

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

44

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532166043

IDLER PULLEY

$31.99

$

In Stock, only 2 left!

0

35

Husqvarna 532185994

KNOB.SELECTOR.SPRG.H-GRY (2 2)

$15.99

$

In Stock, only 3 left!

0

68

Husqvarna 532187263

NUT
(Superseded to 539990717)

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532183695

RB HUBCAP.3-SPOKE.SILVER
(Superseded to 532183442)

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

48

Husqvarna 532188906

WASHER.FLAT.1/2

$7.99

$

In Stock, only 2 left!

0

57

Husqvarna 532188682

BRACKET, CASTER WHEEL, LH
(Superseded to 532188661)

$

$

Not available

58

Husqvarna 532187248

NUT.WING.5/16-18.YELLOW

$9.49

$

In Stock, only 1 left!

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532190565

COVER ASM. DRIVE
(Superseded to 532188356)

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532188278

COVER, DRIVE CONTROL BOTTOM
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$7.49

$

Usually ships in 3-10 days

0
