55 C21 HV (954223890-B) - Husqvarna Walk-Behind Mower (2005) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

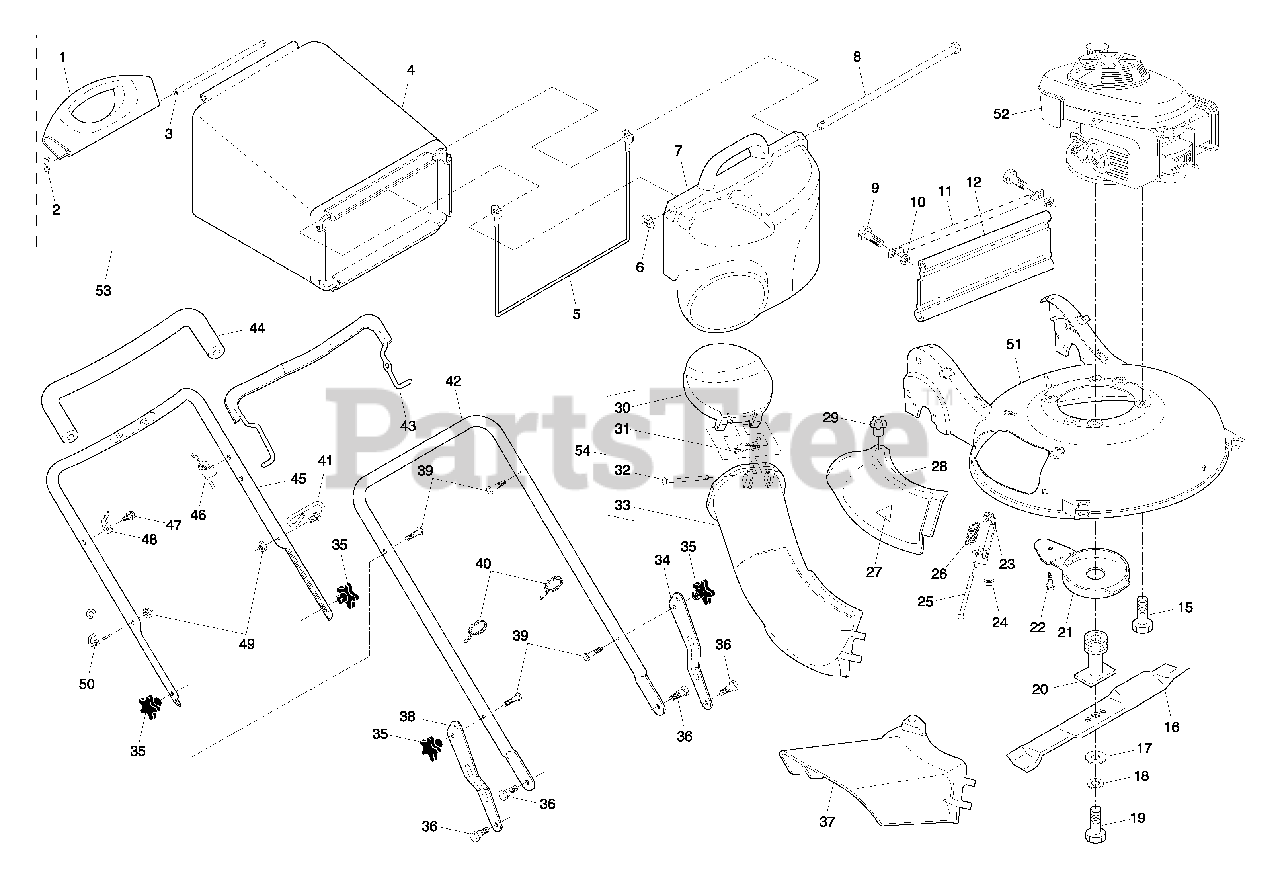

Handle & Deck Assembly Parts Diagram

  • Title

1

Electrolux/AYP 532190582

Handle, Grassbag, Rear
(Superseded to 583709001)

$20.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532065322

Hairpin Cotter

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532183483

Rod, Rear Handle, Grassbag

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 532190577

Grassbag
(Superseded to 532410670)

$93.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532188506

Frame, Grassbag

$27.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 812000014

E-Ring

$7.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532190581

Door, Grassbag
(Superseded to 532188498)

$53.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532183479

Rod, Pivot

$15.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 872140405

Screw

$7.49

$

In Stock, Qty 7

0

10

Electrolux/AYP 873800400

Nut, Hex, Nylock 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532190692

Tube, Rear Skirt
(Superseded to 532188359)

$34.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532190566

Skirt, Rear
(Superseded to 532188503)

$18.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532150406

Bolt, Engine Mounting

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532159267

Blade, 21"

$27.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532851074

Washer, Hardened

$4.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532850263

Washer, Lock
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532183431

Screw, Hex Head, Grade 8

$

$

Not available

20

Electrolux/AYP 532183428

Adapter, Blade
(Superseded to 532186766)

$40.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532190516

Debris Shield
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 817600406

Screw, Hex Head, Serrated

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Electrolux/AYP 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

25

Electrolux/AYP 532183445

Rod, Hinge

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532183446

Spring, Mulcher Door

$7.49

$

In Stock, only 4 left!

0

27

Electrolux/AYP 532107339

Decal, Danger
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

28

Electrolux/AYP 532190515

Mulcher Door
(Superseded to 532188507)

$

$

Not available

29

Electrolux/AYP 532183447

Knob

$

$

Not available

30

Electrolux/AYP 532190580

Door, Discharge Chute
(Superseded to 188497X418)

$

$

Not available

31

Electrolux/AYP 532183478

Spring, Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532183445

Rod, Door, Discharge Chute

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532190578

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

34

Electrolux/AYP 532190619

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Electrolux/AYP 532185588

Knob, Star

$7.49

$

In Stock, only 1 left!

0

36

Electrolux/AYP 532183465

Bolt, Shoulder
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

37

Electrolux/AYP 532185996

Deflector, Discharge

$

$

Not available

38

Electrolux/AYP 532190621

Adjustment Bracket, Lower Handle, RH
(Superseded to 532187064)

$

$

Not available

39

Electrolux/AYP 532184568

Bolt, Handle
(Superseded to 532191575)

$6.99

$

In Stock, only 2 left!

0

40

Electrolux/AYP 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532187162

Bracket, Anti-Fold

$11.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532187096

Handle Assembly, Lower
(Superseded to 532183464)

$

$

Not available

43

Electrolux/AYP 532186298

Bail, Control
(Superseded to 532426812)

$

$

Not available

44

Electrolux/AYP 532182748

Grip, Foam

$

$

Not available

45

Electrolux/AYP 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532183473

Cable, Engine Zone Control
(Superseded to 532424983)

$17.99

$

In Stock, Qty 7

0

47

Electrolux/AYP 532184570

Screw

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 532125203

Bracket, Upstop
(Superseded to 532086899)

$6.99

$

In Stock, only 3 left!

0

49

Electrolux/AYP 532184569

Nut, Hex

$

$

Not available

50

Electrolux/AYP 532188501

Rope Guide

$15.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 532190575

Kit, Housing

$

$

Not available

52

Engine, Honda, Model Number GCV160

Note: (for engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

53

Electrolux/AYP 532190579

Grass Catcher Assembly, Complete
(Superseded to 532401685)

Note: (Consists of Key Numbers 1-8)

$

$

Not available

54

Electrolux/AYP 532189014

Discharge Chute Assembly, Complete

Note: (Consists of Key Numbers 30-33)

$

$

Not available

Electrolux/AYP 532162300

Decal, Warning
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 532190871

Owner's Manual, English / French

$

$

Not available
