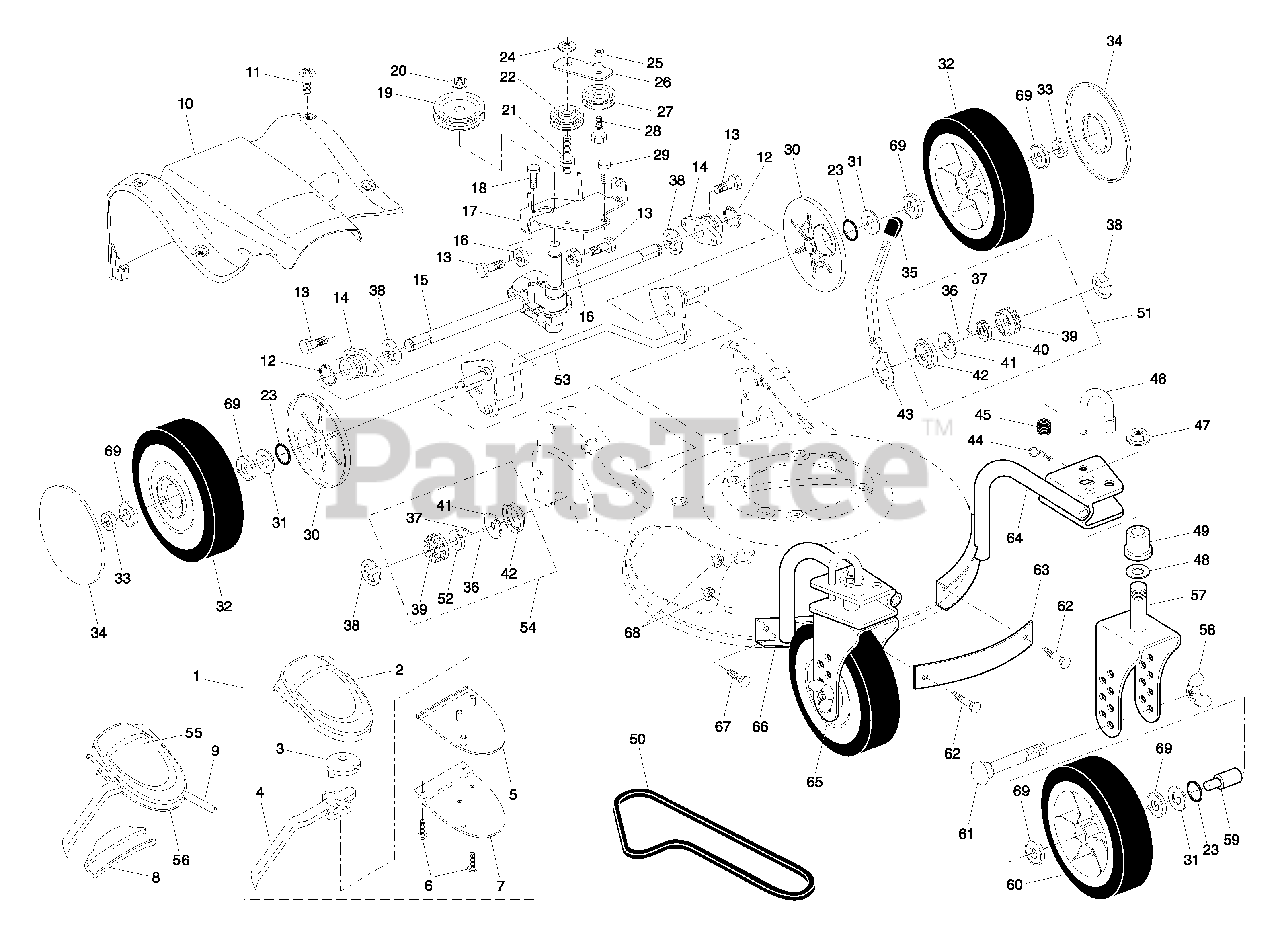

55 C21 HV (954223890-A) - Husqvarna Walk-Behind Mower (2005) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Electrolux/AYP 532185312

Drive Control Assembly, Complete
(Superseded to 532196577)

Note: (Consists of Key Numbers 2 through 7

$

$

Not available

2

Electrolux/AYP 532188279

Cover, Drive Control, Top
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532187353

Pulley, Drive Control

$9.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532190283

Lever, Drive Control (blue)
(Superseded to 532190037)

$14.99

$

In Stock, only 4 left!

0

5

Electrolux/AYP 532188278

Cover, Drive Control, Bottom
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532181698

Screw, Torx Head #8-5/8

$7.49

$

In Stock, Qty 6

0

7

Electrolux/AYP 532187097

Bracket, Mounting, Drive Control
(Superseded to 532184212)

$

$

Not available

8

Electrolux/AYP 532186297

Cap, Drive Control, Bottom

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532188280

Cable, Drive Control
(Superseded to 532196577)

$

$

Not available

10

Electrolux/AYP 532190565

Cover Assembly, Drive
(Superseded to 532188356)

$31.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532184571

Screw, Hex Washer Head 1/4-20 x 1/2
(Superseded to 532194188)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 812000012

Ring, Retaining
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532183450

Screw
(Superseded to 532194186)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532187120

Bearing / Axle Support

$

$

Not available

15

Electrolux/AYP 532183699

Gear Case Assembly
(Superseded to 532414975)

Note: (See Breakdown)

$113.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532132004

Nut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532187093

Bracket, Gear Case / Drive Pulley
(Superseded to 532183855)

$15.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 817541011

Screw

$

$

Not available

19

Electrolux/AYP 532184749

Pulley, Drive
(Superseded to 532194128)

$20.99

$

In Stock, Qty 10

0

20

Electrolux/AYP 532132010

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 532188611

Bolt, Idler

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532184543

Pulley Assembly, V-Groove
(Superseded to 532195326)

$34.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532188152

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532145212

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 873930500

Nut, Hex, Lock

$7.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 532187098

Idler Arm
(Superseded to 532183700)

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 532166043

Pulley, Idler

$31.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532160829

Bolt, Hex Head, Shoulder

$7.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 817060410

Screw 1/4-20 x 1/16

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532183457

Cover, Dust, Wheel

$

$

Not available

31

Electrolux/AYP 532088348

Washer, Flat 3/8

$7.49

$

In Stock, Qty 6

0

32

Electrolux/AYP 532188631

Wheel Assembly, Rear 9 x 2-1/4
(Superseded to 532192228)

$79.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 532083923

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532183695

Hubcap
(Superseded to 532183442)

$5.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 532185994

Knob

$15.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 532188291

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

37

Electrolux/AYP 532175098

Pawl

$6.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532175103

Gear

$

$

Not available

40

Electrolux/AYP 532175105

Retainer, Drive, LH

$

$

Not available

41

Electrolux/AYP 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

42

Electrolux/AYP 532184172

Seal, Friction

$7.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532190520

Lever, Selector, Wheel Height, Rear
(Superseded to 532188508)

$9.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532065322

Hairpin

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532185051

Spring

$5.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532185054

Rod, Lock

$10.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 532187247

Nut, Hex, Flangelock

$2.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 532188906

Washer, Flat 1/2

$7.99

$

In Stock, only 2 left!

0

49

Electrolux/AYP 532188435

Bushing
(Superseded to 532195996)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532183688

Belt, Drive

$

$

Not available

51

Electrolux/AYP 532188331

Pinion Assembly, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 532175102

Retainer, Drive, RH

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532187091

Rear Axle Assembly
(Superseded to 532183698)

$

$

Not available

54

Electrolux/AYP 532188330

Pinion Assembly, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 532189074

Decal, Drive Control

$

$

Not available

56

Electrolux/AYP 532185913

Decal, Drive Control Adjustment (bottom)

$5.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 532188682

Bracket, Caster Wheel, LH
(Superseded to 532188661)

$

$

Not available

58

Electrolux/AYP 532187248

Wing Nut 5/16-18

$9.49

$

In Stock, only 1 left!

0

59

Electrolux/AYP 532185111

Spacer

$4.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532186440

Wheel Assembly, Front 9 x 2
(Superseded to 532192231)

$46.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 872270528

Bolt, Carriage 5/16-18 x 3-1/2

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532187474

Bolt, Carriage 5/16-18 x 7/8

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532188475

Strap, Front

$27.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532188681

Support Tube Assembly, LH
(Superseded to 532188488)

$125.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 532188684

Bracket, Caster Wheel, RH
(Superseded to 532188662)

$

$

Not available

66

Electrolux/AYP 532188683

Support Tube Assembly, RH
(Superseded to 532188493)

$72.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532187555

Bolt, Carriage 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532187263

Nut, Hex 5/16
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

69

Electrolux/AYP 532751068

Bearing, Ball (Wheel)

$8.99

$

Usually ships in 3-10 days

0
