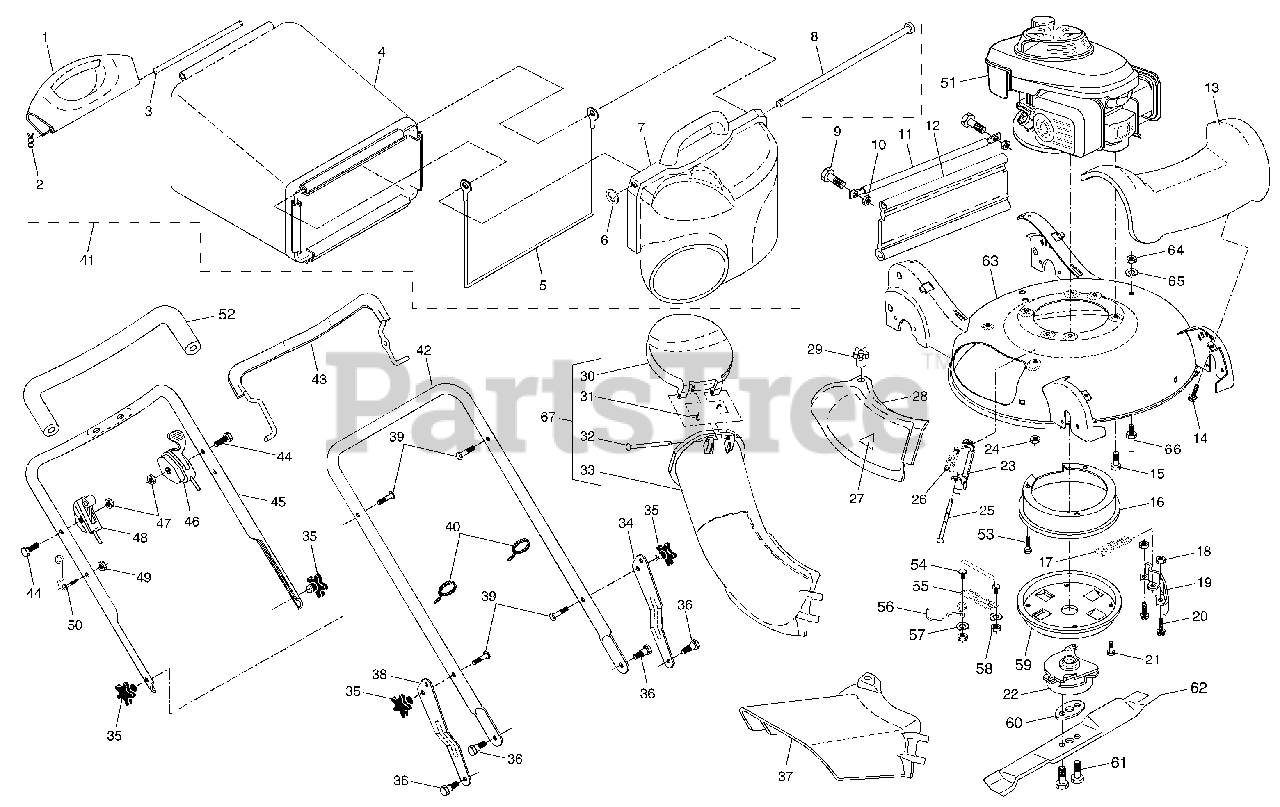

55 B21 HV (954223227-B) - Husqvarna Walk-Behind Mower (2003-12) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532190582

Handle, Grassbag, Rear

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

Hairpin Cotter

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

Rod, Rear Handle, Grassbag

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532190577

Grassbag
(Superseded to 532410670)

$93.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532188506

Frame, Grassbag

$27.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-Ring

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 532190581

Door, Grassbag
(Superseded to 532188498)

$50.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

Rod, Pivot

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140405

Screw

$7.49

$

In Stock, Qty 8

0

10

Husqvarna 873800400

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532190692

Tube, Rear Skirt
(Superseded to 532188359)

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532190566

Skirt, Rear
(Superseded to 532188503)

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532190519

Cover, Front
(Superseded to 586531501)

$

$

Not available

14

Husqvarna 532184572

Screw, Hex Washer Head
(Superseded to 532194189)

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532150406

Bolt, Engine Mounting

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532190930

Belt Cover, Upper

$27.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532180393

Spring

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 873900400

Nut, Hex
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

19

Husqvarna 532190929

Brake, Clutch
(Superseded to 532188525)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 874780410

Bolt, Hex Head
(Superseded to 539990072)

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 532750097

Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

22

Blade Brake / Clutch

Note: (For service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

23

Husqvarna 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

25

Husqvarna 532183445

Rod, Hinge

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

Spring, Mulcher Door

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 532107339

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

Mulcher Door
(Superseded to 532188507)

$

$

Not available

29

Husqvarna 532183447

Knob

$

$

Not available

30

Husqvarna 532190580

Door, Discharge Chute

$17.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

Spring, Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

Rod, Door, Discharge Chute

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

34

Husqvarna 532190619

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

Knob, Star

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532183465

Bolt, Shoulder
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 532185996

Deflector, Discharge

$

$

Not available

38

Husqvarna 532190621

Adjustment Bracket, Lower Handle, RH

$

$

Not available

39

Husqvarna 532184568

Bolt, Handle
(Superseded to 532191575)

$6.99

$

In Stock, only 2 left!

0

40

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532190579

Grassbag Assembly, Complete
(Superseded to 532431754)

Note: (Consists of Key Numbers 1-8)

$182.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

Handle Assembly, Lower

$31.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186299

Bail, Control
(Superseded to 583754701)

$42.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532187499

Screw

$

$

Not available

45

Husqvarna 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532183707

Blade Brake Control
(Superseded to 532196541)

$87.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532184569

Nut, Hex

$

$

Not available

48

Husqvarna 532187636

Throttle Control
(Superseded to 532192081)

$72.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532184569

Nut, Hex

$

$

Not available

50

Husqvarna 532188501

Rope Guide

$15.99

$

Usually ships in 3-10 days

0

51

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

52

Husqvarna 532182748

Grip, Foam

$

$

Not available

53

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532180188

Link, Torque

$15.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532180394

Spring

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532188545

Belt Keeper

$15.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532053998

Washer, Lock

$

$

Not available

58

Husqvarna 873510600

Nut, Hex

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532190931

Belt Cover, Lower
(Superseded to 532188546)

$15.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532185046

Spacer, Blade

$17.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532186291

Bolt, Hex Head

$6.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532180459

Blade, 21"

$27.99

$

In Stock, only 1 left!

0

63

Husqvarna 532190682

Kit, Housing

$132.99

$

Usually ships in 3-10 days

0

64

Husqvarna 873900600

Nut, Hex 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532850263

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

66

Husqvarna 532182131

Stud, Belt Guide

$17.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532189014

Discharge Chute Assembly, Complete

Note: (Consists of Key Numbers 30-33)

$

$

Not available

Husqvarna 532162300

Decal, Warning
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532189056

Owner's Manual

$4.99

$

Usually ships in 3-10 days

0
