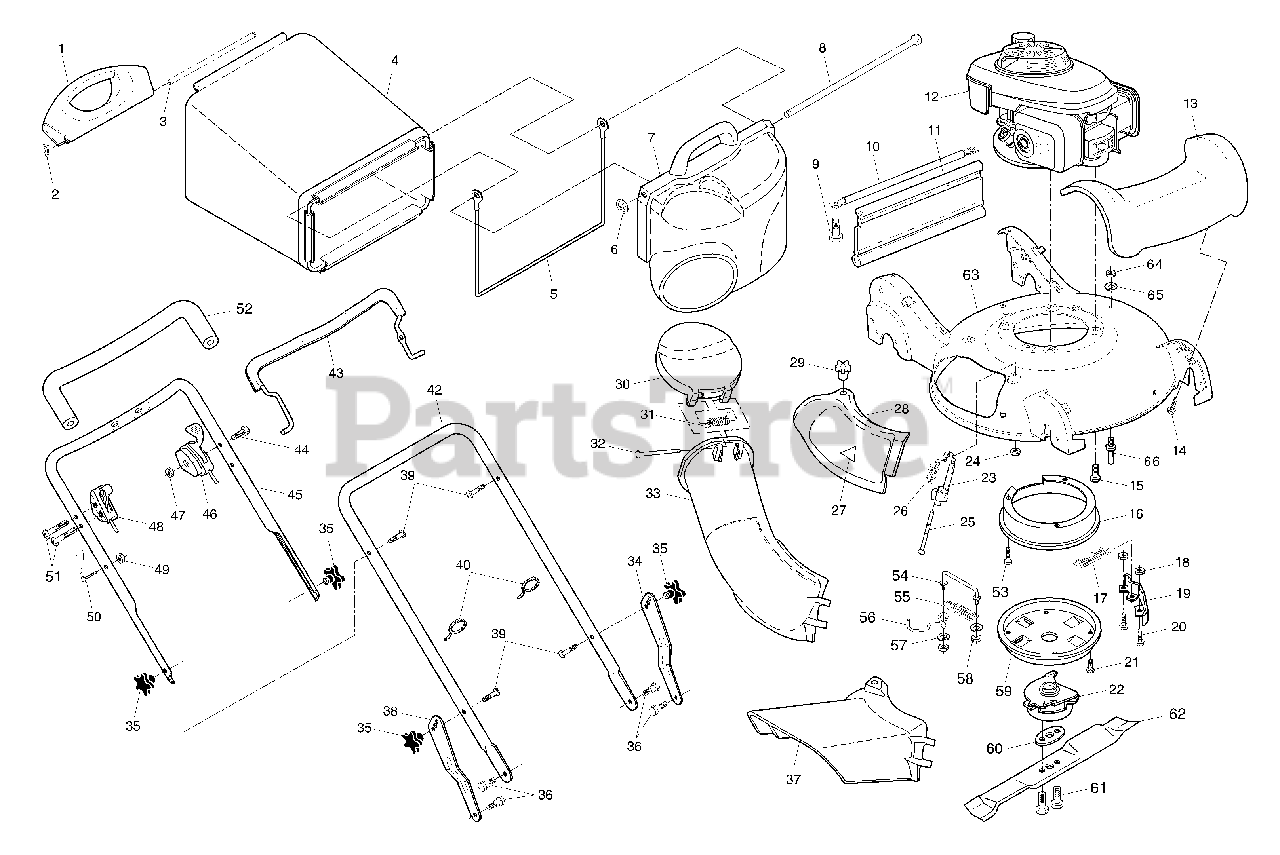

55 B21 HV (954223227-A) - Husqvarna Walk-Behind Mower (2003-09) Handle & Bag Assembly Parts Diagram

Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title
1

Husqvarna 532186003

Handle, Grassbag, Rear
(Superseded to 532188505)

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

Hairpin Cotter

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

Rod, Rear Handle, Grassbag

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532185228

Grassbag
(Superseded to 532410670)

$93.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532183481

Frame, Grassbag
(Superseded to 532188506)

$27.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 532186002

Door, Grassbag
(Superseded to 532188500)

$50.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

Rod, Pivot

$15.99

$

Usually ships in 3-10 days

0

Husqvarna 532186302

Grassbag Assembly, Complete
(Superseded to 532431754)

Note: (Consists of Key Numbers 1-8)

$182.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532184331

Tube, Rear Skirt

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532183463

Skirt, Rear

$

$

Not available

12

Engine, Honda, Model Number GCV160

Note: (Order parts from Engine Manufacturer)

$

$

Not available

13

Husqvarna 532183770

Cover, Front
(Superseded to 586531501)

$

$

Not available

14

Husqvarna 532184572

Screw, Hex Washer Head
(Superseded to 532194189)

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532150406

Bolt, Engine Mounting

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532180459

Belt Cover, Upper

$27.99

$

In Stock, only 1 left!

0

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 873900400

Nut, Hex
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

19

Husqvarna 532187492

Brake, Clutch

$

$

Not available

20

Husqvarna 874780410

Bolt, Hex Head
(Superseded to 539990072)

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 532750097

Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

22

Blade Brake / Clutch

Note: (Order parts from Engine Manufacturer)

$

$

Not available

23

Husqvarna 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

25

Husqvarna 532183445

Rod, Hinge

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

Spring, Mulcher Door

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 532107339

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532185995

Mulcher Door
(Superseded to 532188010)

$

$

Not available

$

$

Not available

30

Husqvarna 532186001

Door, Discharge Chute
(Superseded to 532188499)

$17.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

Spring, Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

Rod, Door, Discharge Chute

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532186000

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

33

Husqvarna 532186301

Discharge Chute Assembly, Complete
(Superseded to 532189014)

Note: (Consists of Key Numbers 30-33)

$

$

Not available

34

Husqvarna 532187425

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

Knob, Star

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532183465

Bolt, Shoulder
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 532185996

Deflector, Discharge

$

$

Not available

38

Husqvarna 532187426

Adjustment Bracket, Lower Handle, RH
(Superseded to 532187064)

$

$

Not available

39

Husqvarna 532184568

Bolt, Handle
(Superseded to 532191575)

$6.99

$

In Stock, only 2 left!

0

40

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

Handle Assembly, Lower

$31.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186299

Bail, Control
(Superseded to 583754701)

$42.99

$

Usually ships in 3-10 days

0

$

$

Not available

45

Husqvarna 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532183707

Blade Brake Control
(Superseded to 532196541)

$87.99

$

Usually ships in 3-10 days

0

47

$

$

Not available

48

Husqvarna 532185779

Throttle Control
(Superseded to 532192077)

$80.99

$

Usually ships in 3-10 days

0

49

$

$

Not available

50

Husqvarna 532183469

Rope Guide

$

$

Not available

51

Husqvarna 532183449

Screw
(Superseded to 817490420)

$1.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532182748

Grip, Foam

$

$

Not available

53

Husqvarna 532150408

Bolt, Engine

$21.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532180188

Link, Torque

$15.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532186130

Belt Keeper

$

$

Not available

57

Husqvarna 532053998

Washer, Lock

$

$

Not available

58

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532183610

Belt Cover, Lower

$11.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532185046

Spacer, Blade

$17.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532186291

Bolt, Hex Head

$6.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532180459

Blade, 21"

$27.99

$

In Stock, only 1 left!

0

63

Husqvarna 532186957

Kit, Housing

$

$

Not available

64

Husqvarna 873900600

Nut, Hex 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532850263

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

66

Husqvarna 532182131

Stud, Belt Guide

$17.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Decal, Warning
(Superseded to 530402152)

Note: (Not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532186304

Owner's Manual

$10.99

$

Usually ships in 3-10 days

0
