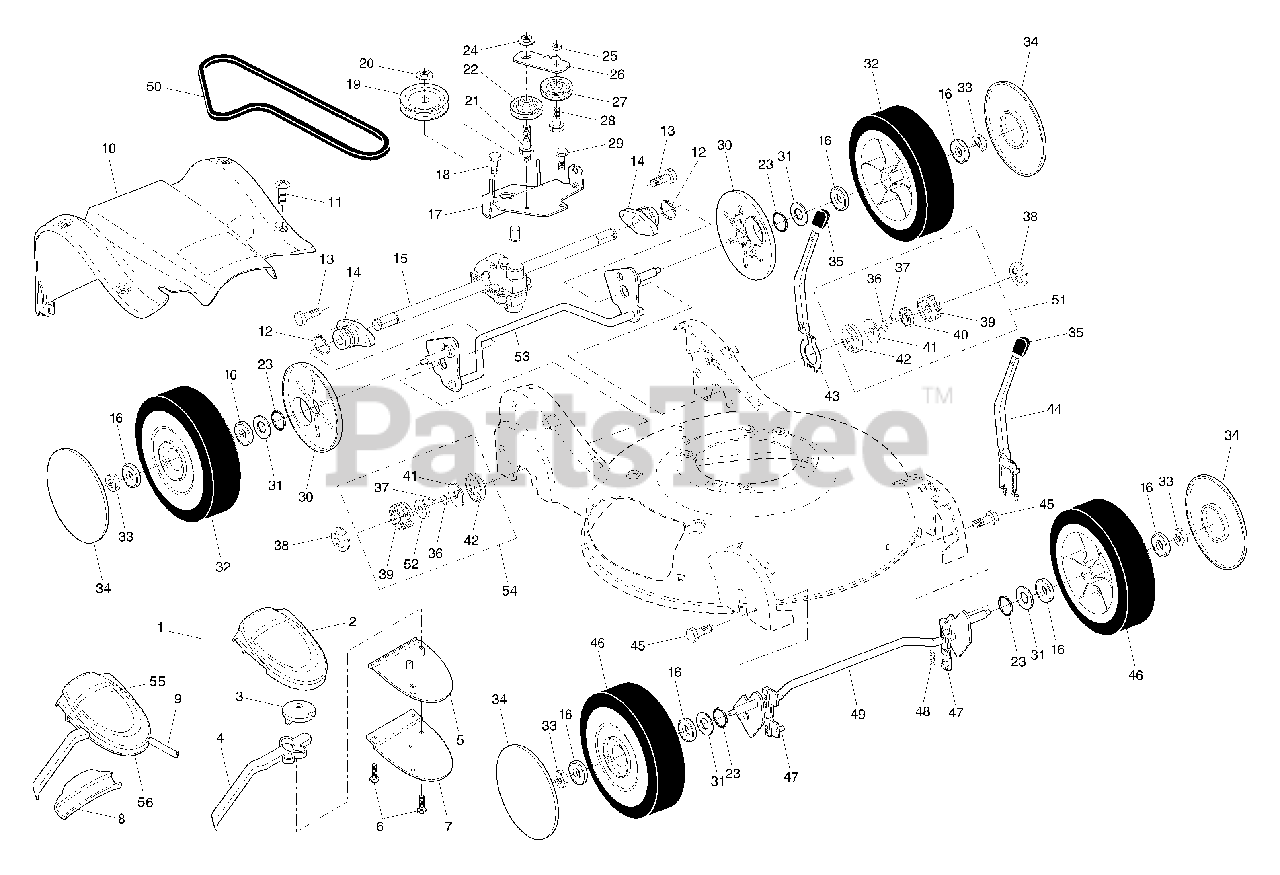

55 B21 HV (954223227-A) - Husqvarna Walk-Behind Mower (2003-09) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532185312

Drive Control Assembly, Complete
(Superseded to 532196577)

Note: (Consists of Key Numbers 2 through 7)

$

$

Not available

2

Husqvarna 532188279

Cover, Drive Control, Top
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

Pulley, Drive Control

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190283

Lever, Drive Control (blue)
(Superseded to 532425662)

$14.99

$

In Stock, only 4 left!

0

5

Husqvarna 532188278

Cover, Drive Control, Bottom
(Superseded to 532197168)

$54.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw, Torx Head #8-5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532187097

Bracket, Mounting, Drive Control
(Superseded to 532400723)

$

$

Not available

8

Husqvarna 532186297

Cap, Drive Control, Bottom

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532188280

Cable, Drive Control
(Superseded to 532196577)

$

$

Not available

10

Husqvarna 532185997

Cover Assembly, Drive

$

$

Not available

11

Husqvarna 532184571

Screw
(Superseded to 532194188)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 812000012

Ring, Retaining
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532183450

Screw
(Superseded to 532194186)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532187120

Bearing / Axle Support

$

$

Not available

15

Husqvarna 532183699

Gear Case Assembly
(Superseded to 532414975)

Note: (See Breakdown)

$113.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532751068

Bearing, Ball (Wheel)

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532187093

Bracket, Gear Case / Drive Pulley
(Superseded to 532408005)

$15.99

$

In Stock, only 1 left!

0

18

Husqvarna 817541011

Screw

$

$

Not available

19

Husqvarna 532184749

Pulley, Drive
(Superseded to 532194128)

$20.99

$

In Stock, Qty 10

0

20

Husqvarna 532132010

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532183701

Bolt, Idler

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532184543

Pulley Assembly, V-Groove
(Superseded to 532195326)

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532188152

O-Ring
(Superseded to 532197480)

$7.49

$

In Stock, only 1 left!

0

24

Husqvarna 532145212

Nut, Hex, Flangelock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 873930500

Nut, Hex, Lock

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532187098

Idler Arm
(Superseded to 532195327)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532166043

Pulley, Idler

$31.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532160829

Bolt, Hex Head, Shoulder

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 817060410

Screw 1/4-20 x 1/16

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532183457

Cover, Dust, Wheel

$

$

Not available

31

Husqvarna 532088348

Washer, Flat 3/8

$7.49

$

In Stock, Qty 5

0

32

Husqvarna 532184368

Wheel Assembly, Rear 9 x 2-1/4
(Superseded to 532192622)

$79.99

$

In Stock, only 2 left!

0

33

Husqvarna 532083923

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532183695

Hubcap
(Superseded to 532183442)

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 532185994

Knob

$15.99

$

In Stock, only 3 left!

0

36

Husqvarna 532188291

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

37

Husqvarna 532175098

Pawl

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532175103

Pinion, Gear

$

$

Not available

40

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

41

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 532184172

Seal, Friction

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532187092

Lever, Selector, Wheel Height, Rear
(Superseded to 532188508)

$9.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532187090

Lever, Selector, Wheel Height, Front
(Superseded to 532188509)

$

$

Not available

45

Husqvarna 532163409

Screw

$7.49

$

In Stock, Qty 6

0

46

Husqvarna 532184369

Wheel Assembly, Front 9 x 2-1/4
(Superseded to 532192232)

$

$

Not available

47

Husqvarna 532183438

Bushing, Front Axle

$7.49

$

In Stock, only 1 left!

0

48

Husqvarna 532169675

Retainer, Hairpin Cotter

$7.49

$

In Stock, only 2 left!

0

49

Husqvarna 532187089

Torque Shaft Assembly, Front
(Superseded to 532192431)

$46.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532183688

Belt, Drive

$

$

Not available

51

Husqvarna 532188331

Pinion Assembly, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

52

Husqvarna 532175102

Retainer, Drive, RH

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532187091

Rear Axle Assembly
(Superseded to 532183698)

$

$

Not available

54

Husqvarna 532188330

Pinion Assembly, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

55

Husqvarna 532187356

Decal, Drive Control

$6.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532185913

Decal, Drive Control Adjustment (bottom)

$5.99

$

Usually ships in 3-10 days

0
