55-8450 - Toro Hour Meter Kit for Groundsmaster 117 IGNITION-KOHLER ENGINE MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Hour Meter Kit for Groundsmaster 117

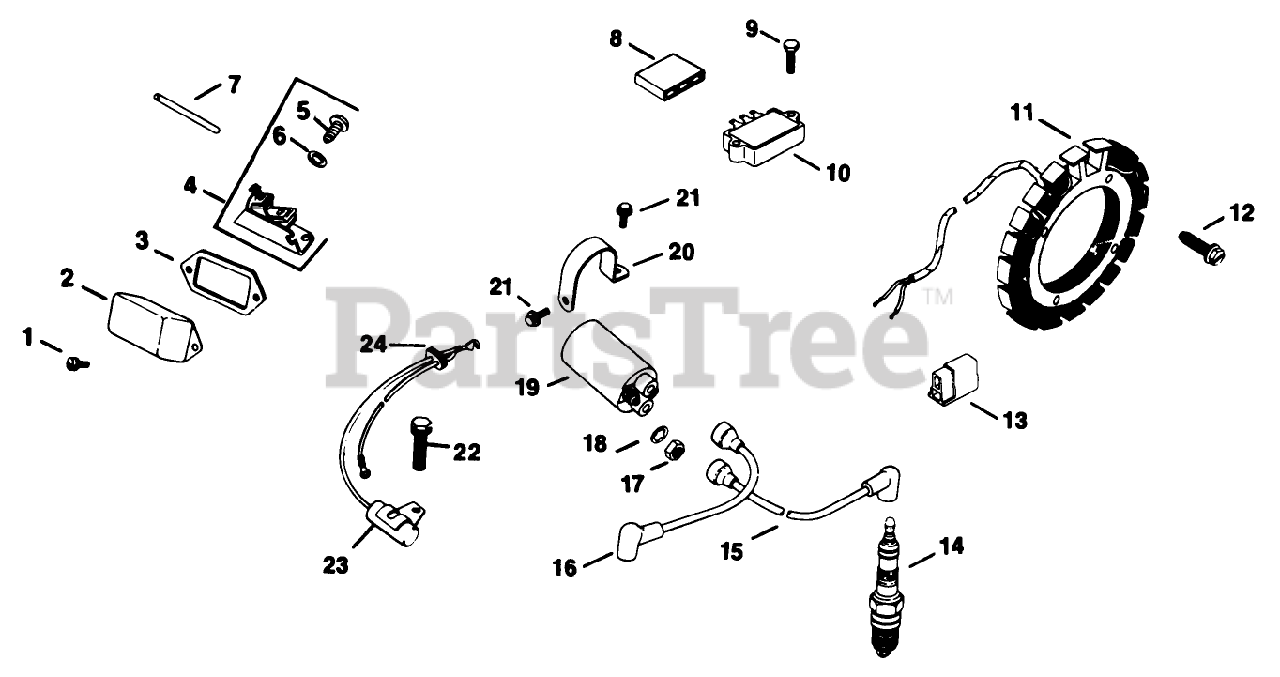

IGNITION-KOHLER ENGINE MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title

1

Kohler X-131-1

Screw,
(Superseded to X-131-1-S)

$

$

Not available

2

Toro 51_096_02

Cover-Breaker

$

$

Currently unavailable

3

Toro 52_041_11

Gasket-Cover

$

$

Currently unavailable

4

Toro 47_150_03

Breaker

$

$

Currently unavailable

5

Kohler X-141-5

Screw
(Superseded to X-141-5-S)

$3.99

$

Usually ships in 2-5 days

0

6

Kohler X-25-65

Washer Plain
(Superseded to X-25-65-S)

$3.99

$

Usually ships in 2-5 days

0

7

Toro 52_411_05

Rod-Breaker Push

$

$

Currently unavailable

8

Kohler 236602

Connector
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

9

Kohler X-5-3

Screw-H.C.
(Superseded to X-5-3-S)

$

$

Not available

10

Toro 41_403_05

Regulator

$

$

Currently unavailable

11

Kohler 237878

Stator
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 8

0

12

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

13

Toro 48_155_02

Connector

$

$

Currently unavailable

14

Toro 51_132_02

Spark Plug

$

$

Currently unavailable

15

Toro 52_348_04

Lead-Hi-Tension 19"

$

$

Currently unavailable

16

Toro 52_348_03

Lead-Hi-Tension 11"

$

$

Currently unavailable

17

Kohler X-70-8

Nut-Hex

$

$

Not available

18

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

19

Toro 52_145_03

Coil-Ignition

$

$

Currently unavailable

20

Toro 52_445_03

Strap-Coil

$

$

Currently unavailable

21

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

22

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

23

Toro 52_147_01

Condenser

$

$

Currently unavailable

24

Kohler 220297

Grommet
(Superseded to 220297-S)

$6.49

$

Usually ships in 2-5 days

0

Toro 25_518_05

Lead-Black

Note: Not illustrated

$

$

Currently unavailable

Toro 25_518_09

Lead, Coil (16"-14 Ga. insulated barrel eyelet and uninsulated push on tab terminals)

Note: Not illustrated

$

$

Currently unavailable
